Modern MTB Design
Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It €™s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable

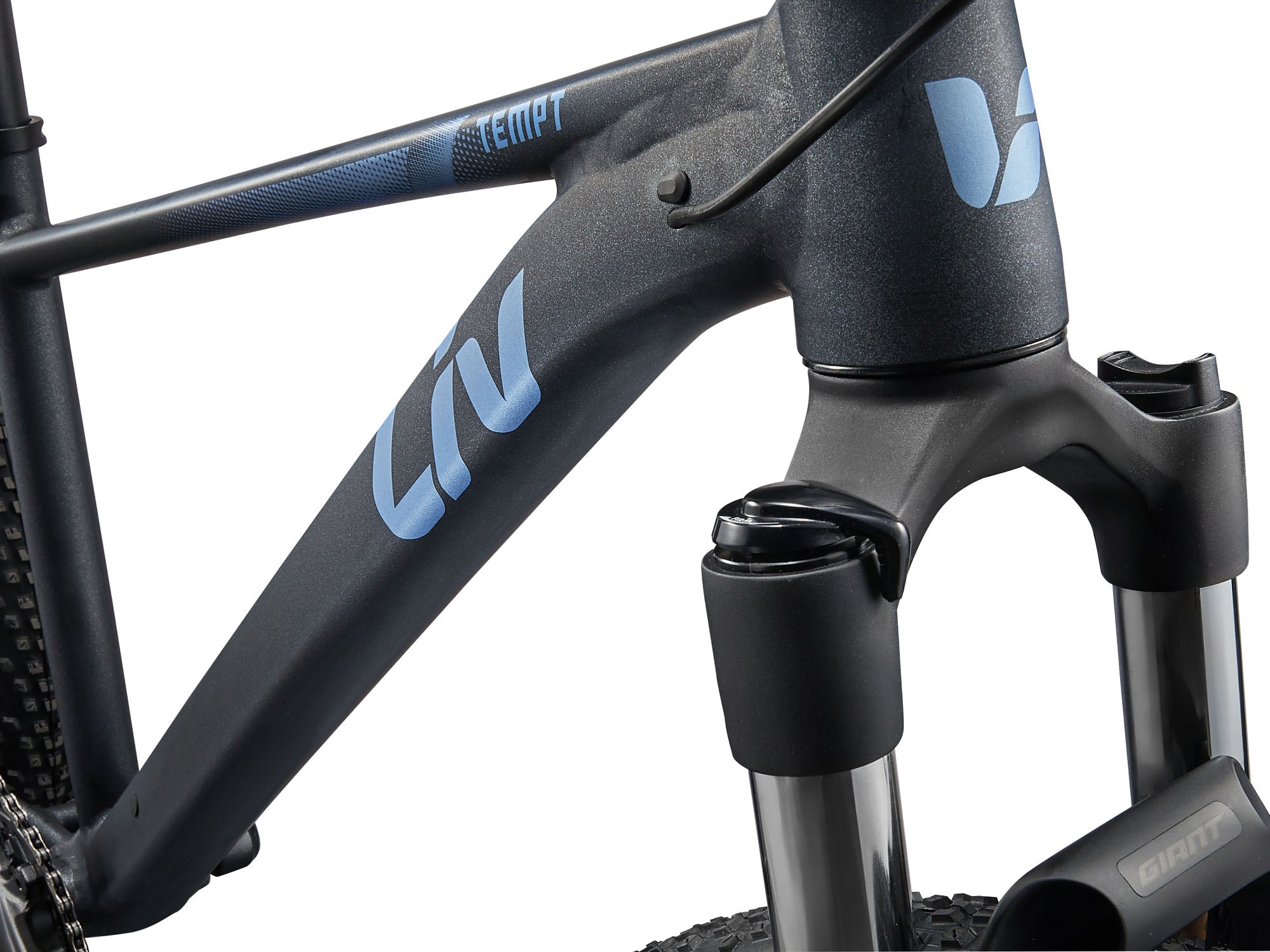

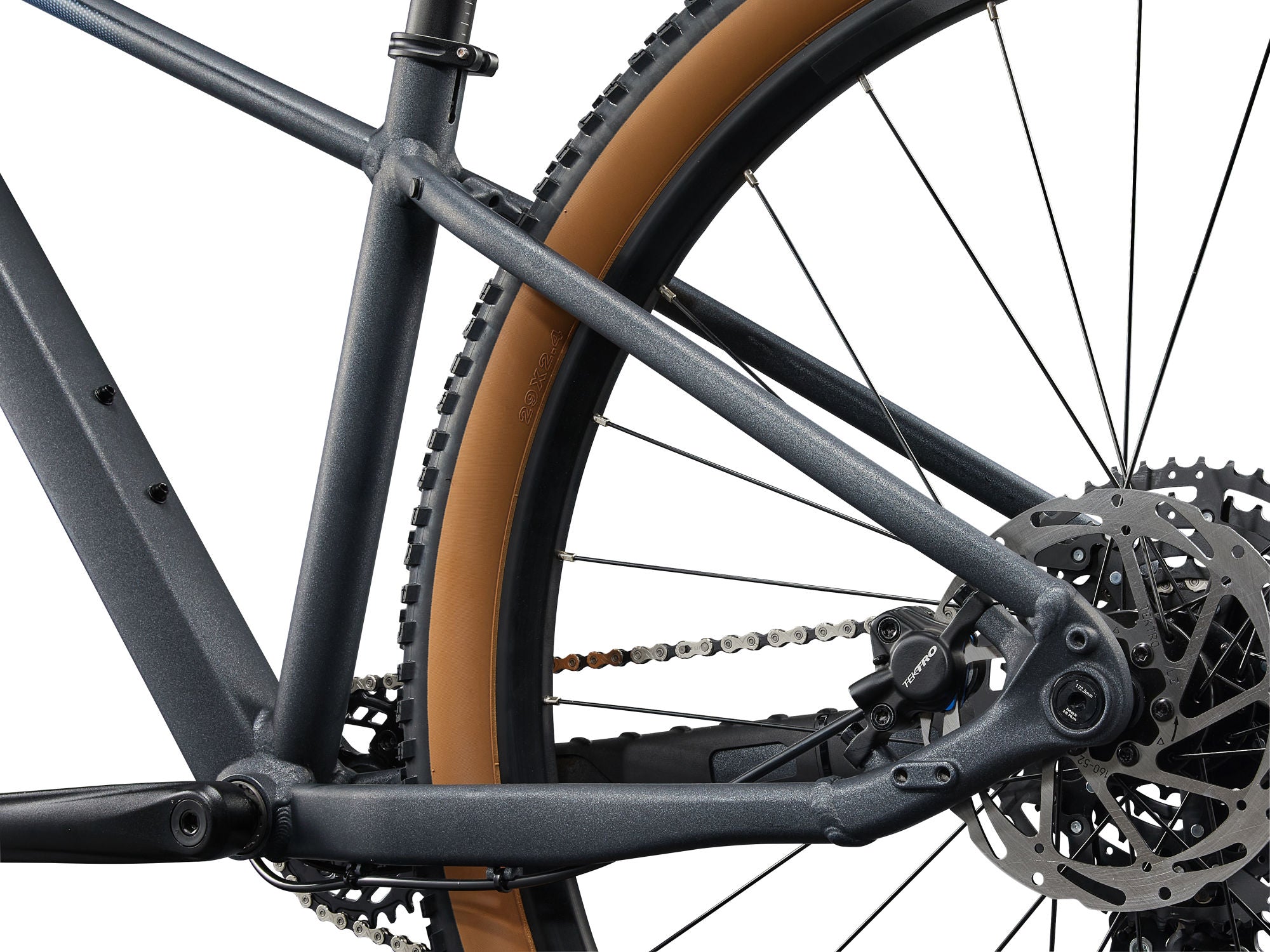

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Frameset | ALUXX-grade aluminium, disc |
---|---|

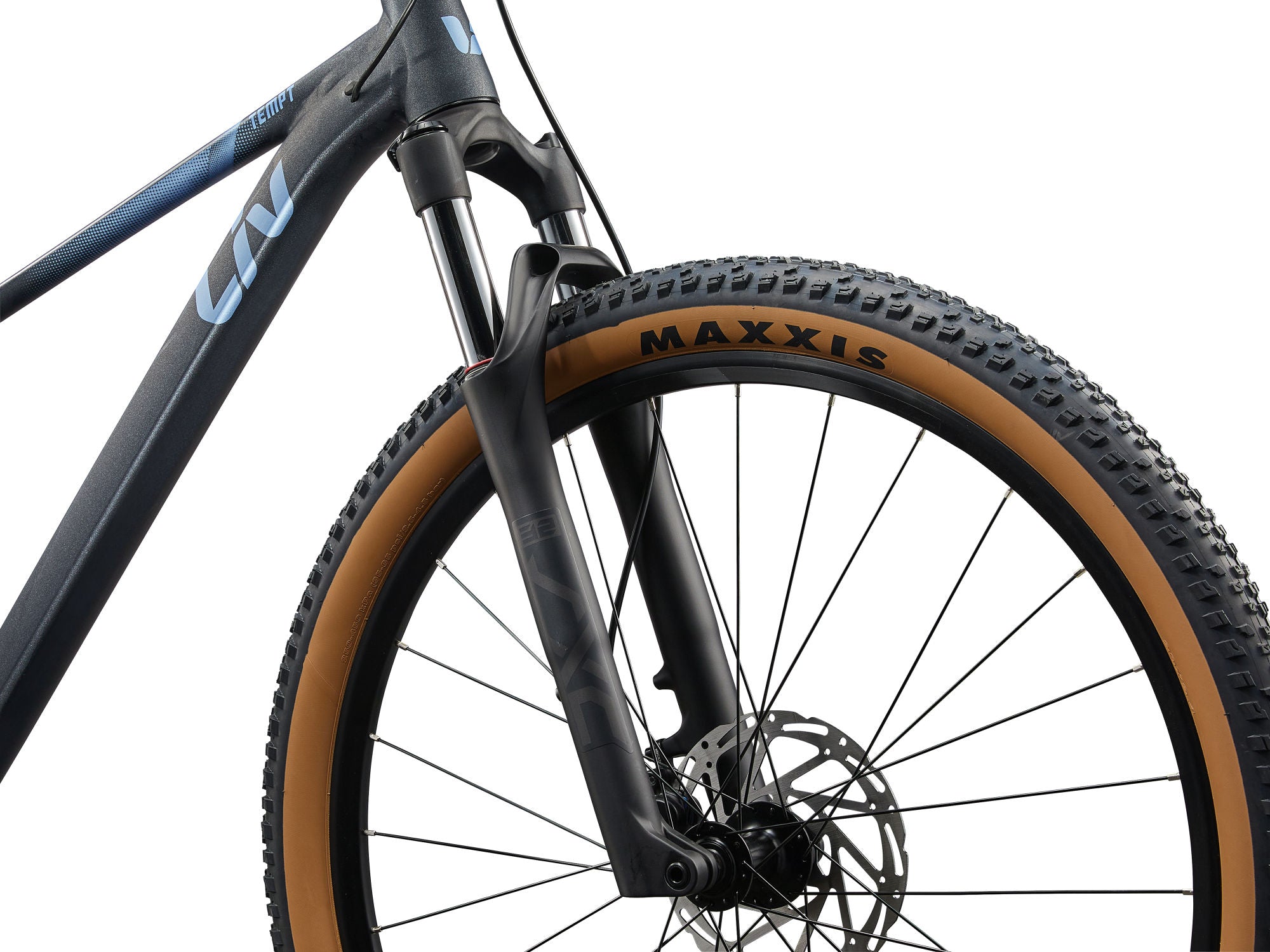

Fork | SXC32-3 RCL, coil sprung, hydraulic lockout, tapered aluminium steerer, 15x110 thru axle XS&S: 80mm travel (27.5) S-L:100mm travel (29) |
Brakes | Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm |
Tyres | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead |

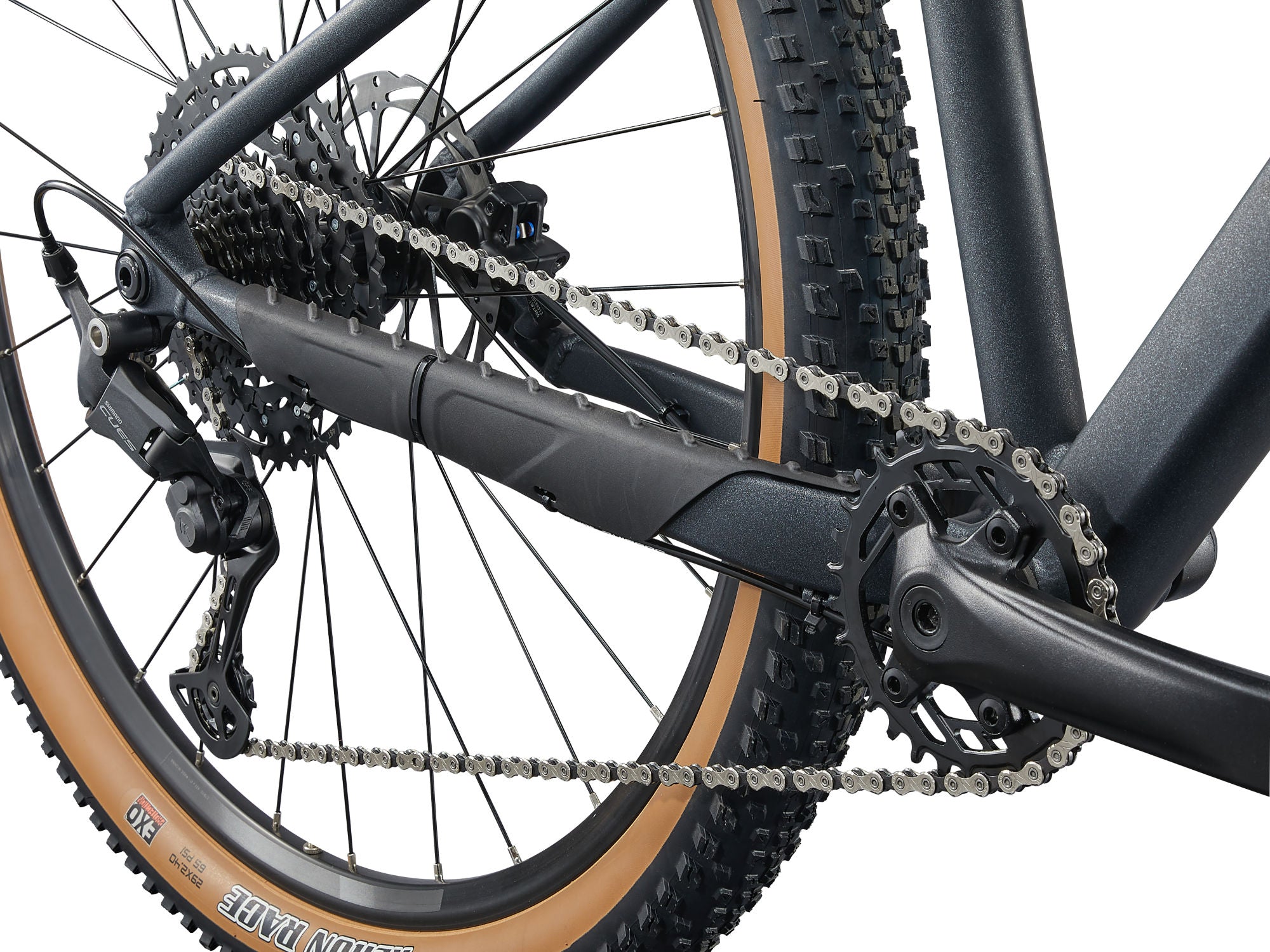

Rear mech | Shimano CUES RD-U6000 |
Wheelset | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
Stem | Giant Sport, 7-degree rise |
Handlebar | Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) S-L: 750mm (29) |
Shifters | Shimano CUES SL-6000, 1x10 |
Cassette | Shimano CUES CS-LG300, 11x48 |
Chain | KMC X11 |
Chainset | ProWheel Charm, 32t (27.5) or 30t (29) |
Bottom bracket | cartridge |
Saddle | Liv ErgoContact Trail |
Seat post | Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm M&L: 120mm drop x 400mm (29) |
