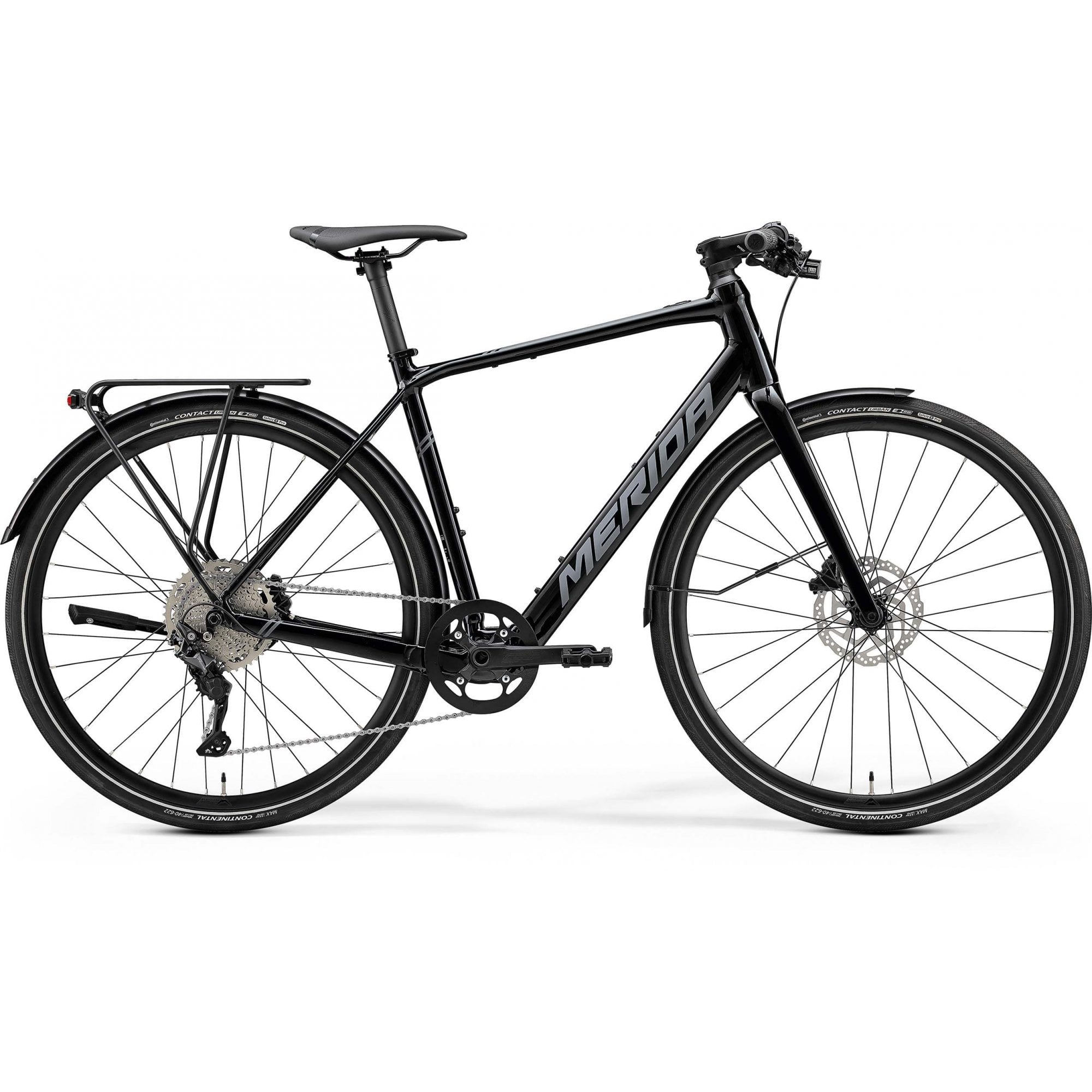

The regular Merida Speeder is a fast efficient commuting or leisure bike.
The addition of a power unit is almost unnoticeable when the bike's seen in profile. The smooth power delivery and drag free motor help preserve your energy, making commuting far more appealing.
MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube.
The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged.
The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.
Fully equipped with kickstand, mudguards, rack and Lezyne lights you are good to go in all weathers.
Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit nice and neat.
Frameset | Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
---|---|
Fork | Mission CX CF3; carbon. Max. tyre size: 700 x 42c |
Brakes | Hydraulic disc |
Tyres | Continental Contact Urban; 700 x 40c; wire bead - Continental Contact Urban; 700 x 40c; wire bead |
Rear mech | Shimano Deore RDM5120; SGS |
Wheelset | Merida Comp SL; 17mm inner rim width; 22mm depth; Aluminium |
Headset | VP-MH-P16 |
Stem | Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
Handlebar | Merida Expert CC; aluminium; 620mm wide; Flat |
Shifters | Shimano Deore M4100 |
Cassette | KMC e10s |
Chain | KMC e10s |
Chainset | Merida Comp TK; 42 tooth chainring with 165 mm-XS, 170 mm-S/M/L/XL crank |
Bottom bracket | EB2401 |
Saddle | Merida Comp SL; V-mount |
Seat post | Merida Expert CC; carbon; 30.9mm diameter; in-line |
Motor | 250 Wh |
Tape grips | Merida Comp EC |
