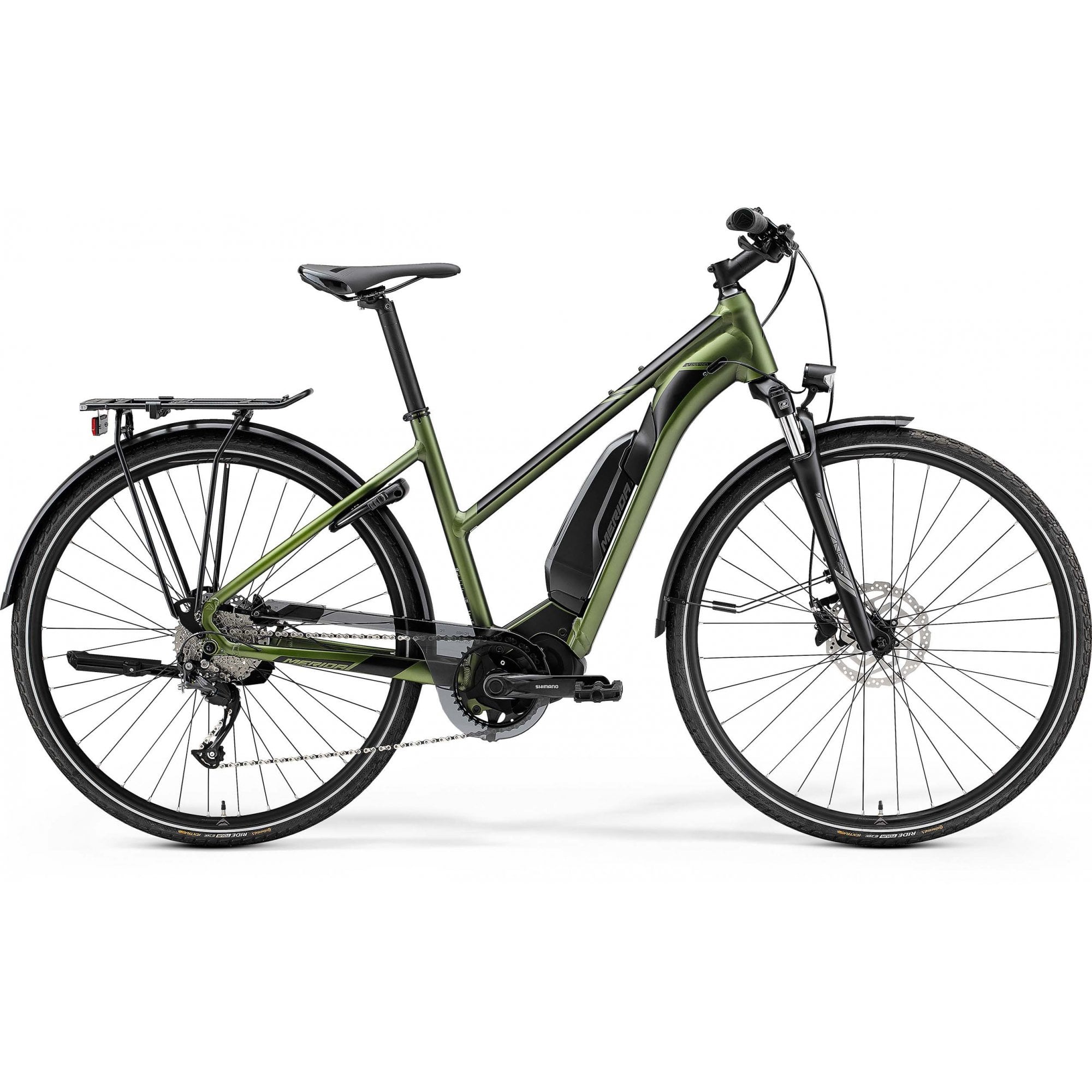

The perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you €™re ready to go from the moment you leave the shop.
The range includes options for men and women plus a low step through city version for added ease.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames with internally mounted batteries or a more economical, semi-integrated design such as this. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
Frameset | Lite- Hydroformed 6066 triple butted aluminium, external battery. 142 x 12mm axle standard. Internal cable routing via Smart Entry ports. Max. tyre size 700 x 42c with mudguards |
---|---|
Fork | Suntour NEX-PM-DS; Coil; 63mm travel. Max. tyre size: 700 x 48c |
Brakes | Hydraulic disc |
Tyres | Continental Ride Tour; 622x42; reflective stripe - Continental Ride Tour; 622x42; reflective stripe |
Rear mech | Shimano Altus M2000; SGS |
Wheelset | Merida Comp TK; 20mm inner rim width; Aluminium |
Headset | Merida 2346 Neck |
Stem | Merida Expert; aluminium; 31.8mm diameter; 17 degree rise - Stem length: 80mm (XS/S), 90mm (M), 100mm (L), 110mm (XL) |
Handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
Shifters | Shimano Altus rapidfire |
Cassette | KMC e9S |
Chain | KMC e9S |
Chainset | Shimano CRE50; 38 tooth chainring with Shimano FC-E5010; 170mm length crank and chainguard |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Expert TK; V-mount |
Seat post | Merida Expert; aluminium; 30.9mm diameter; 15mm lay back |
Motor | 418 Wh |
Tape grips | Merida Expert TK |
