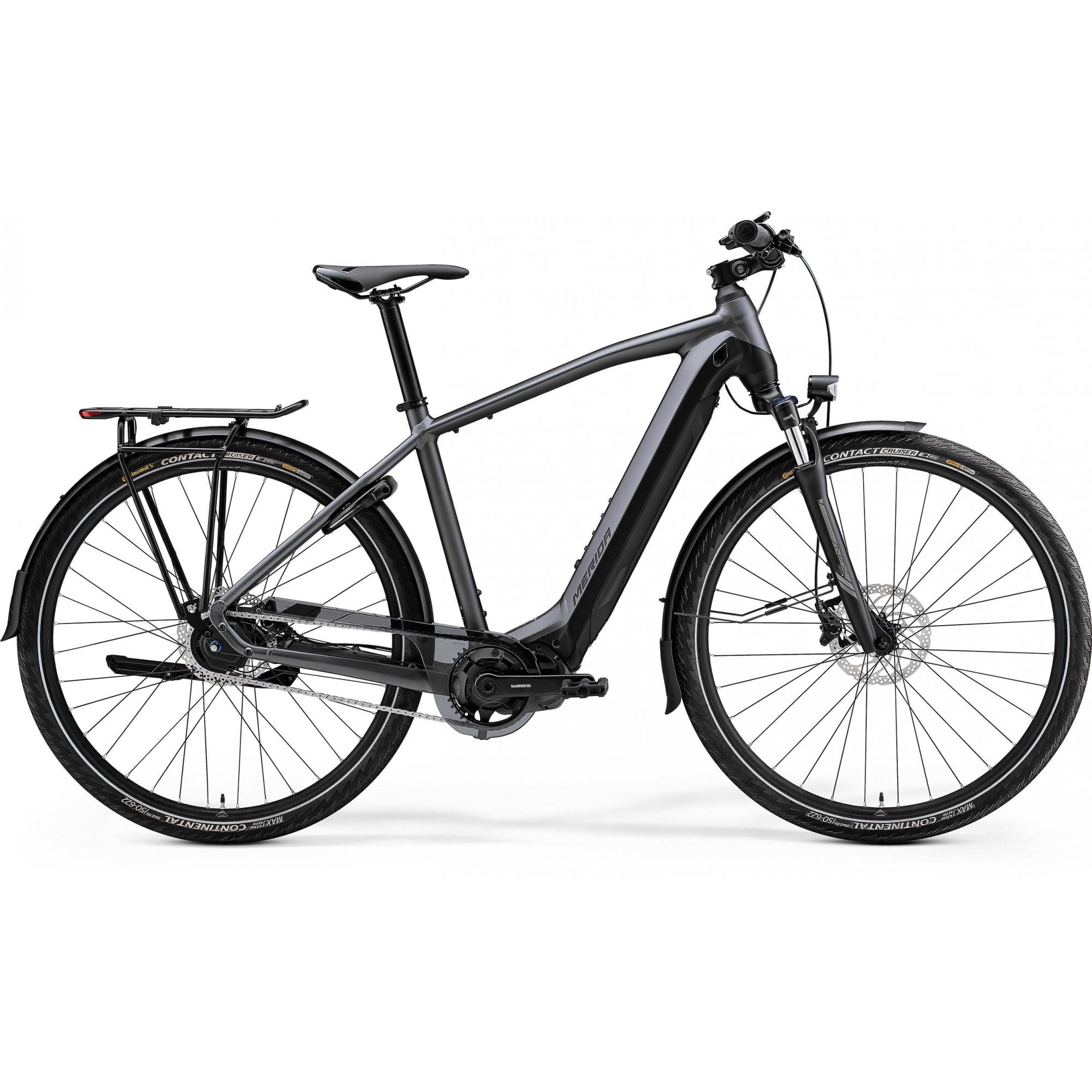

The perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you €™re ready to go from the moment you leave the shop.
The range includes options a low step through city version for added ease.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
Frameset | Lite II - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
---|---|
Fork | Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c |
Brakes | Hydraulic disc |
Tyres | Continental Contact Cruiser; 622-50; wire bead; reflective stripe - Continental Contact Cruiser; 622-50; wire bead; reflective stripe |
Rear mech | Not Applicable - Internal hub gears |
Wheelset | Merida Comp TK; 20mm inner rim width; Aluminium |
Headset | Merida-8156 |
Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (XS/S/M), 110mm (L/XL) |
Handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
Shifters | Shimano SW-E6010-R |
Cassette | KMC Z1eHX EPT |
Chain | KMC Z1eHX EPT |
Chainset | Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Expert TK; V-mount |
Seat post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
Motor | 630 Wh |
Tape grips | Merida Expert TK |
