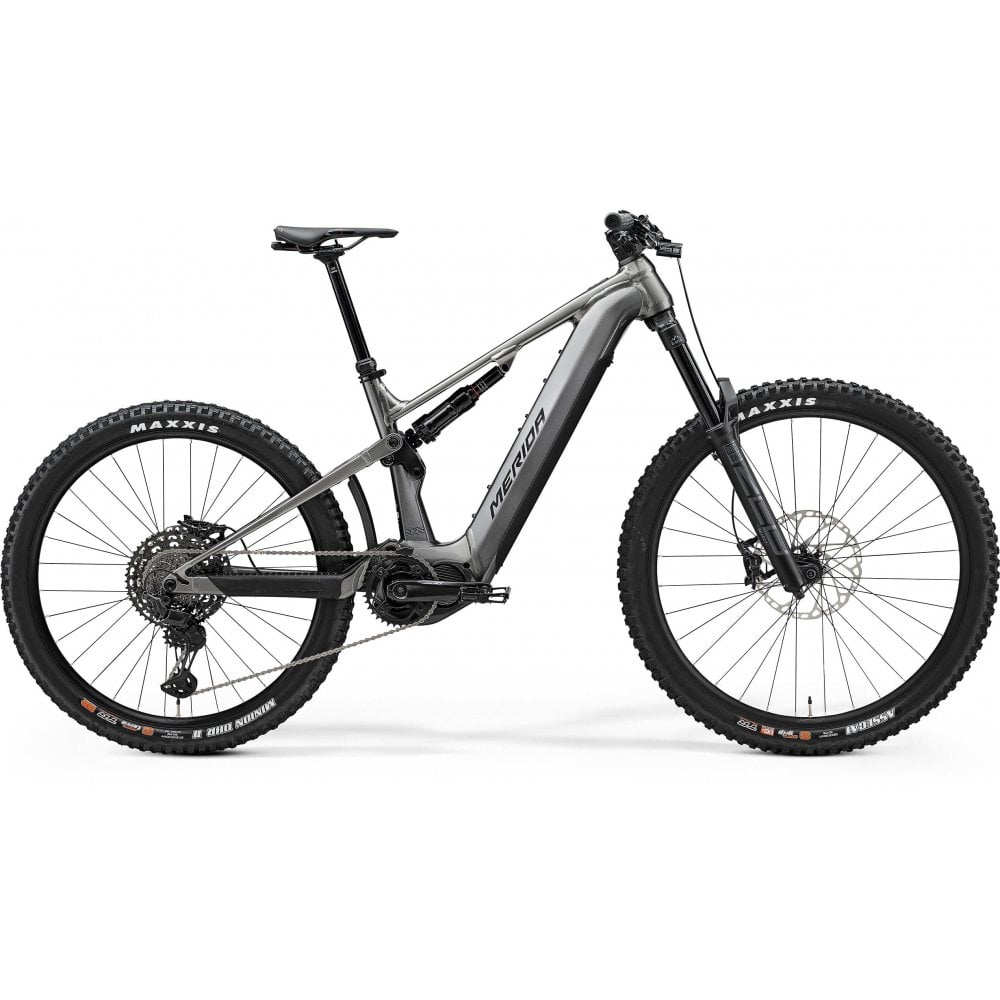

With the new eOne-Sixty, the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Our capable, uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
Frameset | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
---|---|
Fork | Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6" |
Brakes | Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
Tyres | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra |
Rear mech | Shimano XT RDM5130 LinkGlide 10 |
Wheelset | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
Headset | Acros ICR Merida external neck with Blocklock |
Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
Shifters | Shimano SL-MT500-L dropper lever with Shimano XT M5130-10 shifter |
Cassette | Shimano LG500 |
Chain | Shimano LG400; 11-43 teeth; 10 Speed |
Chainset | FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Comp SL; 28% recycled material; V-mount; including Merida minitool |
Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel |
Motor | Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm |
Battery | 750Wh |
Rear shock | Marzocchi Bomber Air; platform |
Tape grips | Merida Expert EC |
