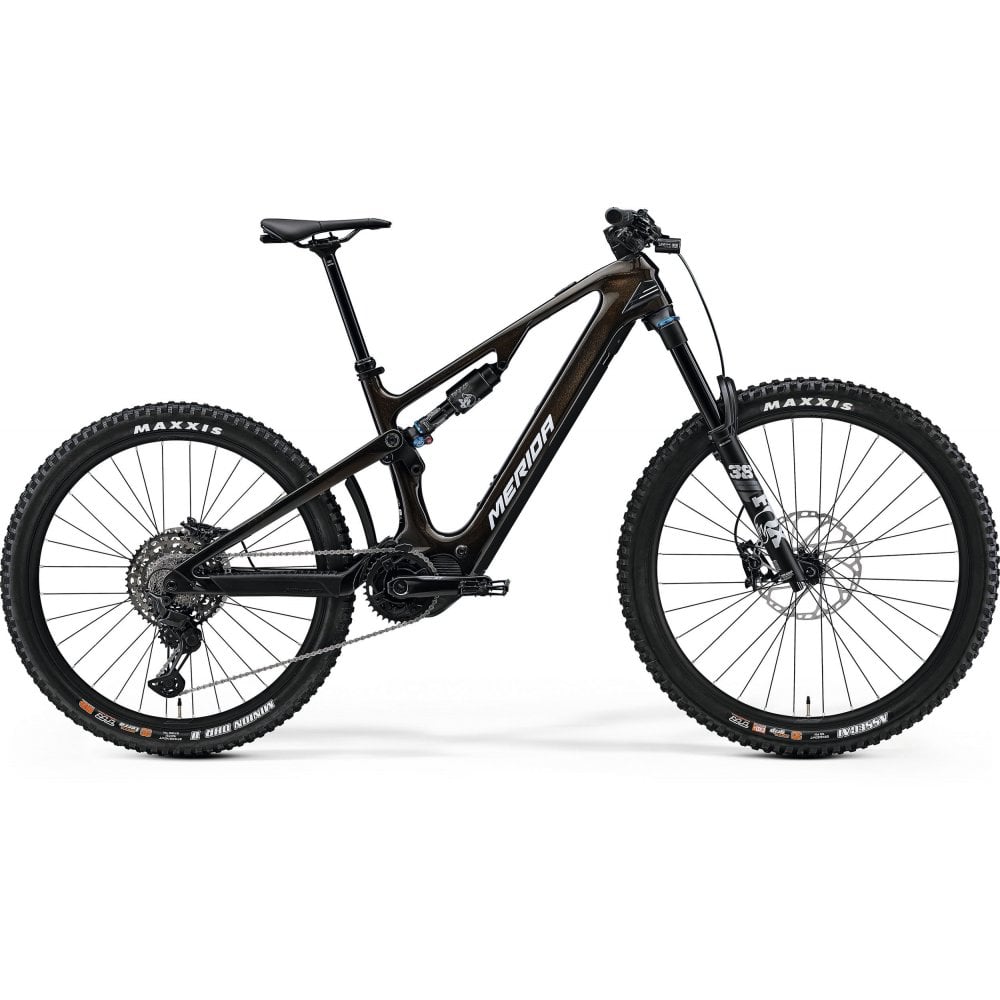

Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
Frameset | Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
---|---|
Fork | FOX 38 Performance Elite eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6" |
Brakes | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
Tyres | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra |
Rear mech | Shimano XT RDM8130 LinkGlide 11 |
Wheelset | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
Headset | Acros ICR Merida integrated neck with Blocklock |
Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
Shifters | Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter |
Cassette | Shimano LG500 |
Chain | Shimano LG700; 10-50 teeth; 11 Speed |
Chainset | FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Proxim Nembo Steel; V-mount adapter; including Merida minitool |
Seat post | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
Motor | Trendpower TPS-C15-58SD; 600Wh integrated, Shimano EP801; 85Nm |
Battery | 600Wh |
Rear shock | FOX Factory Float X2; 2 Pos Lever |
Tape grips | Merida Expert EC |
