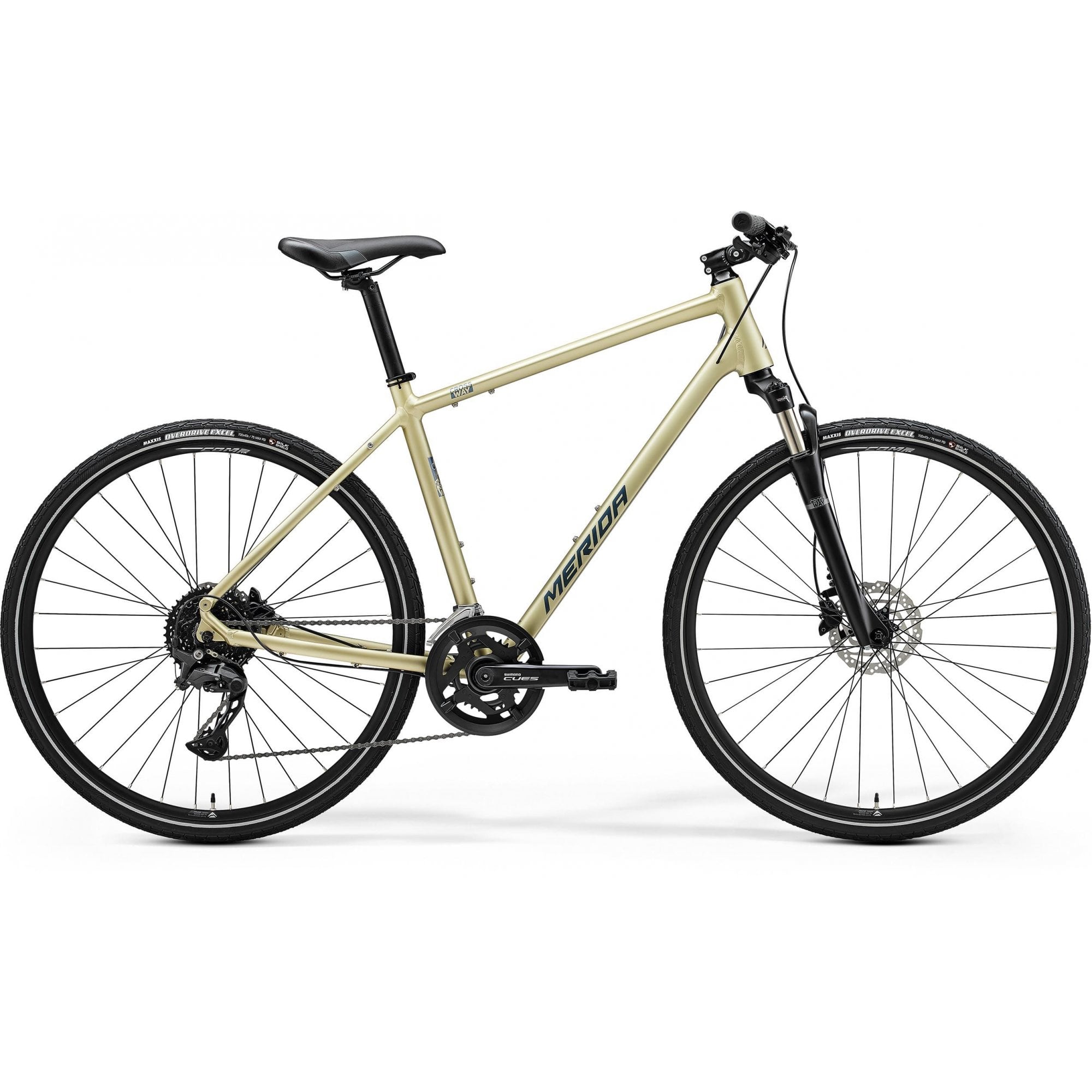

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Frameset | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
---|---|
Fork | SR Suntour NX1-DS-LO-700C-63; Coil; 63mm travel; Lockout; Max tyre size: 700x50C |
Brakes | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Tyres | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield - Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
Rear mech | Shimano CUES U6020 10S |
Wheelset | Merida Comp TK; 20mm inner rim width; 17mm rim depth; aluminium |
Headset | Merida M2346 Neck |
Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Length - 95mm (XXS-XS-S-M), 110mm (L-XL) |
Handlebar | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
Shifters | Shimano CUES U6000 |
Cassette | KMC xGlide |
Chain | Shimano LG300; 11-39 teeth; 10 speed |
Chainset | Shimano CUES U4010; 46-30 tooth chainset ; Aluminium; Crank length - 170mm (XXS/XS/S), 175mm (M/L/XL) |
Bottom bracket | Shimano MT501 |
Saddle | Merida Cross Sport |
Seat post | Merida Expert; 30.9mm diameter; 15mm layback; 300mm (XXS/XS); 350mm (S/M): 400mm (L/XL) |
Tape grips | Merida Expert EC |
Front mech | Shimano CUES U6010 |
