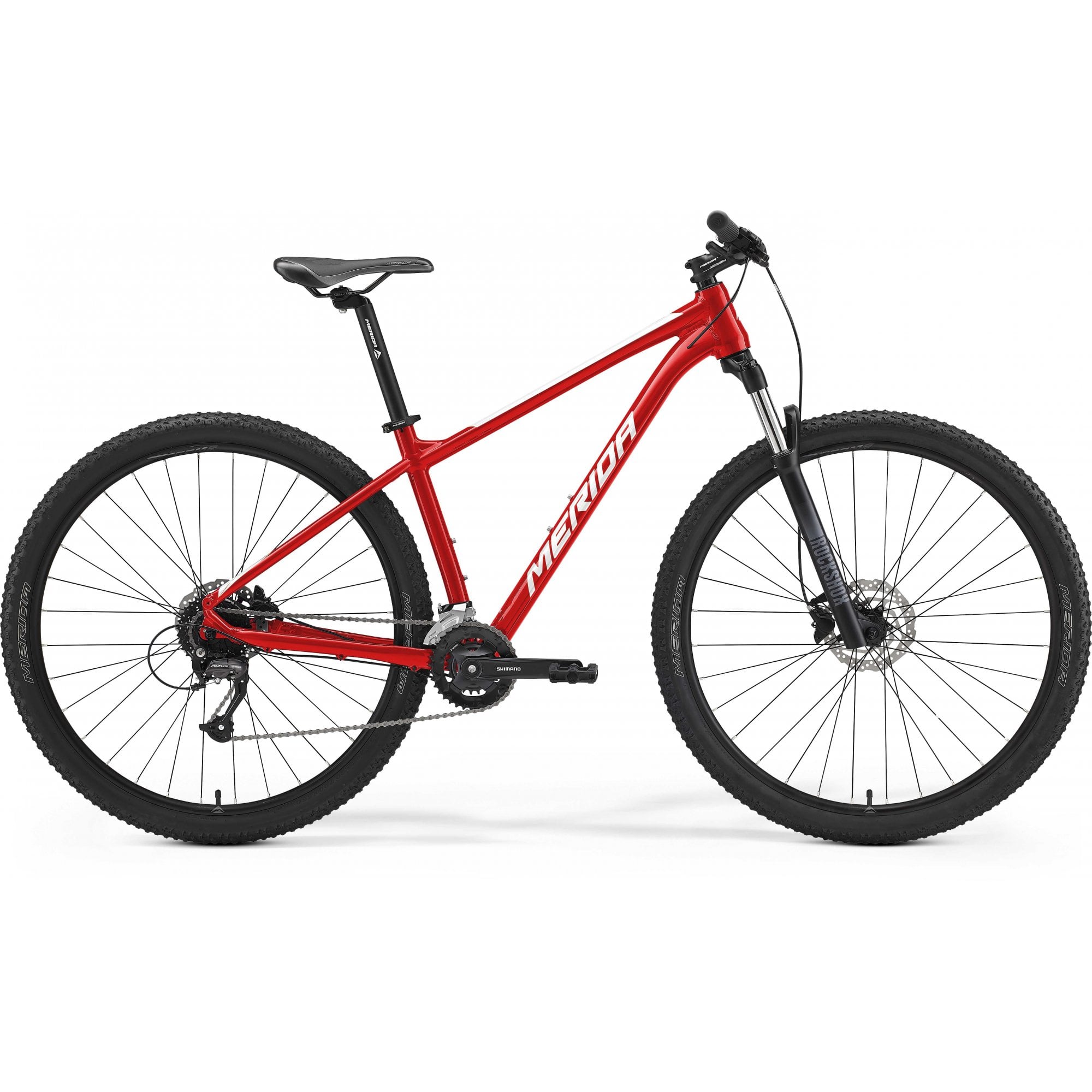

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.
All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology:
full internal cable routing for a clean, neat set up,
tapered headtube offering the potential for future upgrades
inboard disc brake mounts protect the brake and maximise stopping power
As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.

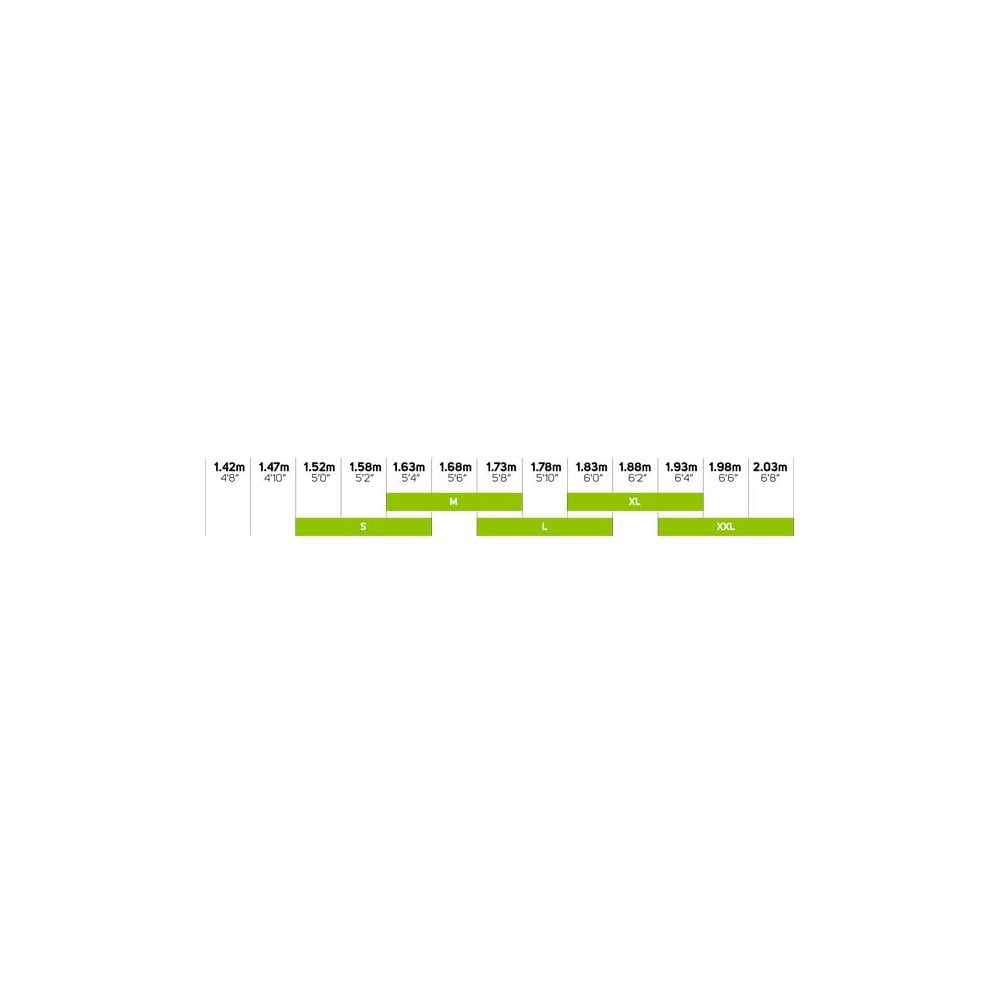

There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two.
For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility chose a Big Seven.

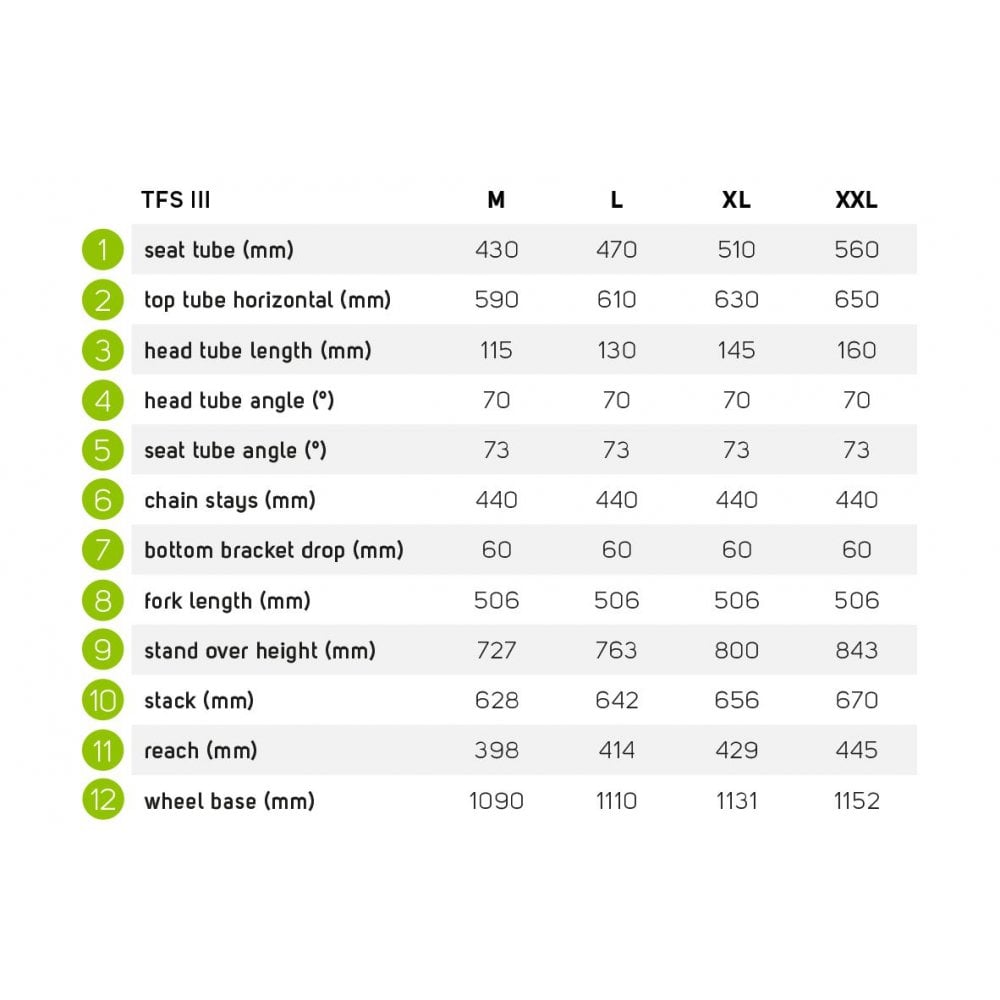

Frameset | TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25" |
---|---|
Fork | RockShox Judy TK; Coil; 100mm travel. Lockout; 46mm offset. Max. tyre size: 29" x 2.25" |
Brakes | Hydraulic disc |
Tyres | Merida K1080; 29" x 2.2"; wire bead - Merida K1080; 29" x 2.2"; wire bead |
Rear mech | Shimano RD-M370 |
Wheelset | Merida CC; 17mm inner rim width; Aluminium |
Headset | Merida M2345 |
Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL) |
Handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
Shifters | Shimano ST-EF505 |
Cassette | KMC M99 |
Chain | KMC M99 |
Chainset | Shimano MT101-2; 36-22 tooth chainset. Crank length: 175mm (M,L,XL,XXL) |
Bottom bracket | Shimano BB-UN100 |
Saddle | Merida Sport comfort |
Seat post | Merida Comp CC; aluminium; 30.9mm diameter; in-line |
Tape grips | Merida EC |
Front mech | Shimano FD-M2020-TS |
