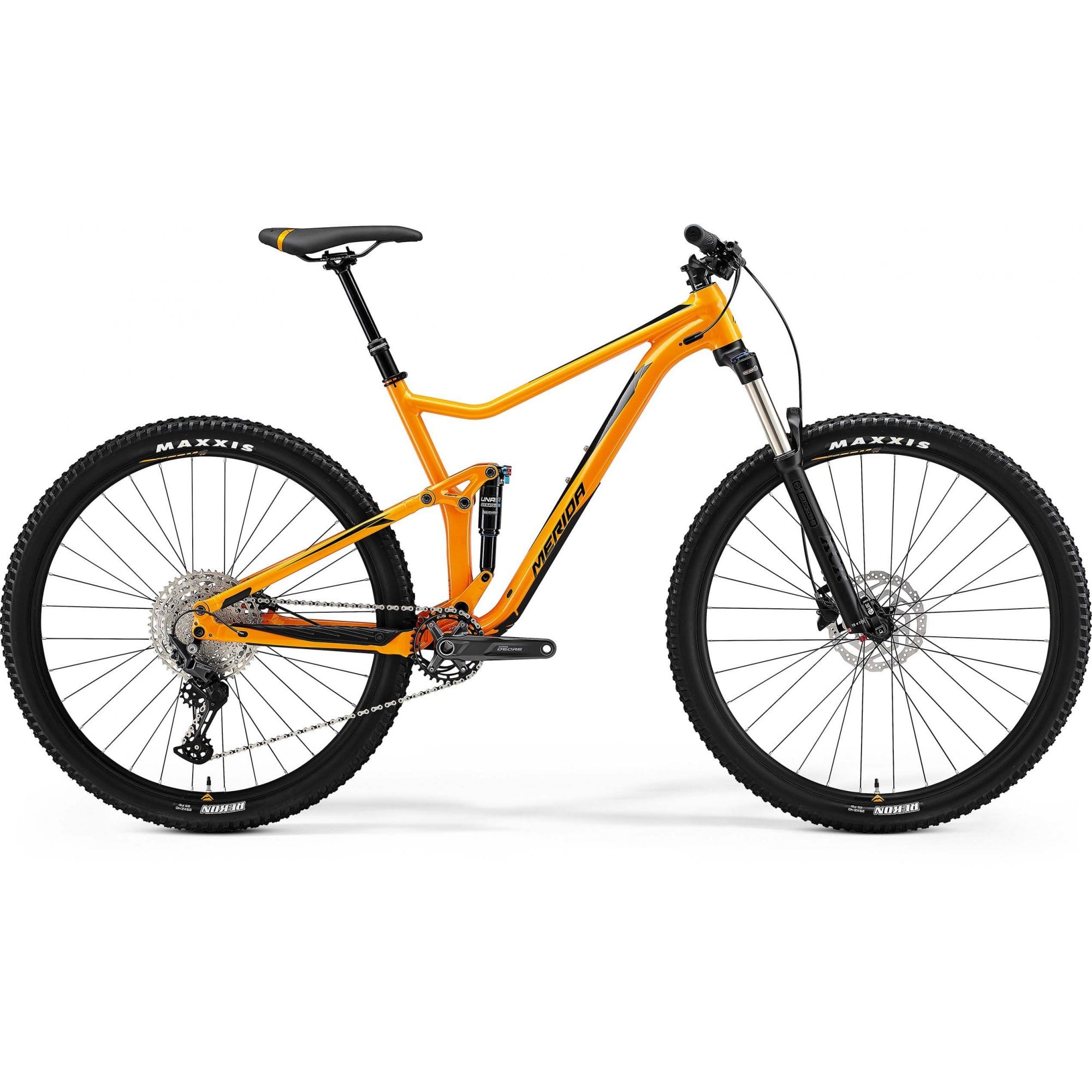

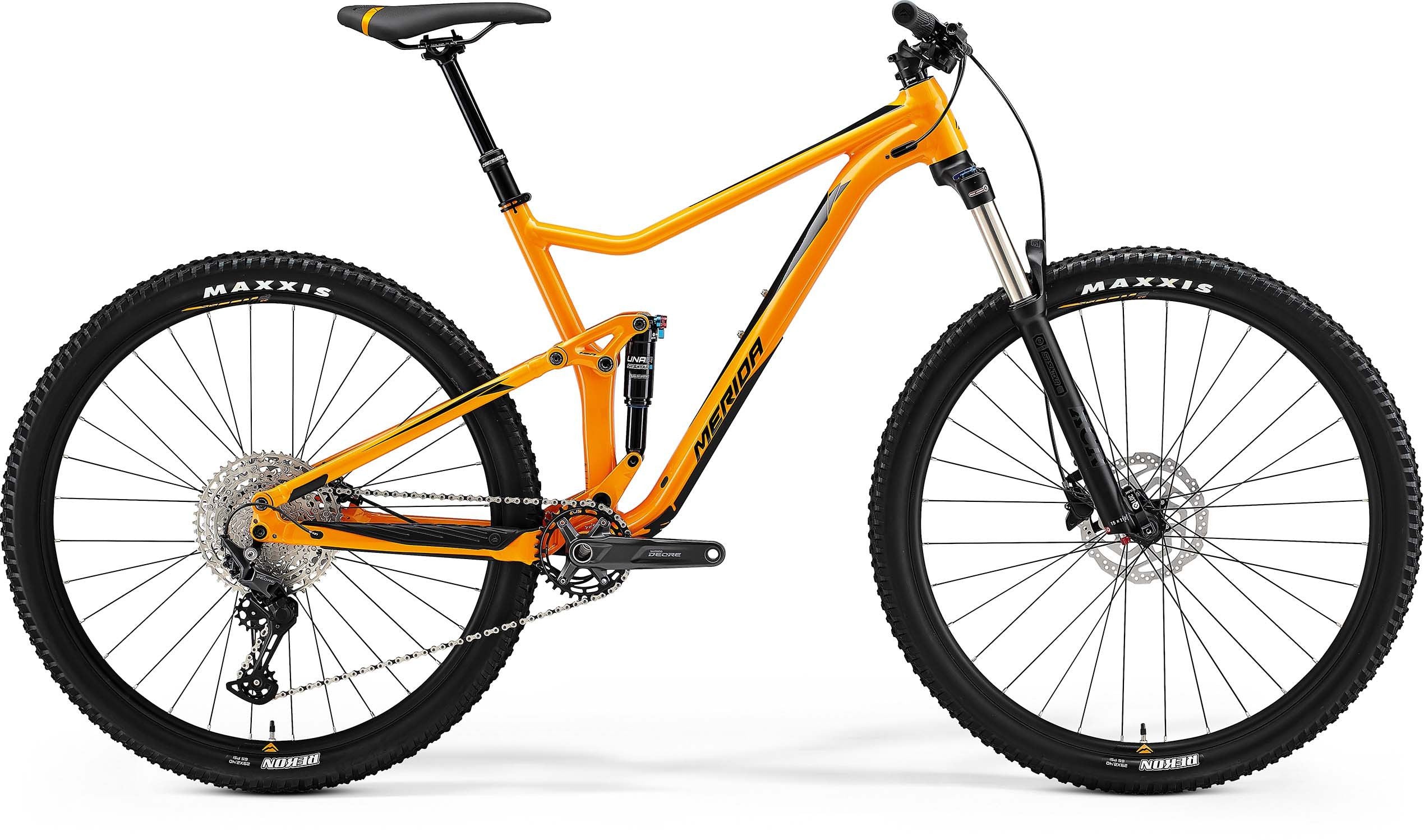

Our most versatile full suspension bike running 130mm forks with plush 120mm rear travel. The designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays that’s easy to maintain. All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt. Our entry level full suspension bike, supple 120mm rear travel with air shock and 130mm SR XCR34 Air fork. Shimano Deore 1 x 11 drivetrain and Shimano Boost standard centrelock hubs and Shimano hydraulic disc brakes
| Frameset | Lite €“ 6066 series triple butted, hydroformed aluminium tubing with smooth welding. Tapered head tube, Boost axle standard for stronger wheels, Smart Entry cable clamping for rattle free running. |
|---|---|
| Fork | Suntour XCR34 LOR; Air; 130mm travel; Tapered; lockout; 51mm fork offset |
| Brakes | Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 180mm rotor |
| Tyres | Maxxis Rekon; 29 |
| Rear mech | Shimano Deore M5100 Shadow+ |
| Wheelset | Merida Comp CC; 20mm inner rim width; Material: aluminium |
| Headset | FSA NO.47/50 |
| Stem | Merida Expert CC; aluminium; 31.8mm diameter; -6 degree rise - Length : 60 mm all sizes |
| Handlebar | Merida Expert CC; aluminium; 740mm wide; 10mm rise |
| Shifters | Shimano Deore M5100 |
| Cassette | KMC X11 NPBK |
| Chain | KMC X11 NPBK |
| Chainset | Shimano Deore M5100; 32 teeth chainwheel with 170mm - S, 175mm - M up length crank |
| Bottom bracket | Shimano MT500-PA pressfit |
| Saddle | Merida Comp CC |
| Seat post | Merida Comp TR; 30.9mm diameter; in-line; S: 100mm drop - M: 125mm drop - L/XL: 150mm drop with Shimano SL -MT500-IL lever |
| Rear shock | Suntour Unair TR LOR8; lockout |
| Tape grips | Merida Comp EC |
