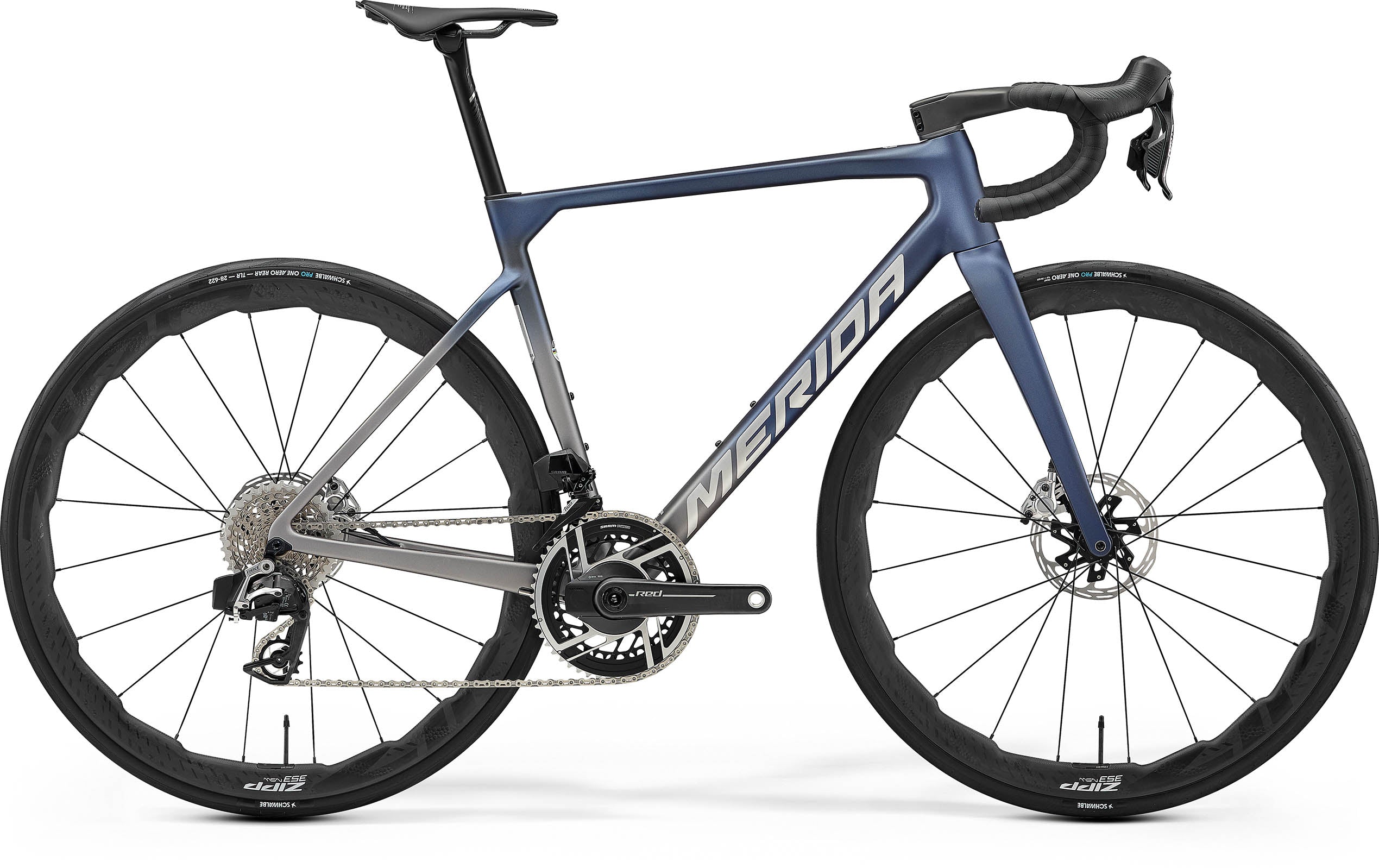

If only the best is good enough and you value aerodynamic efficiency, low weight, race-proven geometry and class-leading comfort then our test-winning Scultura could be the perfect choice for you. The CF5 frame is not just super light but also benefitted a lot from our new Reacto aerodynamic design and has been the focus of lots of effort to make it the most comfortable pure road race bike in our history.
Frameset | CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c |
---|---|
Fork | Scultura CF5 Disc; material: carbon; 700x30C max. tyre size |
Brakes | Hydraulic Disc SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm & SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm |
Tyres | Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C, & Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C, |
Rear mech | SRAM Red AXS E1 |
Wheelset | 700c - Zipp WH-353-NSW Tubeless; 12x100mm; 12x142mm; 25mmmm inner rim width; Centerlock; SRAM xdr; Carbon Part of wheelset - Zipp WH-353-NSW Tubeless Part of wheelset - Zipp WH-353-NSW Tubeless Part of wheelest - Zipp WH-353-NSW Tubeless |
Headset | Merida Team SL (OP-203 neck) |
Stem | Merida Team One-Piece Integrated; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm |
Handlebar | Merida Team SL 1P Integrated; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
Shifters | Front: SRAM Red AXS , Rear: SRAM Red AXS |
Cassette | SRAM XG 1290 E1; 10-36 teeth; 12 speed |
Chain | SRAM Red E1 |
Chainset | SRAM Red AXS; 50-37 tooth chainset; Power Meter; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
Bottom bracket | SRAM Pressfit Dub; Pressfit 86.5 |
Saddle | Prologo Nago R4 PAS; Nack |
Seat post | Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon |
Tape grips | Merida Road Expert |
Front mech | SRAM Red AXS |
