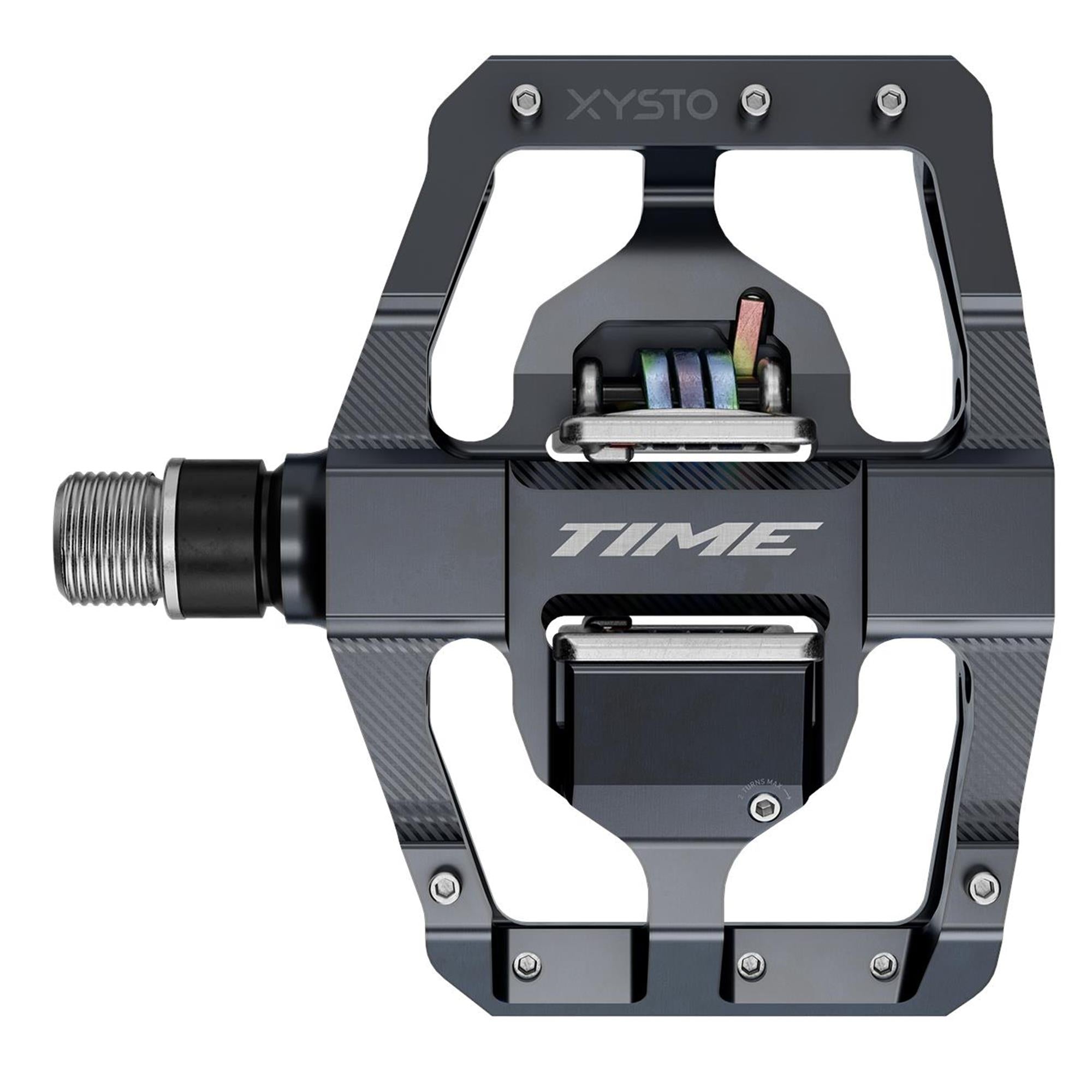

TIME XYSTO is a robust full-bodied pedal system for DH, Enduro, and aggressive off-road riders. The asymmetrical design fits the natural shape of your sole, with the extra-large platform providing additional support and control. TIME’s proven ATAC technology provides easy entry, retention, and mud clearance.
Features
Specifications
Axle component Steel axle
Bearings Steel
Body component 6106 T6 - Aluminum
Cleats ATAC cleats
Pedal stack height 18.3mm
Angular freedom 5° to -5° with free cleats, 0° with fixed cleats
Distance pedal spindle / crank arm 57mm
Lateral freedom 2.5 mm or -2.5 mm
Release angle 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension Micro adjustment
Threading 9/16 - 20 inch
Colour (Pedal )Dark Grey
Accessories ATAC CLEATS AND 20 GRIP SCREWS
Intended use Gravity
Power Measurement Not Compatible
Weight (per pedal) 226g
