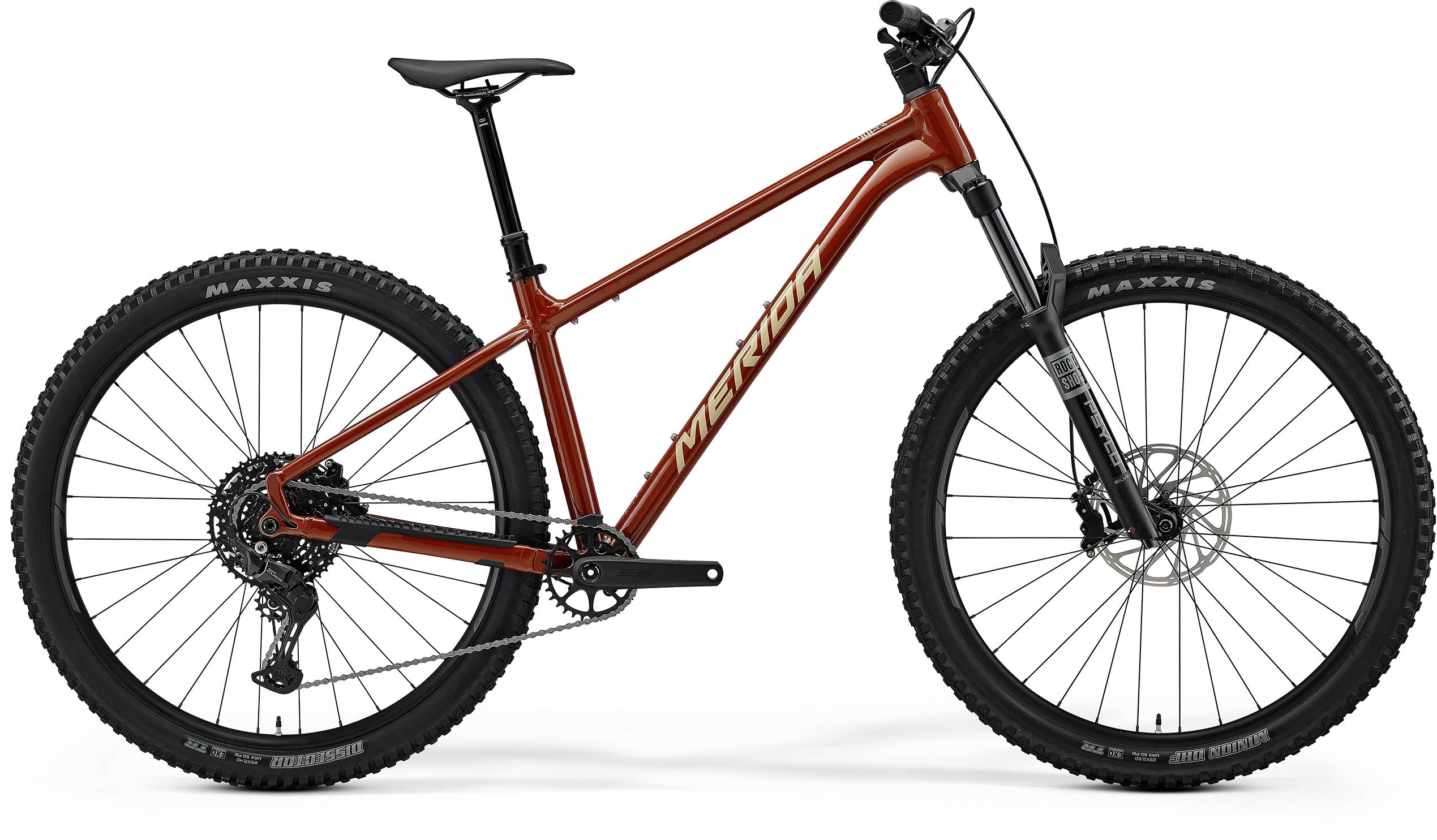

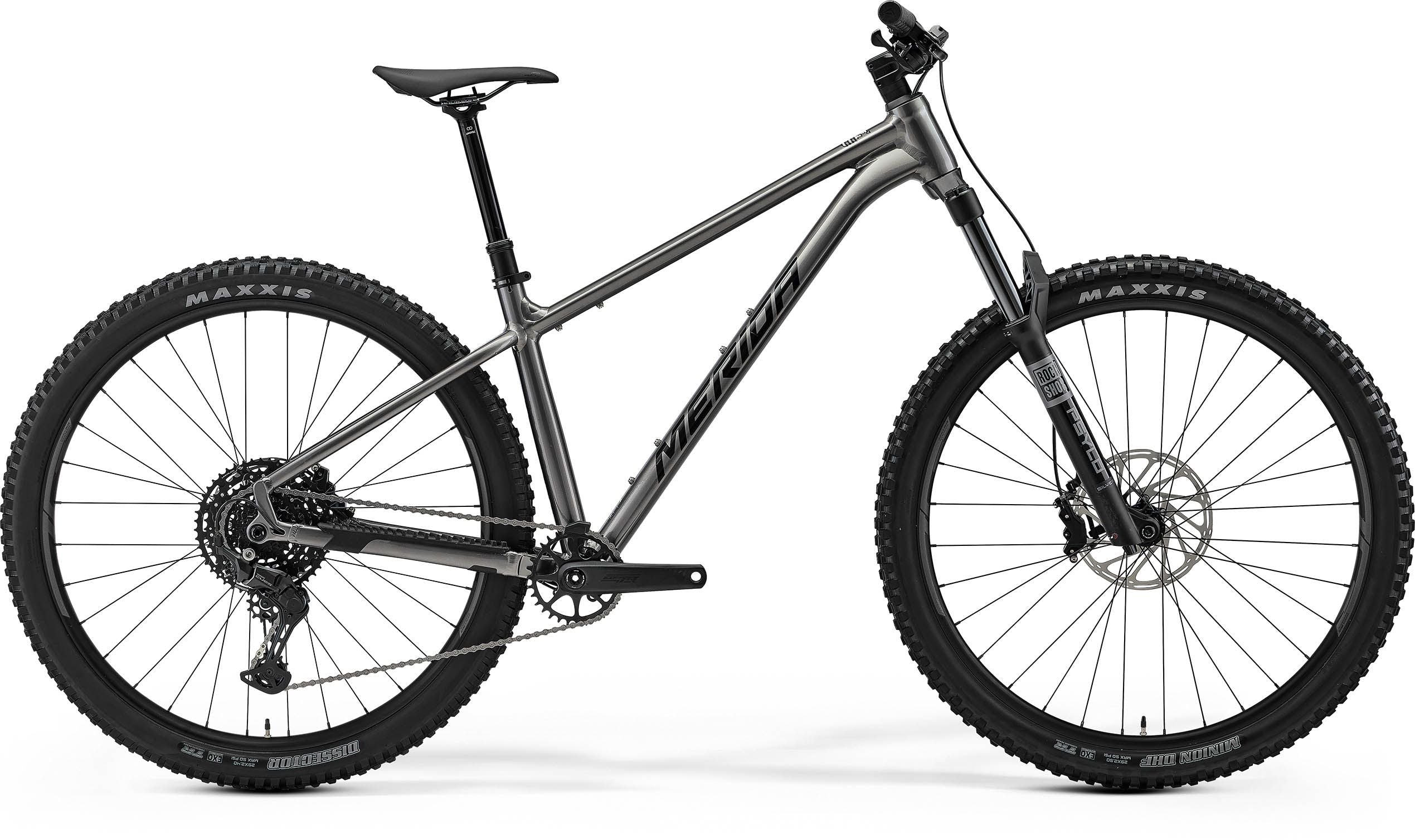

The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post.
Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough.
Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.
Frameset | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
---|---|
Fork | RockShox Psylo Silver RC; Air; 140 mm travel; platform |
Brakes | Hydraulic Disc SRAM DB4; 4 piston with SRAM CenterLine; 200mm & SRAM DB4; 4 piston with SRAM CenterLine; 180mm |
Tyres | Maxxis Minion DHF; 29x2.5"; kevlar bead; TR EXO Dual & Maxxis Dissector; 29x2.4"; kevlar bead; TR EXO Dual |
Rear mech | Shimano CUES U6000; GS |
Wheelset | 29" - Merida Comp TR; 29mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included) Double Butted Black stainless w/black nipples Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock |
Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
Handlebar | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
Shifters | Front: Shimano SL-MT500-L, Rear: Shimano CUES U6000 |
Cassette | Shimano LG300; 11-48 teeth; 10 speed |
Chain | KMC xGlide |
Chainset | Merida Expert TR II; 32 tooth chainset; Crank length: (XShort-Long) - 165mm, Xlong - 170mm |
Bottom bracket | Attached |
Saddle | Merida Comp SL; 25% recycled material; V-mount |
Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-Mid) - 170mm, Long - 200mm, XLong - 230mm seat post travel |
Tape grips | Merida Comp TR |
