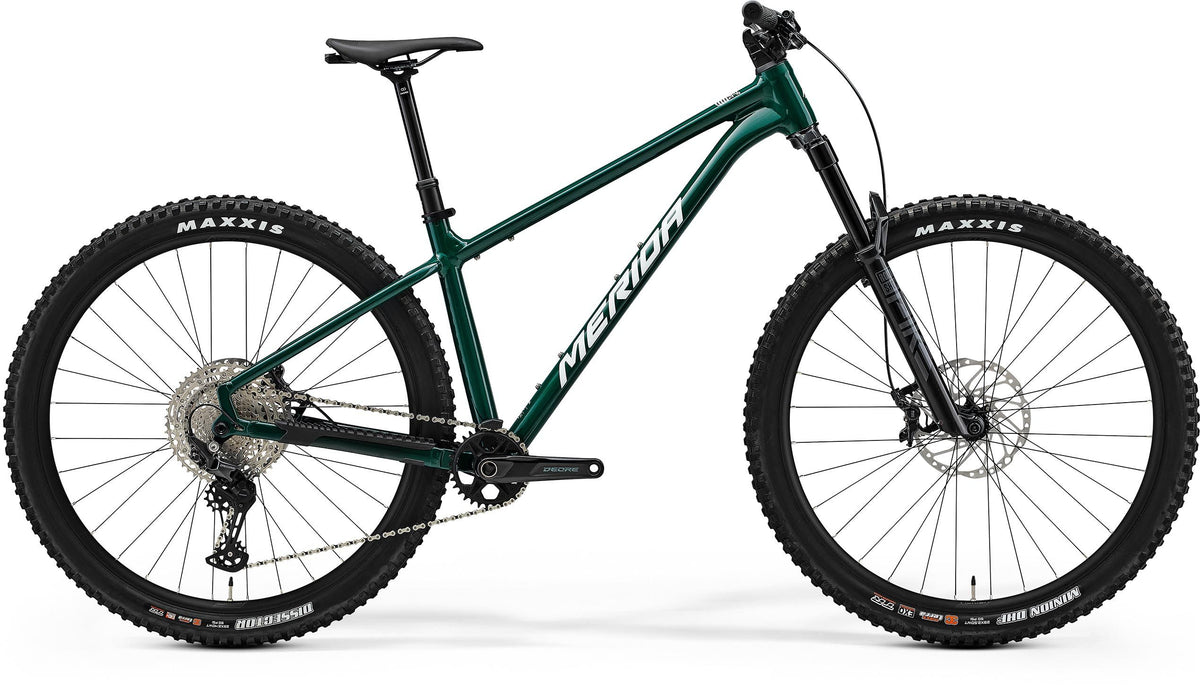

The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post.
Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough.
Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.
Frameset | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
---|---|
Fork | RockShox Pike; Air; 140 mm travel; tapered; platform; 44mm fork offset; 29x2.6 max. tyre size |
Brakes | Hydraulic Disc Shimano Deore M6120; 4 piston with Shimano RT64; 203mm & Shimano Deore M6120; 4 piston with Shimano RT64; 203mm |
Tyres | Maxxis Minion DHF; 29x2.5"; kevlar bead; TR EXO 3C MaxxTerra & Maxxis Dissector; 29x2.4"; kevlar bead; TR EXO+ 3C MaxxTerra |
Rear mech | Shimano Deore M6100; SGS |
Wheelset | 29" - Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); 29" Double Butted Black stainless w/black nipples Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Shimano TC500-MS-B; 148x12mm; 32 Spoke; Centerlock |
Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
Handlebar | Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise |
Shifters | Front: Shimano SL-MT500-IL, Rear: Shimano Deore M6100 |
Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
Chain | KMC X12 |
Chainset | Shimano Deore M6120; 32 tooth chainset; Crank length: (XShort-Long) - 165mm, Xlong - 170mm |
Bottom bracket | Shimano MT501; 24mm |
Saddle | Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool |
Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-Mid) - 170mm, Long - 200mm, XLong - 230mm seat post travel |
Tape grips | Merida Comp TR |
