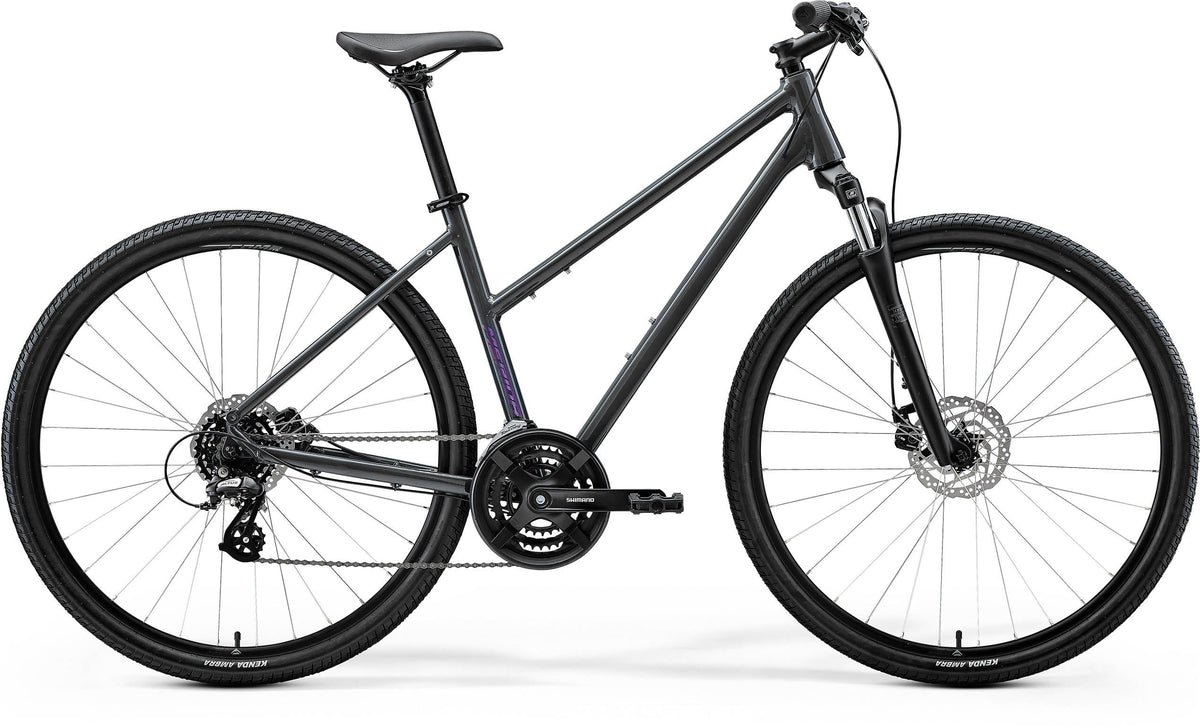

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Frameset | TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
---|---|
Fork | SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size |
Brakes | Mechanical Disc Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm & Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm |
Tyres | Kenda Ambra K1278; 700x45C; wired & Kenda Ambra K1278; 700x45C; wired |
Rear mech | Shimano RD-M310-7 |
Wheelset | 700c - Merida Comp TK; 17mm inner rim width; material: aluminium Steel UCP Shimano TX505; 100x9mm; 32 Spoke; Centerlock Shimano TX505; 135x9mm; 32 Spoke; Centerlock |
Headset | Merida M2345 |
Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise |
Handlebar | Merida CC; material: steel; 620mm wide; 30mm rise |
Shifters | Front: Shimano ST-EF500-L, Rear: Shimano ST-EF500-7R |
Cassette | Shimano CS-HG210-7; 12-32 teeth; 7 speed |
Chain | SunRace CNM 84 |
Chainset | Shimano TY301; 48-38-28 tooth chainset; material: aluminium; Crank length: (XXS-M) - 170mm, (M/L up) - 175mm |
Bottom bracket | Shimano UN101 LL123 |
Saddle | Merida Cross Sport |
Seat post | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
Tape grips | Merida EC |
Front mech | Shimano FD-TY510-3 |
