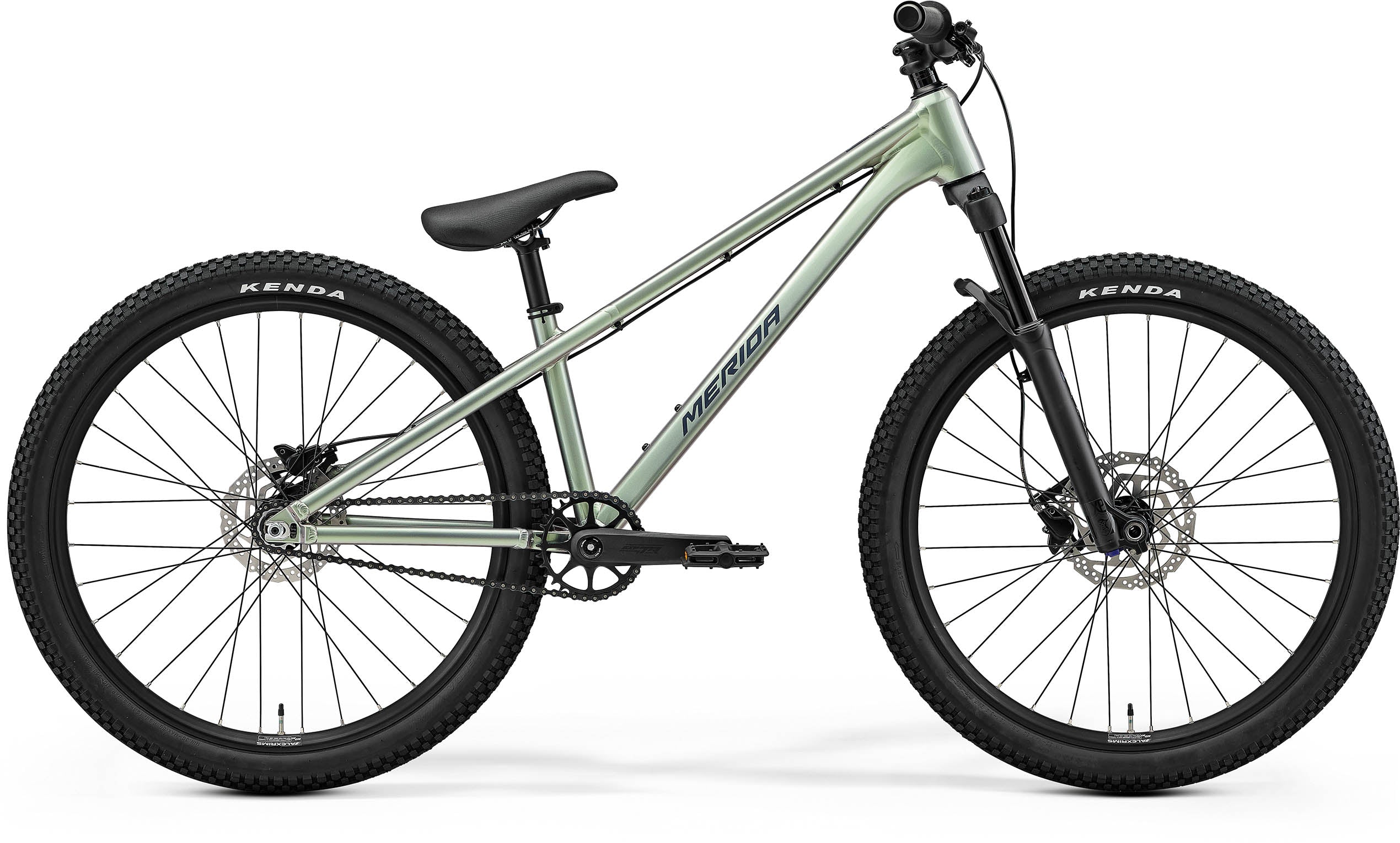

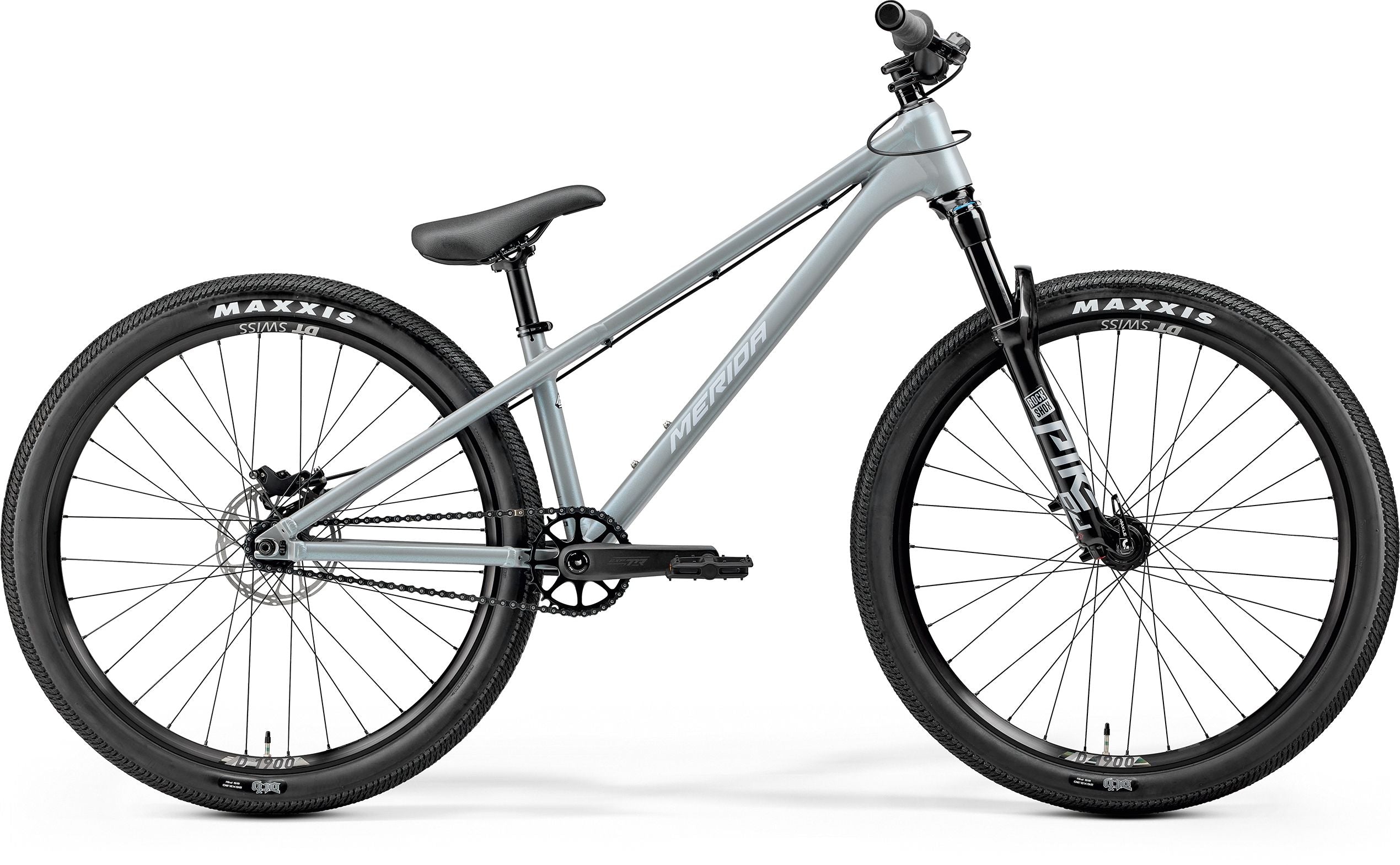

This one is for the serious trail bosses, slopestyle shredders and pump track pinners. A super-tough aluminium frame is paired with some of the best dirt-jump-ready gear on the market, with the benchmark RockShox Pike DJ fork taking the sting out of landings and the robust 26" DT Swiss wheelset able to take a licking without flinching. We've used a controllable hydraulic SRAM four-piston rear brake with a cable-operated front - and the bike is Compatible with gyros if barspins and tailwhips are on the menu.
Frameset | TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5" |
---|---|
Fork | RockShox Pike DJ; Air; 100 mm travel; 15x100mm; 26x2.5" max. tyre size; 40mm fork offset; tapered |
Brakes | Hydraulic Disc Tektro MD-M280; 2 piston with Tektro TR-160-52; 160mm & SRAM DB4; 4 piston with SRAM CenterLine; 160mm |
Tyres | Maxxis DTH; 26x2.3" & Maxxis DTH; 26x2.3" |
Wheelset | 26" - DT Swiss D1900; 30mm inner rim width; 110x15mmmm; 135x10mm bolt onmm; 13t; tubeless tape ready (tape installed) Part of wheelset - DT Swiss D1900 Part of wheelset - DT Swiss D1900 Part of wheelest - DT Swiss D1900 |
Headset | FSA NO.57 |
Stem | Merida Expert TR II; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
Handlebar | Merida Comp TR; material: aluminium; 780mm wide; 20mm rise |
Cassette | 13 teeth single speed |
Chain | KMC Z1 wide |
Chainset | Merida Expert TR II; 32 tooth chainset; Crank length: 160mm |
Bottom bracket | Samox BSA 24mm EB2401 |
Saddle | Merida Comp DR |
Seat post | Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length |
Tape grips | Merida Comp DR |
