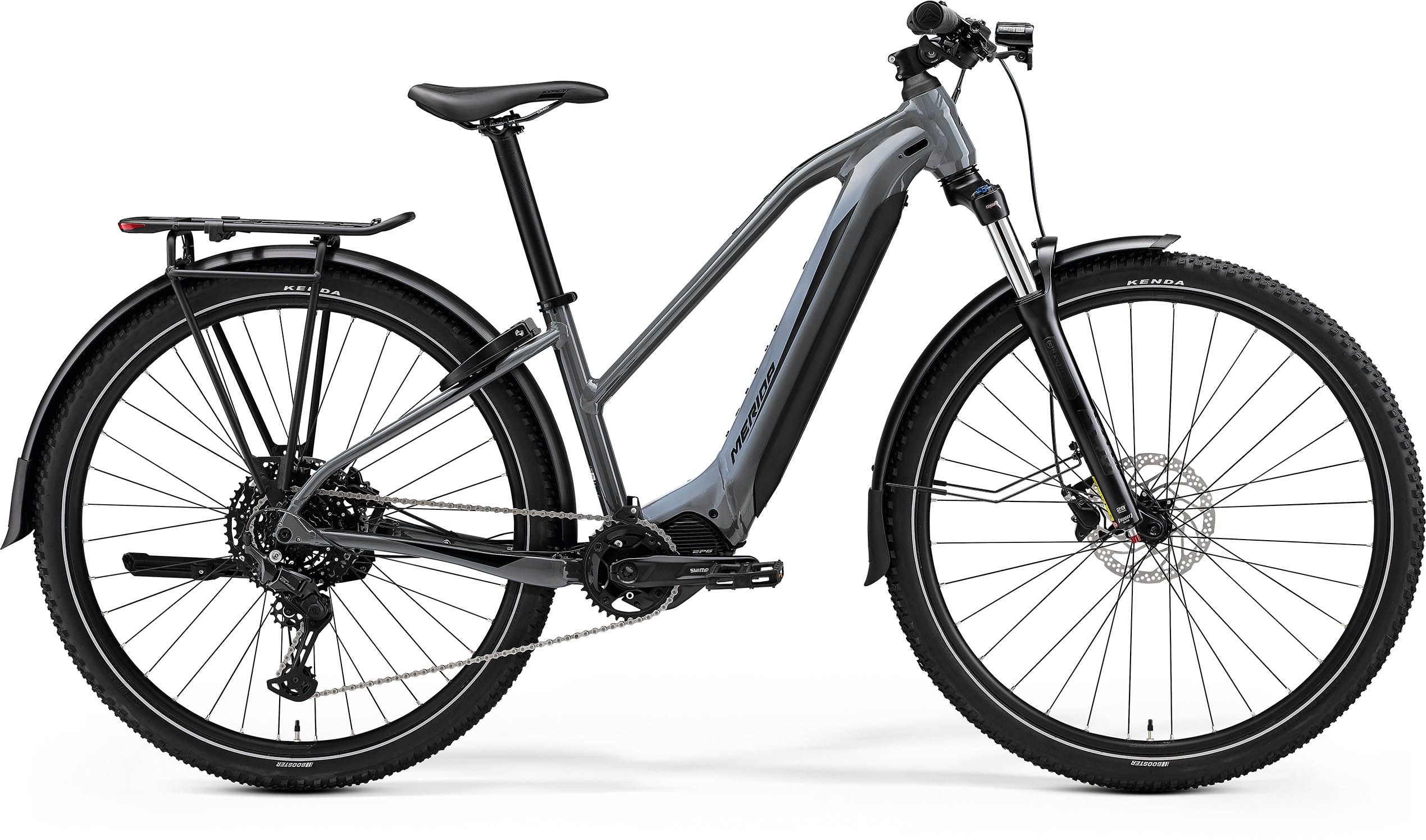

The cycling equivalent of an SUV; stylish and practical. 29 € wheels make for effortless cycling. The fast and grippy 2.2 € Kenda Booster tyres fit neatly inside the mudguards for year round practicality.
The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride.
Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing.
The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.
Frameset | Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
---|---|
Fork | Suntour XCM34-Boost LOR DS; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4" |
Brakes | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor |
Tyres | Kenda Booster; 29" x 2.2"; wire bead |
Rear mech | Shimano CUES U6000; GS |
Wheelset | Merida Comp CC II; 25mm inner rim width; aluminium |
Headset | Merida-8155 (for steerer 1-1/8"~1.5") |
Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes |
Handlebar | Merida Expert CC; aluminium; 720mm wide; 10mm rise |
Shifters | Shimano CUES U6000 |
Cassette | Shimano LG300; 11-48 teeth; 10 speed |
Chain | Shimano LG500 |
Chainset | Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Expert TK; V-mount |
Seat post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
Motor | Shimano EN806; 630Wh internal battery, Shimano Steps EP6; 85Nm |
Battery | 630Wh |
Tape grips | Merida Expert TK |
