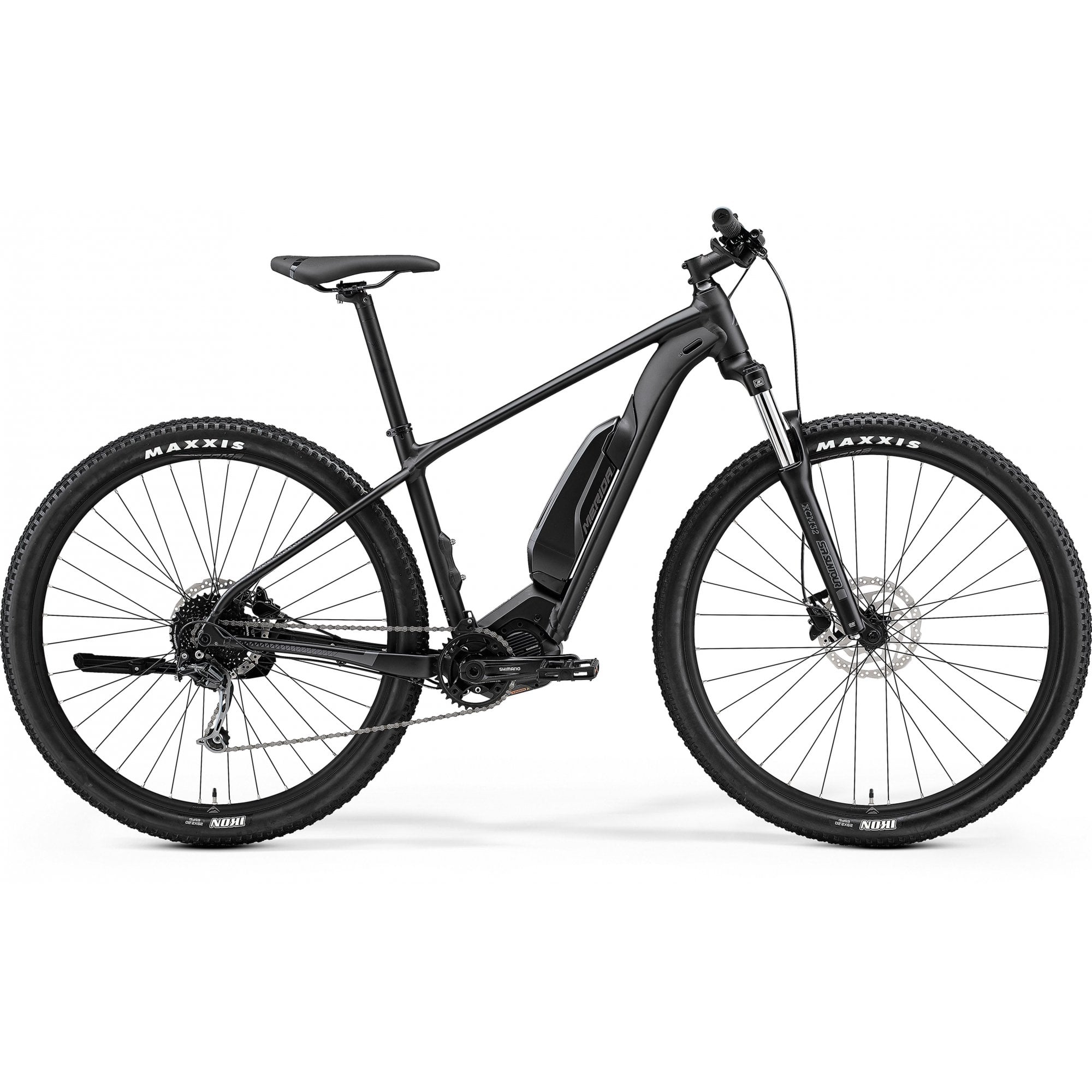

The geometry of the eBig Nine and eBig Seven follows one very simple principle; as sporty as possible, as comfortable as necessary.
The addition of a motor makes this perfect for commuting to work without arriving bedraggled or feeling worried about being too tired to make it home. Alternatively, its mountain bike geometry, suspension fork, grippy tyres and powerful brakes offer the opportunity to venture further afield .
Frameset | Lite - Hydroformed 6066 aluminium with internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Complete with mounts for mudguards and kickstand. Max. tyre size 29" x 2.25" |
---|---|
Fork | Suntour XCM32 DS; Coil; 100mm travel; Tapered; 47mm fork offset. Max. tyre size: 29" x 2.4" |
Brakes | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
Tyres | Maxxis Ikon; 29" x 2.2"; kevlar bead; folding |
Rear mech | Shimano Alivio M3100; SGS |
Wheelset | Merida Comp CC; 20mm inner rim width; Aluminium |
Headset | Merida 2341 Neck |
Stem | Merida Expert CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 80mm (M), 90mm (L), 100mm (XL) |
Handlebar | Merida Expert CC; aluminium; 720mm wide; 10mm rise |
Shifters | Shimano Alivio M3100 |
Cassette | Shimano HG200; 11-36 teeth; 9 speed |
Chain | KMC e9S |
Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Comp SL with V-mount |
Seat post | Merida Expert; aluminium; 30.9mm diameter; 15mm lay back |
Motor | Shimano EN605; 504Wh internal battery, Shimano Steps EP6; 85Nm |
Battery | 504Wh |
Tape grips | Merida Expert EC |
