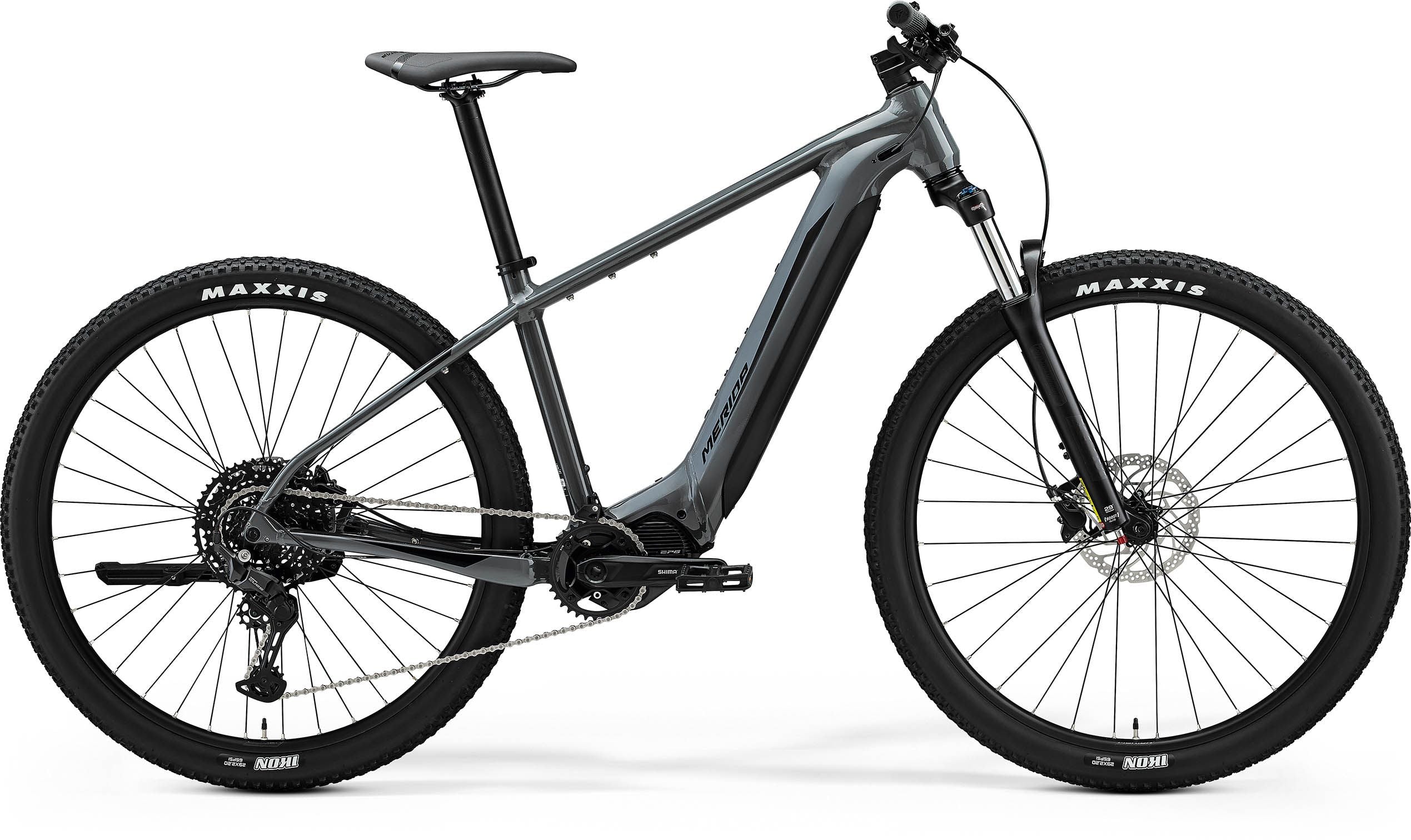

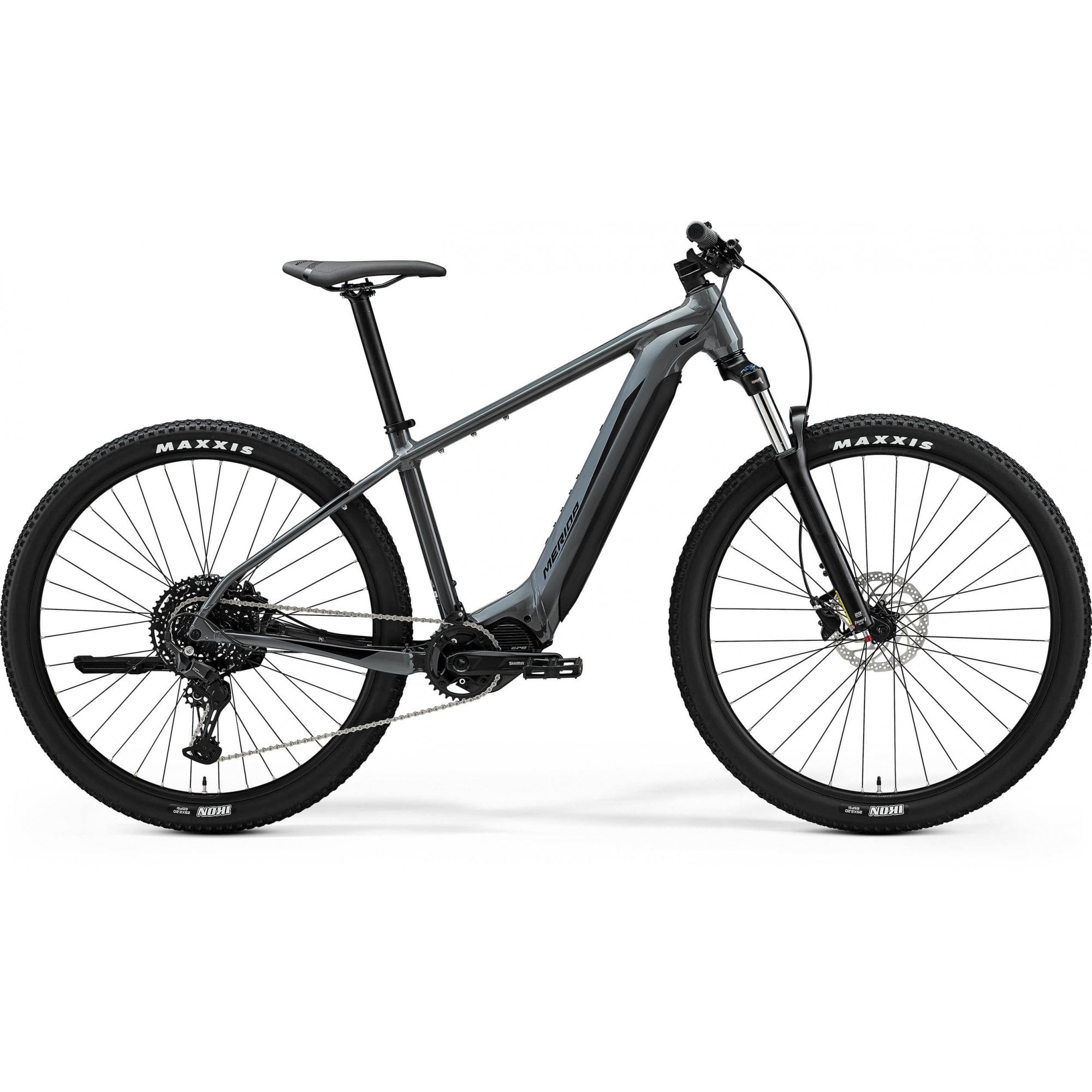

The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary.
You ride to work in the morning but fancy a little off road detour on the way home? No problem €“ that's what these bikes are made for!
Combining the best elements of mountain and trekking bikes, this rugged machine can be fitted with mudguards and racks making it ideal for both commuting and year round leisure riding.
The eBig Nine 400 is the cheapest Merida eBike to use Shimano's EP6 85Nm motor and 630w battery.
Many technical features and much of the thinking that went into the award winning eOne-Sixty have been incorporated to deliver a stylish and well thought through hardtail.
The strong, stiff aluminium frame is the result of extensive hydroforming, precision laser cutting and CNC machining. The battery is housed low down in the downtube to keep the centre of gravity low. The battery can be charged in the bike via a satellite charging port.
| Frameset | Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
|---|---|
| Fork | Suntour XCM34-Boost LOR DS; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4" |
| Brakes | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm all sizes; GoPro & Supernova mount |
| Tyres | Merida Merida Expert TR II; 760mm wide; 18mm rise |
| Rear mech | Shimano CUES U6000; GS |
| Wheelset | Merida Comp CC II; 25mm inner rim width; aluminium |
| Headset | Merida-8157 |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm all sizes; GoPro & Supernova mount |
| Handlebar | Merida Merida Expert TR II; 760mm wide; 18mm rise |
| Shifters | Shimano CUES U6000 |
| Cassette | Shimano LG500 |
| Chain | Shimano LG300; 11-48 teeth; 10 speed |
| Chainset | Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Merida Comp SL with V-mount |
| Seat post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Motor | Shimano EN806; 630Wh internal battery, Shimano Steps EP6; 85Nm |
| Battery | 630Wh |
| Tape grips | Merida Expert EC |
