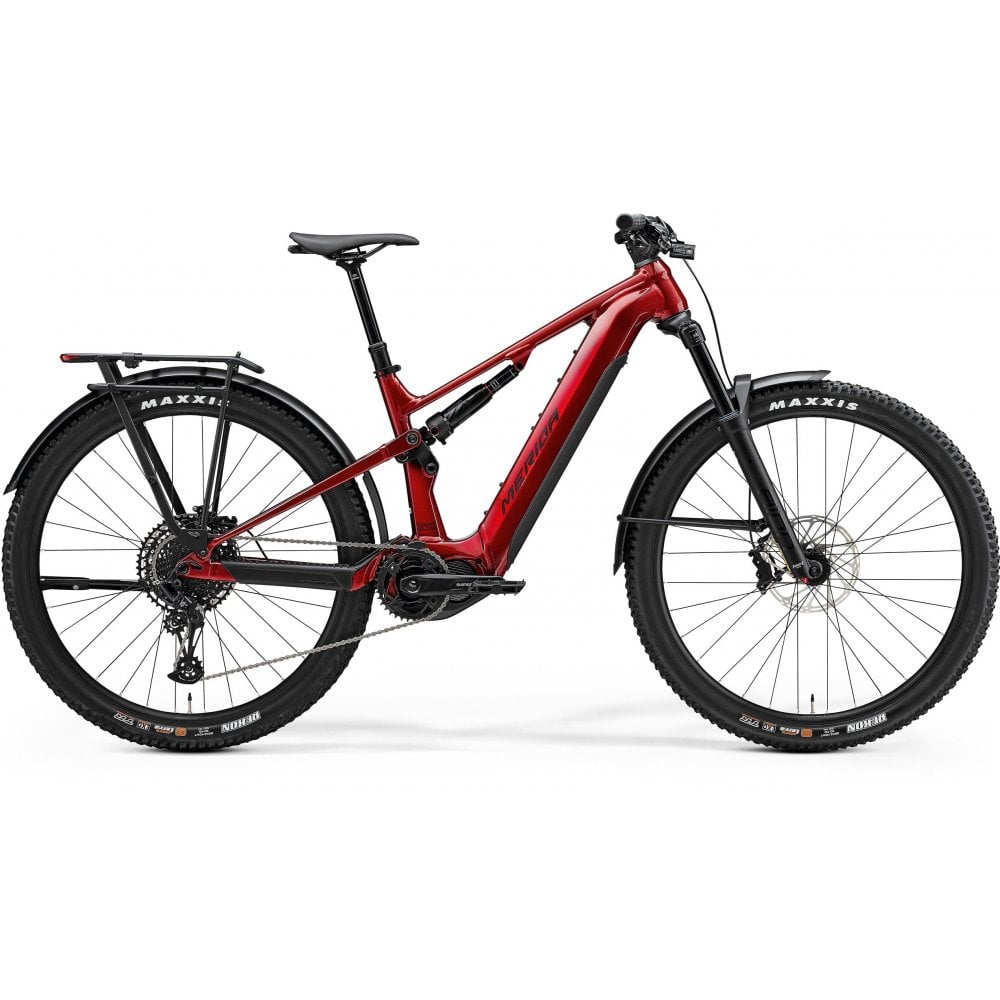

The new eOne-Forty has a big range in every sense. It's highly versatile, from the trail to the commute, and the impressive 750 Wh battery can be boosted with a 360 Wh range extender that's available separately. The suspension platform and geometry has been influenced by previous generation ebikes and our award-winning trail and enduro range so it has peerless off-road performance and handling that's confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front. Our simplified AGILOMETER sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility.
Frameset | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8" |
---|---|
Fork | SR Suntour SF25-AION 36X-Boost axle standard |
Brakes | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
Tyres | Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; 3C EXO MaxxTerra - Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; TR 3C EXO MaxxTerra |
Rear mech | SRAM Eagle 70 |
Wheelset | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
Headset | Acros ICR Merida external neck with Blocklock |
Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
Shifters | Limotech RM10 (For SRAM MMX) dropper lever and SRAM Eagle 70 Transmission Shifter |
Cassette | SRAM Eagle 70 - Flattop |
Chain | SRAM PG-1270 Eagle; 10-50 teeth; 12 Speed |
Chainset | SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Comp SL; 28% recycled material; V-mount; including Merida minitool |
Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel |
Motor | Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm |
Battery | 750Wh |
Rear shock | Rock Shox Super Deluxe Select |
Tape grips | Merida Expert EC |
