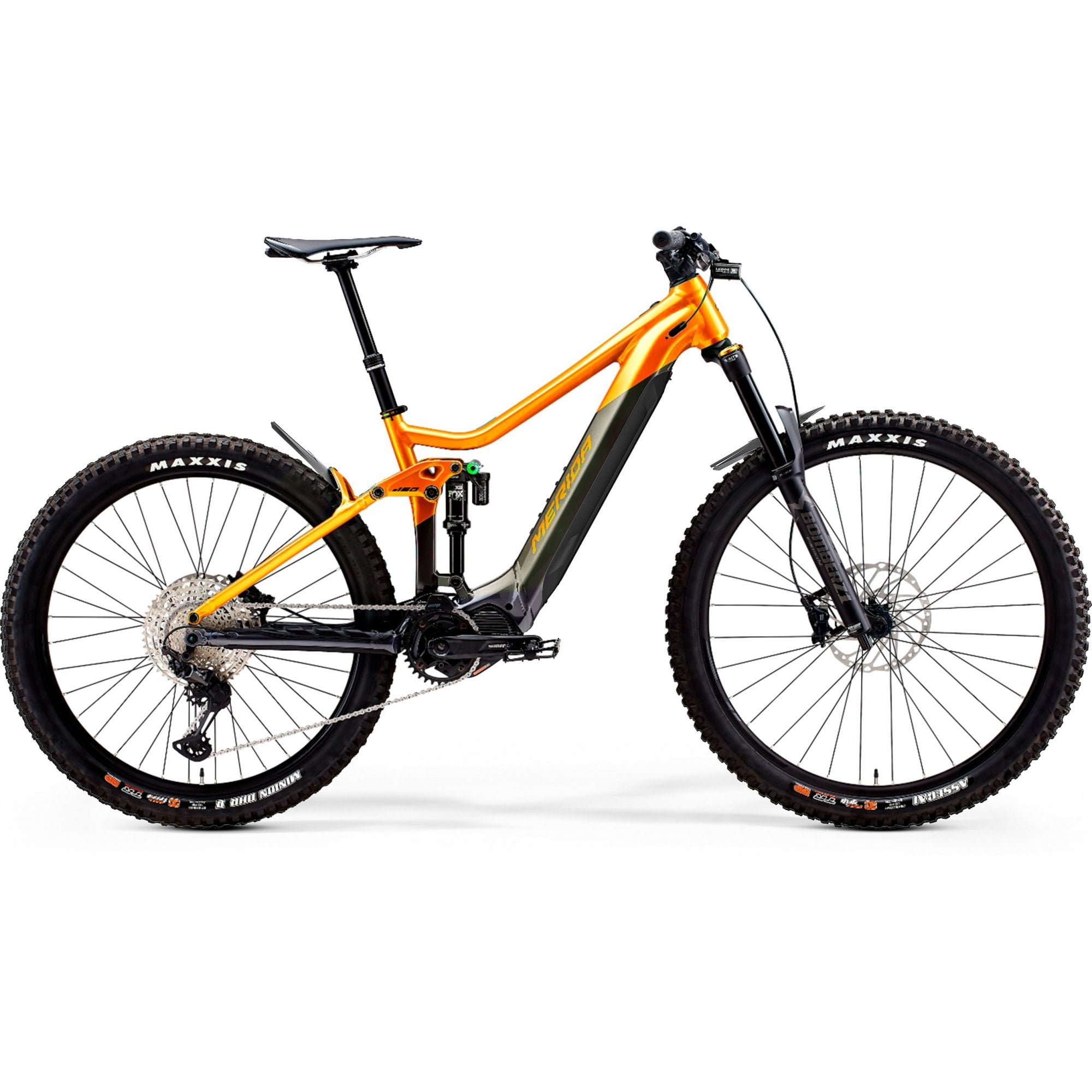

The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few.
The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and €œregular bike € geometry.
To give the e-full suspension bikes precise steering, fantastic €˜rolling over obstacles €™ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Frameset | Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
---|---|
Fork | Marzocchi Z1 Ebike+; Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6" |
Brakes | Shimano SLX 4 piston hydraulic disc brake caliper with Shimano RTEM600 203 mm rotor |
Tyres | Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip |
Rear mech | Shimano XT RDM8100 Shadow+ 12 speed |
Wheelset | Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included) |
Headset | Merida-8152 |
Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
Handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
Shifters | Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever |
Cassette | Shimano M6100; 10-51 teeth; 12 speed |
Chain | KMC e12T EPT |
Chainset | Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
Bottom bracket | Part of Shimano Steps motor |
Saddle | Merida Expert CC with V-mount including Merida minitool |
Seat post | Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M/L), 170mm (XL) |
Motor | Shimano EN806; 630Wh internal battery, Shimano Steps EP6; 85Nm |
Battery | 630Wh |
Rear shock | FOX Float X P-S A Performance; platform |
Tape grips | Merida Expert EC |
