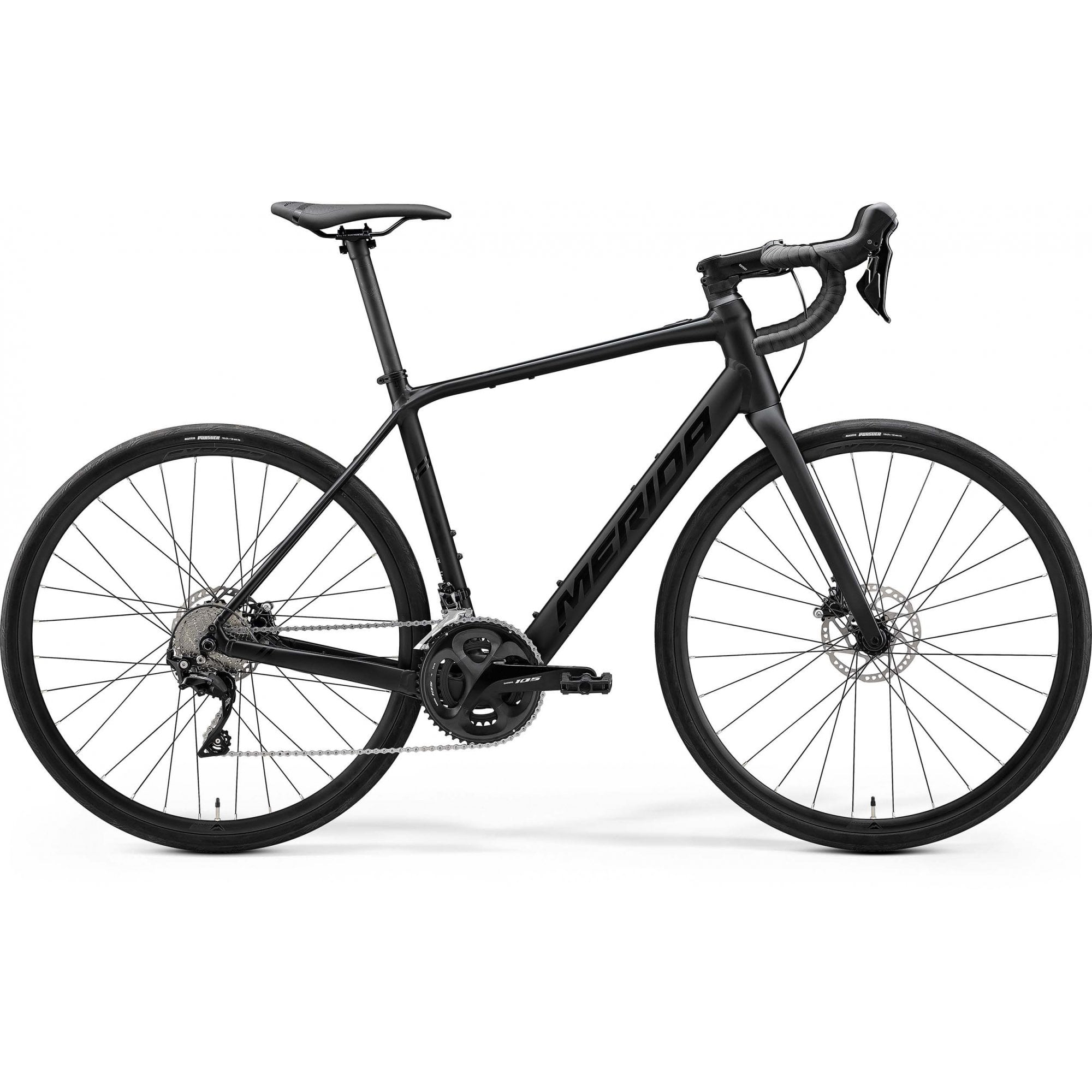

The silhouette of the bike would not give away the fact the eScultura benefits from a permanent tail wind.
Cheating? Not when you're having this much fun. The eScultura 400 brings all the benefits of a pedal-assist motor to a serious road bike, delivering a way to keep up with the pack on the hills without a heavy, draggy feel when you're pedalling above the assistance limit. Shimano's benchmark 105 groupset and hydraulic disc brakes to deliver a ride that's as sporty as a regular bike.
MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube.
The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively even without power assistance. There is almost no drag at all from the motor when it is not engaged.
The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.
The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit nice and neat.
Frameset | Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
---|---|
Fork | Mission CX CF3; carbon. Max. tyre size: 700 x 42c |
Brakes | Hydraulic disc |
Tyres | Maxxis Pursuer 700 x 32c; Kevlar bead, folding - Maxxis Pursuer 700 x 32c; Kevlar bead, folding |
Rear mech | Shimano 105; GS |
Wheelset | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
Headset | VP-MH-P16 |
Stem | Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
Handlebar | Merida Expert CW; aluminium; Width: 400mm (XS/S), 420mm (M/L), 440mm (XL) |
Shifters | Shimano 105 |
Cassette | KMC e11s |
Chain | KMC e11s |
Chainset | Shimano 105; 50-34 tooth chainset with 170mm - XS/S/SM/ML, 175mm - L/XL length crank |
Bottom bracket | Shimano BSA |
Saddle | Merida Comp SL; V-mount |
Seat post | Merida Expert CC; carbon; 30.9mm diameter; in-line |
Motor | 250 Wh |
Tape grips | Merida Expert |
Front mech | Shimano 105 |
