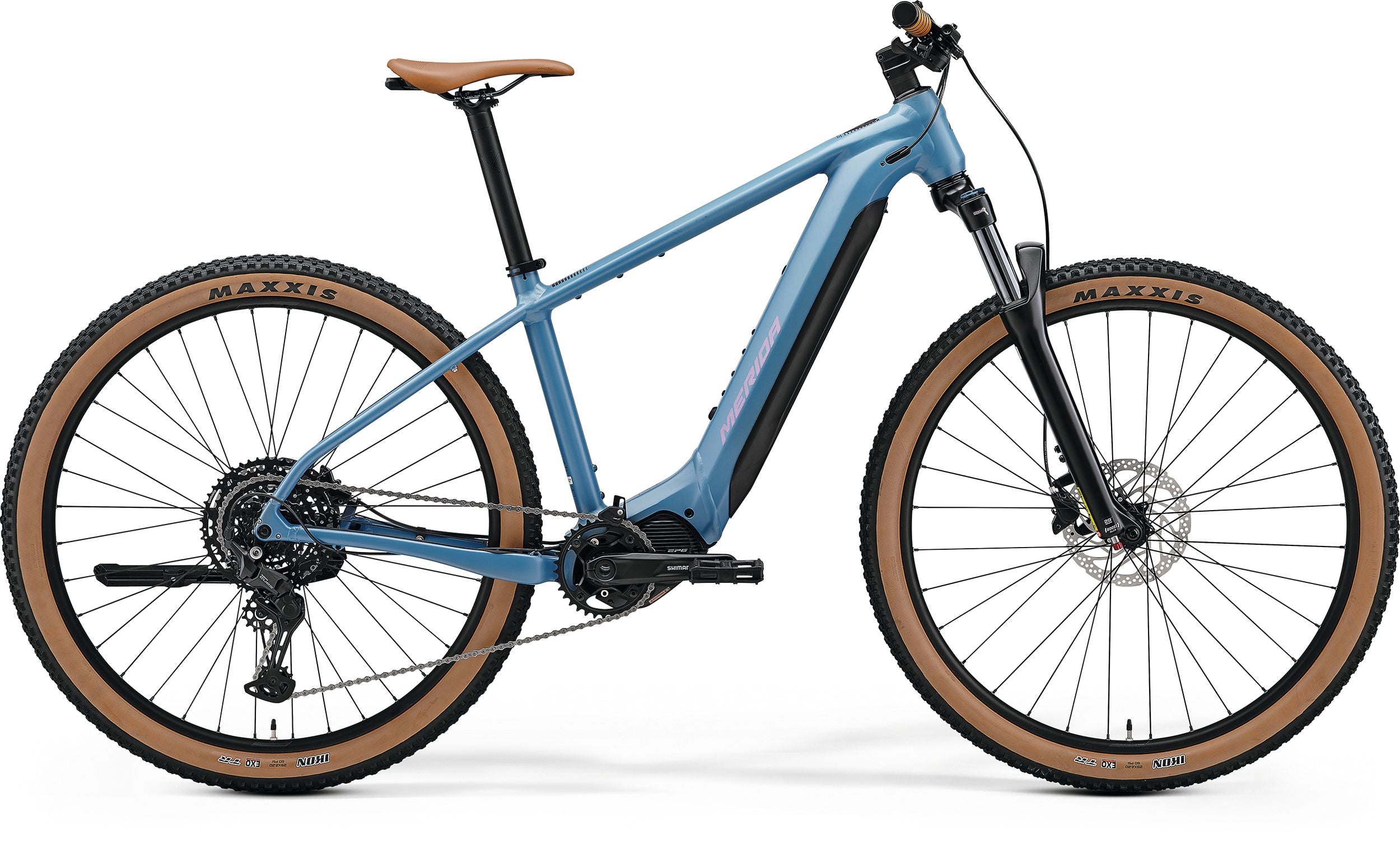

The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary.
The eBig Nine 400 offers the power to do more of what matters. . More fun when you're riding off-road, with a powerful 85NM Shimano EP6 drive unit to help you up the hills. More time in the saddle with a 630 Wh battery that'll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that's also got a lifetime warranty.
Frameset | Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
---|---|
Fork | SR Suntour XCM34-Boost LO-R DS; 100mm travel; Tapered; 44mm fork offset |
Brakes | Hydraulic Disc Shimano MT-200; 2 piston with Shimano RT30; 180mm & Shimano MT-200; 2 piston with Shimano RTEM300; 180mm |
Tyres | Maxxis Ikon; 29x2.2"; kevlar bead & Maxxis Ikon; 29x2.2"; kevlar bead |
Rear mech | Shimano CUES U6000 ; GS |
Wheelset | 29" - Merida Comp CC II; 25mm inner rim width; material: aluminium Black stainless ; black nipples Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Shimano TC500-HM-B; 148x12mm; 36 spoke; Centerlock |
Headset | Merida-8157 |
Stem | Merida Expert eTRII; material: aluminium; 35mm diameter; 0 degree rise; GoPro & Supernova mount; length: 50mm |
Handlebar | Merida Expert TR II; 760mm wide; 18mm rise |
Shifters | Rear: Shimano CUES U6000-10 |
Cassette | Shimano LG300; 11-48 teeth; 10 Speed |
Chain | Shimano LG500 |
Chainset | Shimano CRE70-B; 34 tooth chainset ; Crank: Shimano FC-EM600; 165mm |
Bottom bracket | included |
Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
Seat post | Merida Expert CC; material: aluminium; 34.9mm diameter; in-line |
Motor | Shimano EN806; 630Wh, Shimano EP6; 85Nm |
Battery | 630Wh |
Tape grips | Merida Comp TK |
