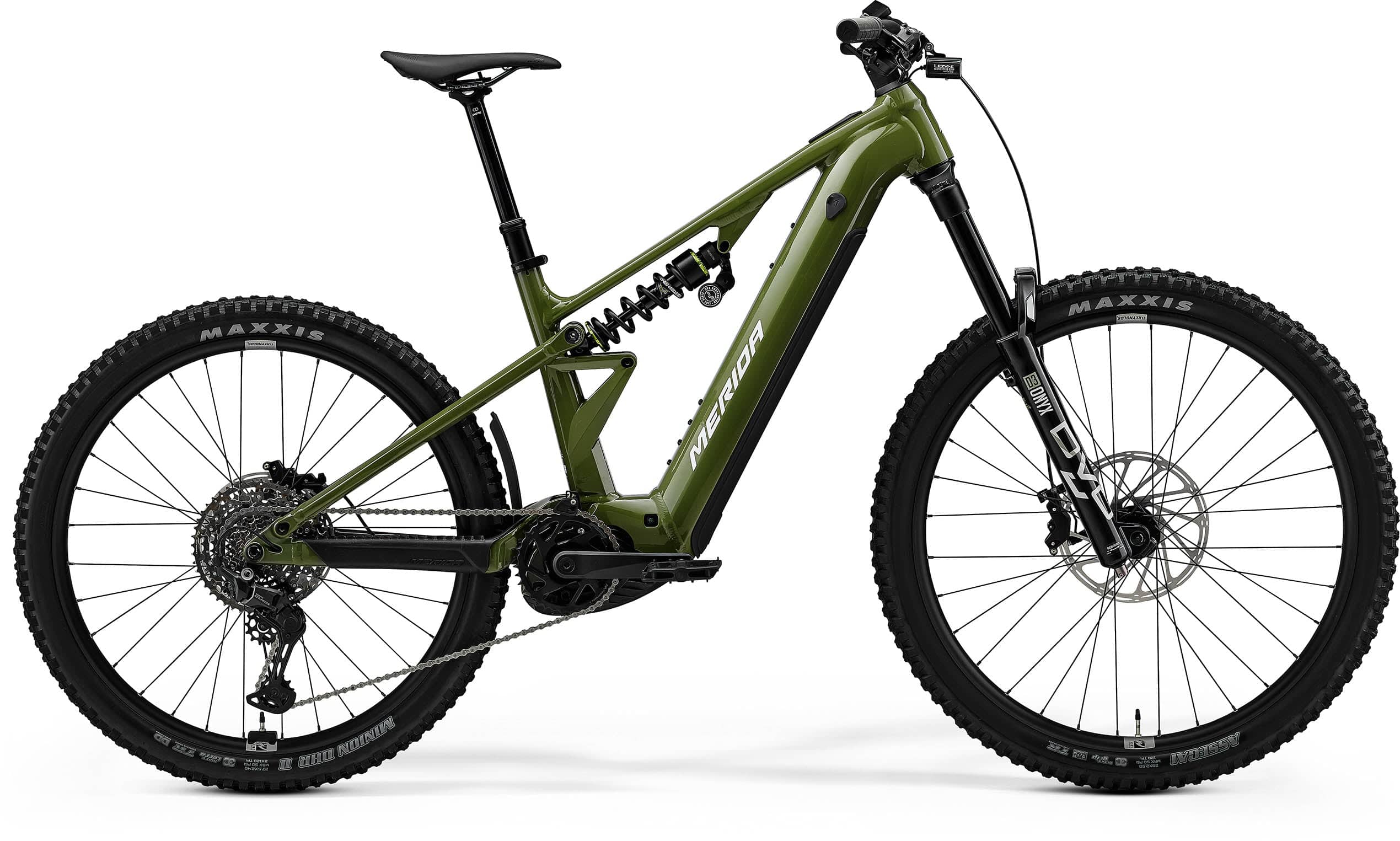

If you live for bike park laps and big mountain shredding, this is the e-MTB for you. We've taken our eOne-Eighty platform and added in a coil sprung DVO rear shock and DVO Onyx fork to boost the descending performance to the limit, without blowing your budget. We've focused on getting powerful brakes from SRAM and tough Reynolds rims wrapped in sticky and strong Maxxis rubber rather than blowing cash on a fancy drivetrain, so you get maximum descending performance for your money.
Frameset | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
---|---|
Fork | DVO Onyx 38 D3; Air, 180mm travel; Tapered; 44mm fork offset |
Brakes | Hydraulic Disc SRAM DB4 stealth; 4 piston with SRAM CenterLine; 220mm & SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm |
Tyres | Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip & Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra |
Rear mech | Shimano CUES U6000; GS |
Wheelset | 29" / 27.5" - Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5" Black stainless ; black nipples Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt |
Headset | Acros ICR Merida External neck w/ Blocklock |
Stem | Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm |
Handlebar | Merida Expert eTR; 780mm wide |
Shifters | Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10 |
Cassette | Shimano Cues LG400; 11-48 teeth; 10 Speed |
Chain | Shimano LG500 |
Chainset | FSA Direct Mount Steel Chainring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm |
Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel |
Motor | Bosch PowerTube 800 ; 800Wh, Bosch Performance Line CX |
Battery | 800Wh |
Rear shock | DVO Jade X CORE |
Tape grips | Merida Expert TR |
