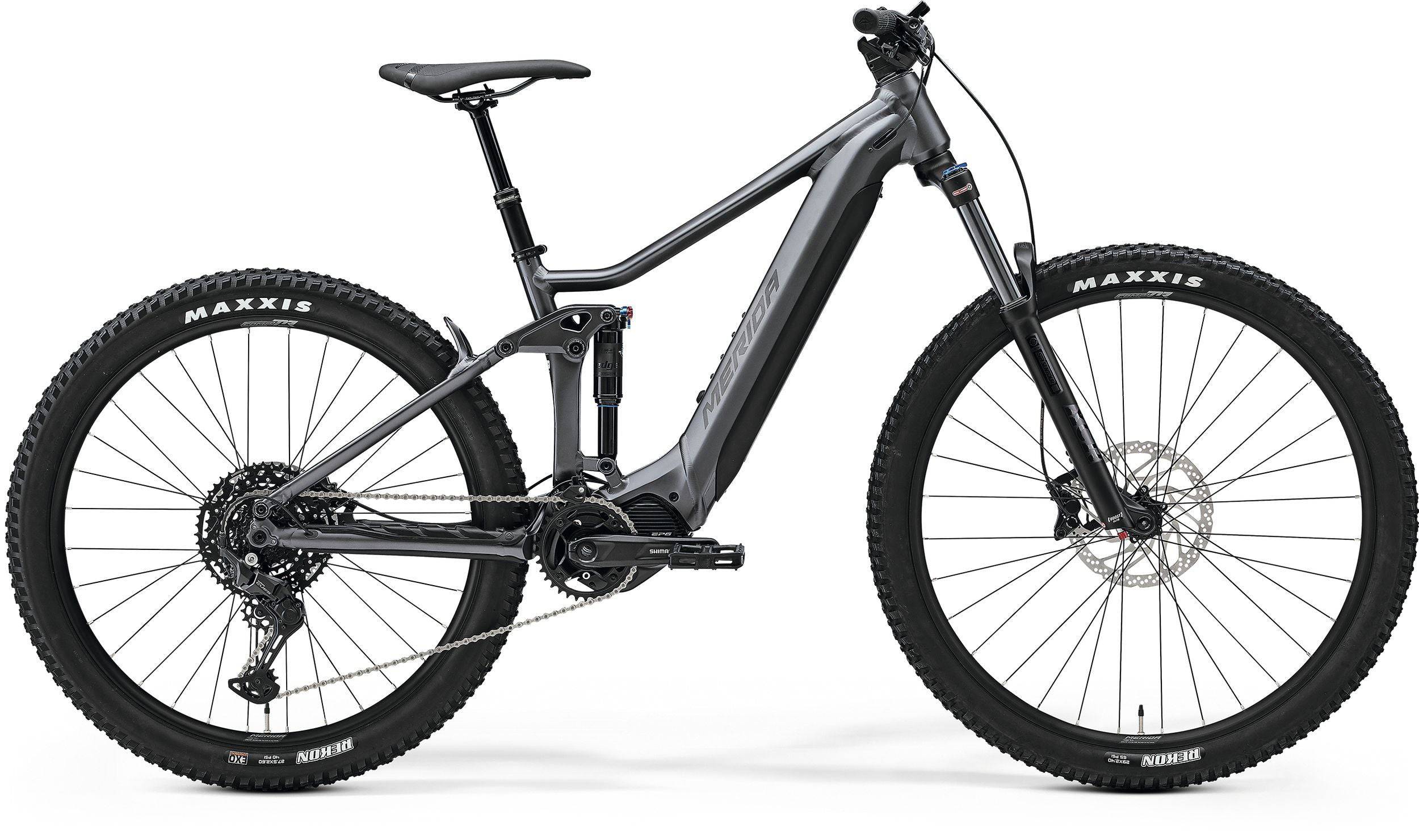

The Merida eOne-Forty 400 SE MY24 is a premium e-Mountain Bike engineered to deliver exceptional performance and versatility across various terrains. Its sophisticated Silver/Black color scheme complements a robust frame architecture, derived from the renowned eOne-Sixty model, yet optimized with a 133mm rear travel and a 140mm front fork. This configuration results in a steeper seat and head angle, significantly enhancing climbing efficiency and maneuverability.
Designed with a mixed wheel setup—29" front paired with a 2.5" tire and 650B rear with a 2.6" tire—the bike achieves superior traction and obstacle clearance, ensuring smooth navigation through challenging trails. The integration of Shimano’s 85NM motor provides consistent and powerful assistance, while the Shimano e-Tube app offers riders the ability to customize power delivery, tailoring the riding experience to their preferences.
Combining precision handling, reliable power, and a comfortable frame design, the Merida eOne-Forty 400 SE MY24 stands as an excellent choice for riders seeking a high-quality, adaptable electric mountain bike. For those interested in exploring more from Merida’s range, consider reviewing other models within the Merida Bikes collection or enhancing your ride with compatible Merida accessories.
What makes the eOne-Forty different from the eOne-Sixty?
The eOne-Forty has a shorter rear travel of 133mm and a 140mm front fork, offering a more agile and playful ride compared to the longer travel of the eOne-Sixty.
Can I customize the motor’s power delivery?
Yes, the Shimano e-Tube app allows you to set two different power profiles, adapting the bike’s assistance for either aggressive riding or relaxed cruising.
| Frameset | Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
|---|---|
| Fork | Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4" |
| Brakes | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Tyres | Merida Expert eTR; 780mm wide; 20mm rise |
| Rear mech | Shimano CUES U6000; GS |
| Wheelset | Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Headset | Merida-8152 |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
| Shifters | Shimano SL -MT500-L dropper post lever and Shimano CUES U6000 |
| Cassette | Shimano LG500 |
| Chain | Shimano LG300; 11-48 teeth; 10 speed |
| Chainset | Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Merida Comp SL with V-mount |
| Seat post | Merida Comp TR; 30.9mm diameter; in-line; M 100mm - L/XL 125mm - XXL 150mm seat post travel |
| Motor | Shimano EN806; 630Wh internal battery, Shimano Steps EP6; 85Nm |
| Battery | 630Wh |
| Rear shock | SR Suntour RS21 Edge Plus 2CR -M6; lockout |
| Tape grips | Merida Expert EC |
