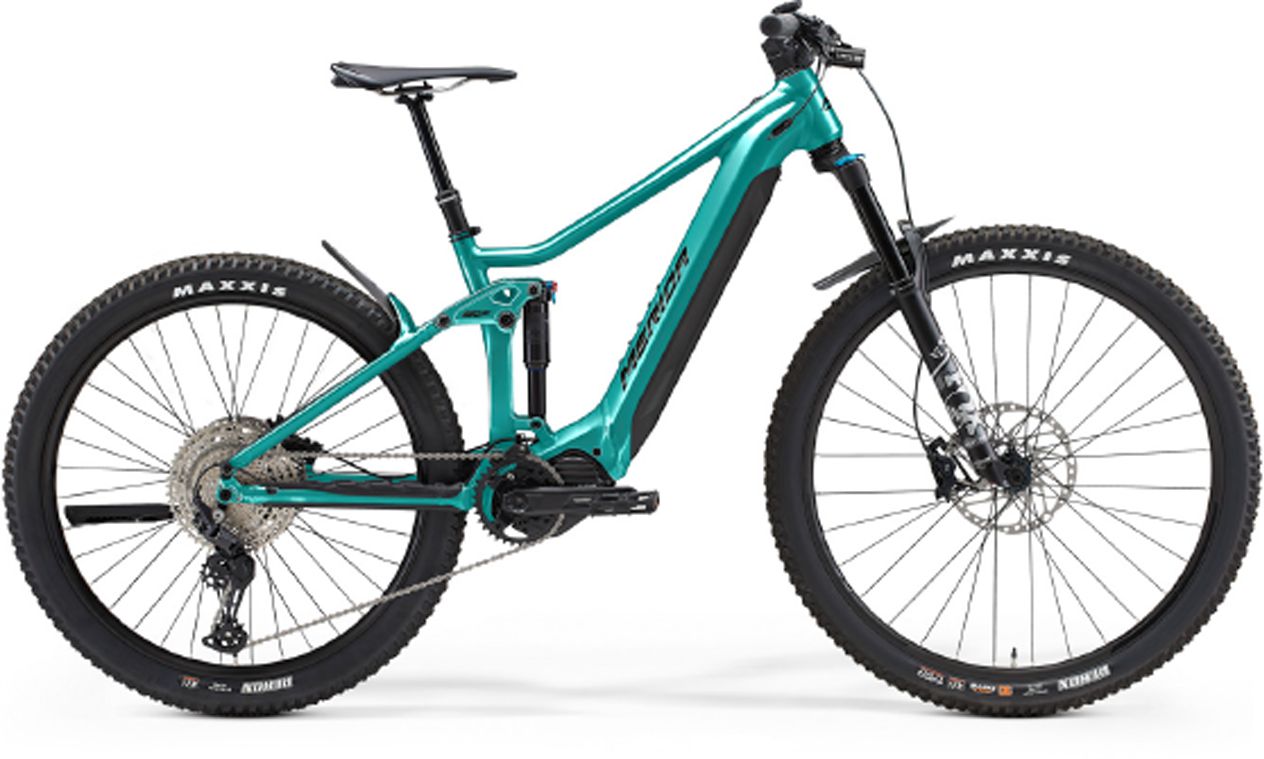

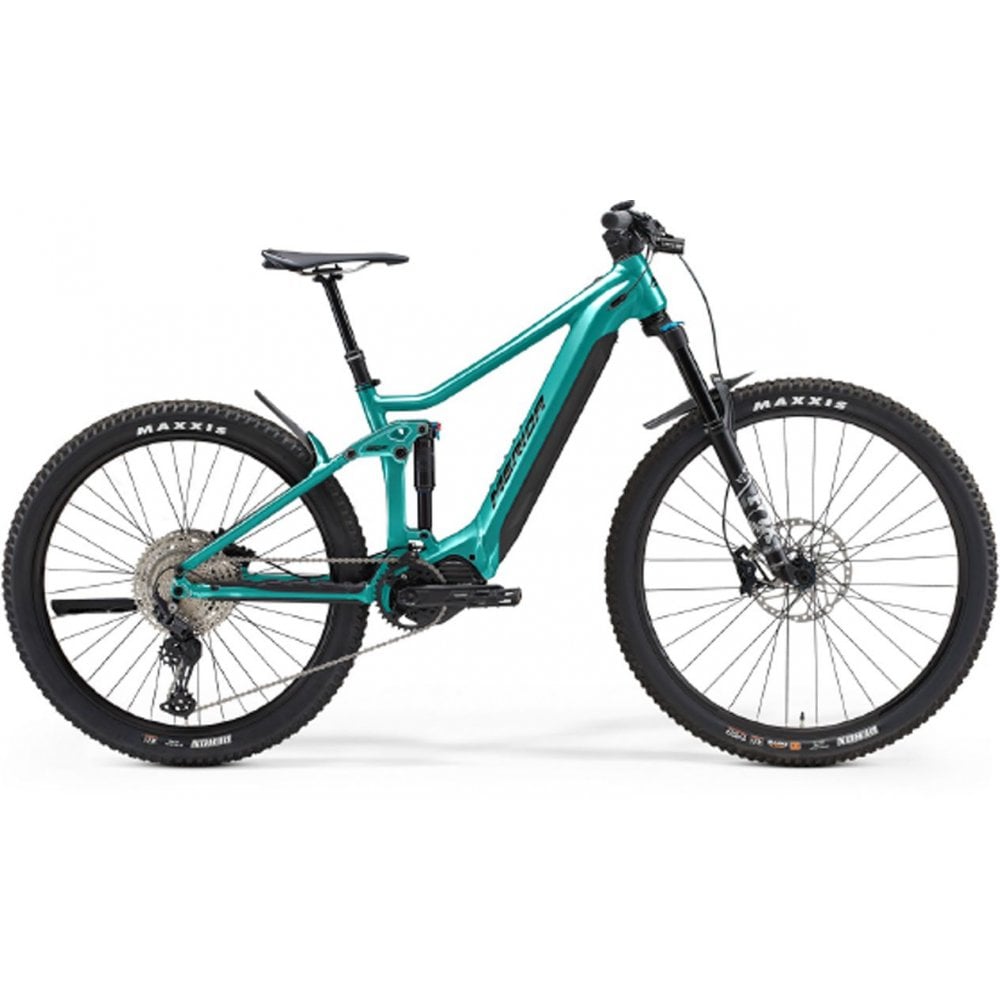

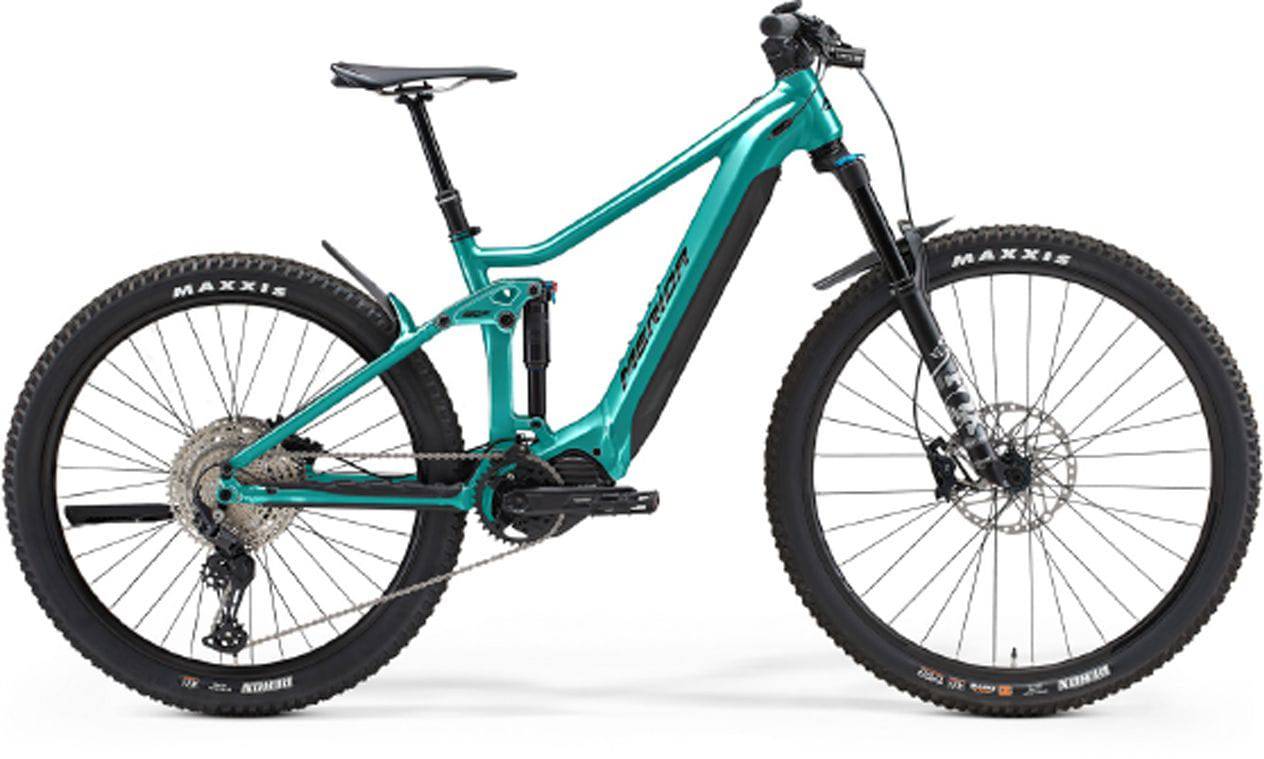

The Merida eOne-Forty 500 Electric Mountain Bike represents a sophisticated blend of innovation and performance, tailored for riders who demand reliability and versatility in their off-road adventures. This model integrates a refined suspension system with a 133mm rear travel and a 140mm front fork, delivering a responsive ride that adapts seamlessly to diverse trail conditions. Its geometry, featuring steeper seat and head angles, enhances maneuverability and rider control, making it an excellent choice for those who seek both precision and enjoyment on challenging terrains.
Equipped with a mixed wheel configuration, the eOne-Forty 500 combines a 29-inch front wheel with a 2.5" tire and a 650B rear wheel fitted with a 2.6" tire. This setup offers an optimal balance between obstacle clearance, traction, and steering accuracy. The integration of the Shimano EP8 motor, renowned for its 85NM torque output, alongside a high-capacity 630Wh battery (with a 504Wh option on the size S frame), ensures extended ride durations and consistent power delivery. Additionally, the customizable power profiles accessible through Shimano’s e-Tube app provide riders with the flexibility to adjust assistance levels according to their specific needs and terrain challenges.
Constructed to meet the standards of discerning riders, the Merida eOne-Forty 500 stands out as a reliable and high-quality electric mountain bike. Its advanced components and thoughtful engineering make it a formidable partner for tackling diverse mountain trails, combining endurance, agility, and control in a single, well-balanced package.
What kind of terrain is the Merida eOne-Forty 500 best suited for?
The eOne-Forty 500 excels on varied mountain terrain, including technical climbs and descents, offering a combination of agility, traction, and rider confidence on challenging trails.
Can I customize the power settings on this e-Mountain bike?
Yes, the Shimano e-Tube app enables customization of two distinct power profiles, allowing riders to tailor assistance levels for either aggressive riding or smooth cruising.
| Frameset | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
|---|---|
| Fork | Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6" |
| Brakes | Hydraulic disc |
| Tyres | Maxxis Rekon; 29" x 2.4"; Dual; wire bead - Maxxis Rekon; 27.5" x 2.6"; EXO; wire bead |
| Rear mech | Shimano Deore RDM5100 11 |
| Wheelset | Merida Comp TR; 29mm inner rim width; Aluminium |
| Headset | Merida-8152 |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
| Shifters | Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever |
| Cassette | KMC e11S EPT |
| Chain | KMC e11S EPT |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Merida Comp SL; V-mount |
| Seat post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL) |
| Motor | 630 Wh |
| Rear shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
| Tape grips | Merida Expert EC |
