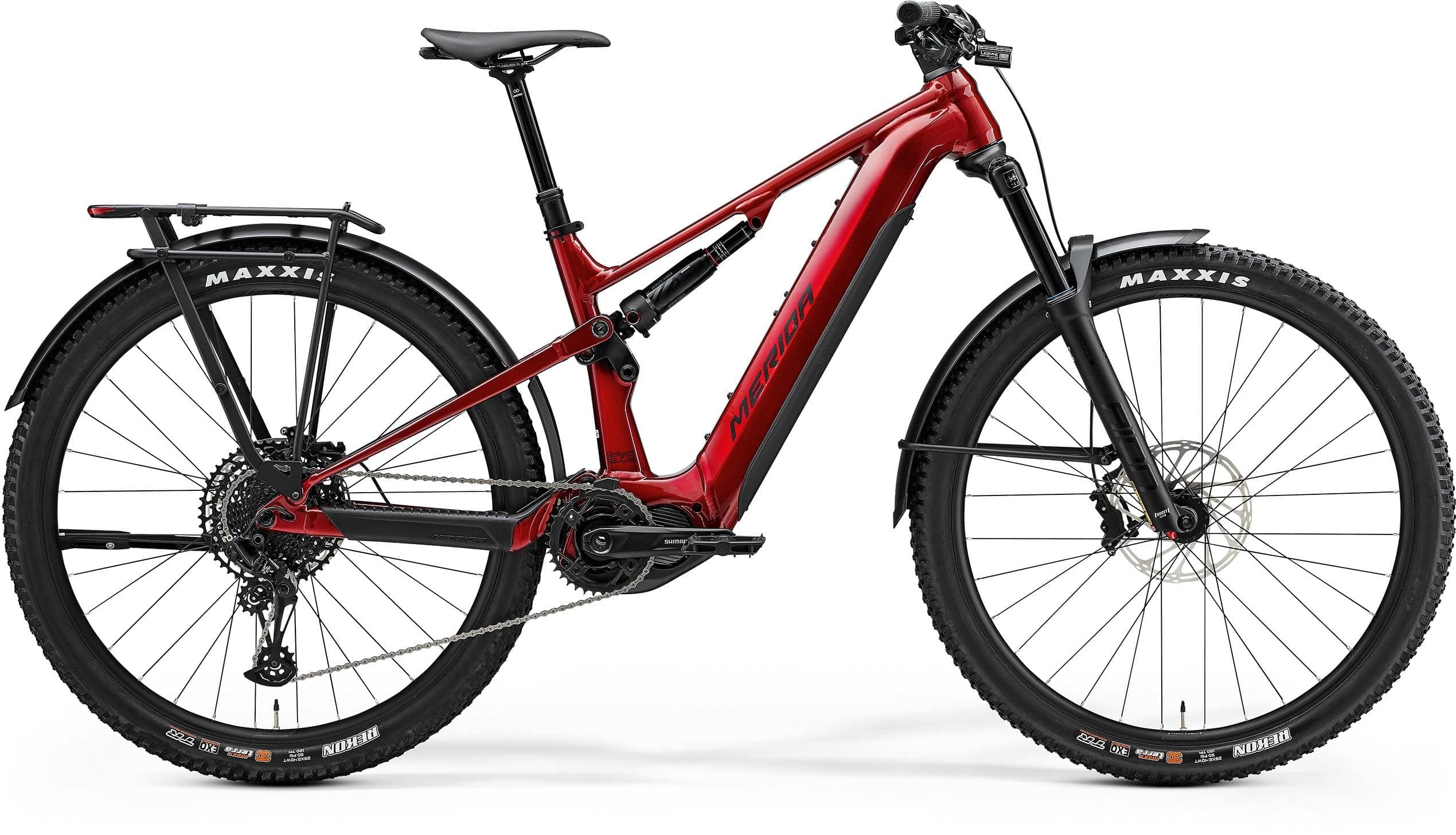

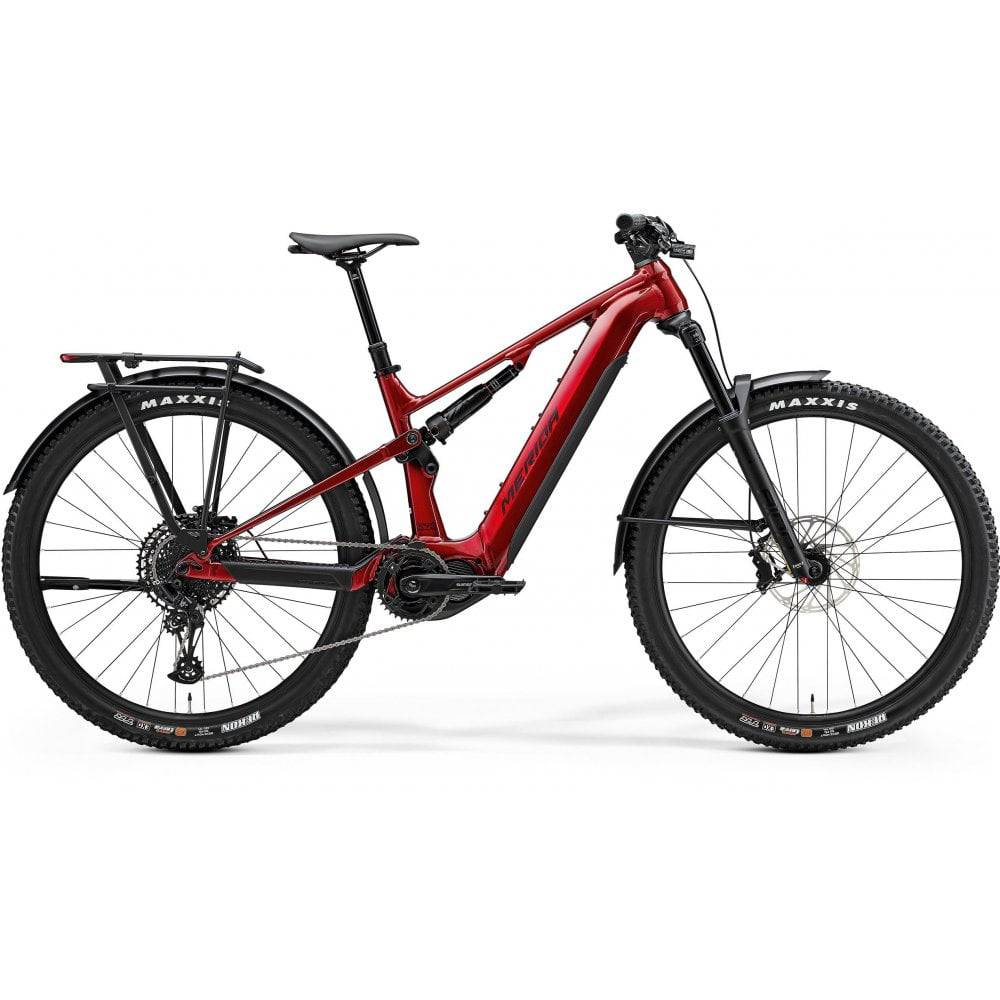

The Merida eOne-Forty 675 EQ e-Mountain Bike represents a pinnacle of innovation and reliability in the electric mountain bike category. Equipped with a powerful 750 Wh battery and the option to add a 360 Wh range extender, it ensures riders can embark on extended journeys without concern for power depletion. Its advanced suspension system, featuring 143 mm rear travel and 150 mm front travel, delivers exceptional shock absorption and control, allowing for confident navigation across rugged trails and challenging terrains.
Incorporating design elements from Merida’s award-winning trail and enduro models, the eOne-Forty 675 EQ benefits from the AGILOMETER sizing system, which offers tailored geometry adjustments. This enables riders to optimize handling characteristics to their preference, whether prioritizing stability with a longer frame or agility with a shorter one. The bike’s 29-inch wheels and SRAM Eagle 70 drivetrain further enhance performance, providing smooth shifting and traction for diverse riding conditions.
Built for both men and women, this unisex e-mountain bike is engineered to meet high standards of durability and versatility. Its disc brakes ensure reliable stopping power in all weather conditions, while the robust construction supports a variety of uses, from demanding mountain trails to daily urban commuting. As part of Merida’s extensive family of bikes, the eOne-Forty 675 EQ stands out as a dependable choice for riders seeking quality and performance in an electric mountain bike.
How far can I ride on a single charge?
The integrated 750 Wh battery offers substantial range, which can be extended with the optional 360 Wh range extender to accommodate longer rides and more demanding routes.
Is this bike suitable for riders new to e-mountain biking?
Yes, the eOne-Forty 675 EQ’s adjustable geometry and stable handling characteristics make it accessible and manageable for riders of all experience levels.
| Frameset | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8" |
|---|---|
| Fork | SR Suntour SF25-AION 36X-Boost axle standard |
| Brakes | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Tyres | Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; 3C EXO MaxxTerra - Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; TR 3C EXO MaxxTerra |
| Rear mech | SRAM Eagle 70 |
| Wheelset | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| Headset | Acros ICR Merida external neck with Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
| Shifters | Limotech RM10 (For SRAM MMX) dropper lever and SRAM Eagle 70 Transmission Shifter |
| Cassette | SRAM Eagle 70 - Flattop |
| Chain | SRAM PG-1270 Eagle; 10-50 teeth; 12 Speed |
| Chainset | SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Merida Comp SL; 28% recycled material; V-mount; including Merida minitool |
| Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel |
| Motor | Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm |
| Battery | 750Wh |
| Rear shock | Rock Shox Super Deluxe Select |
| Tape grips | Merida Expert EC |
