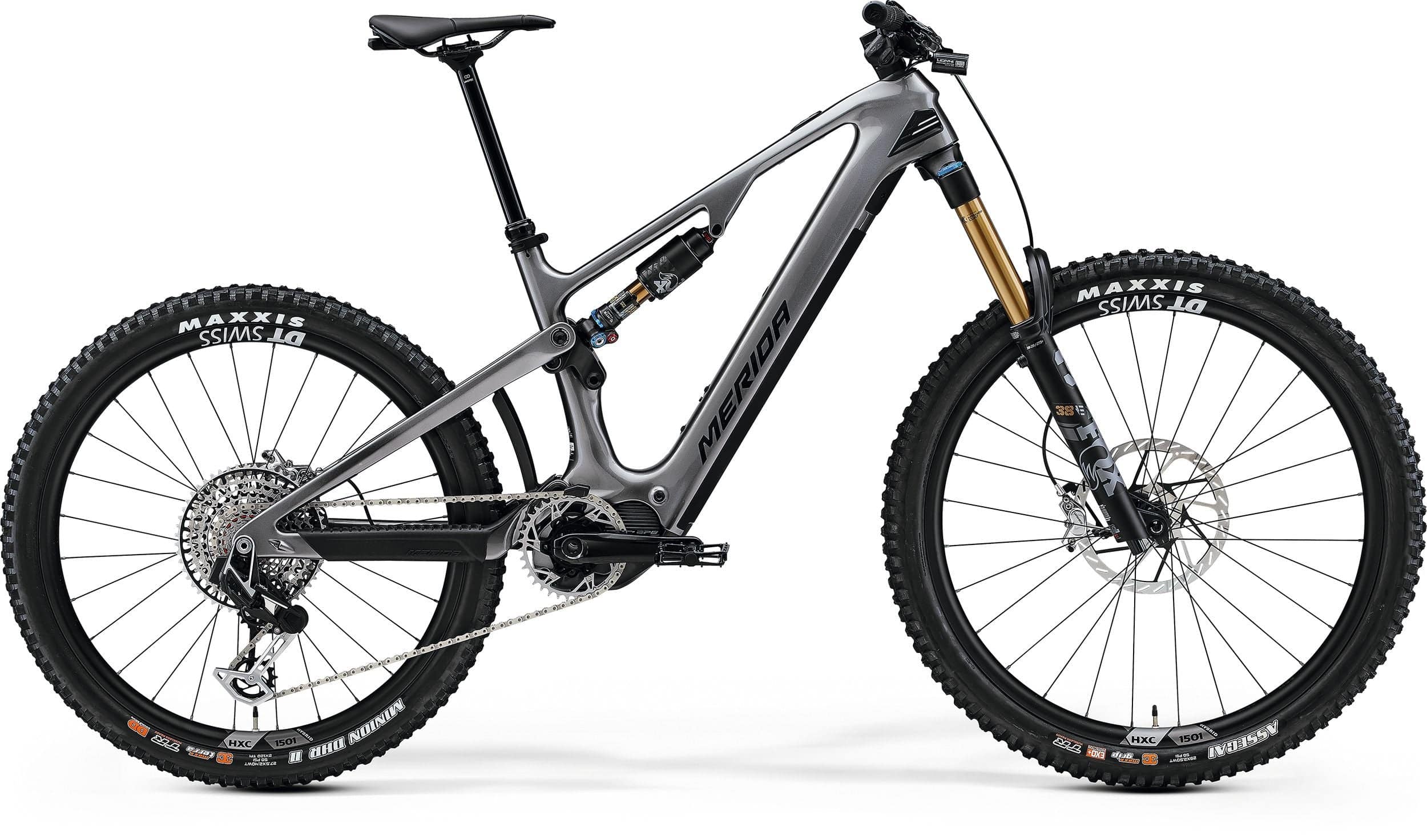

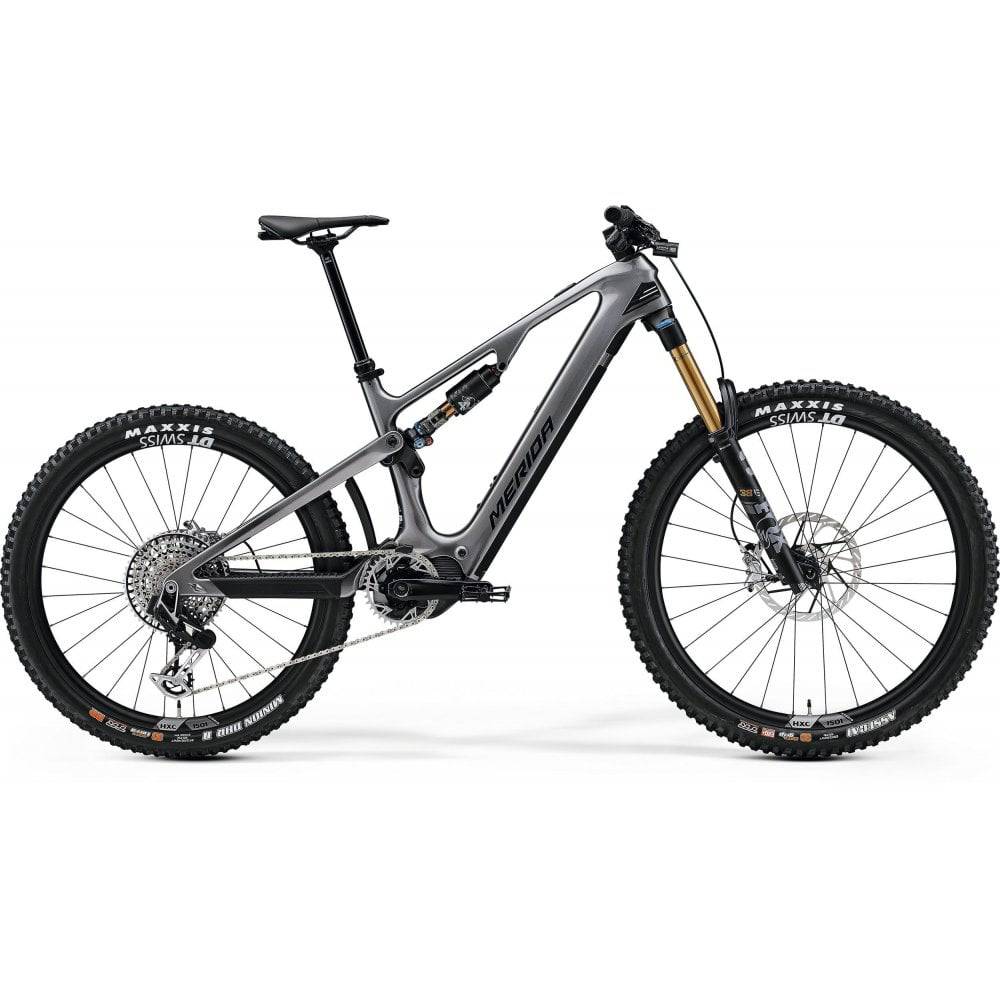

The Merida eOne-Sixty 10K Full Carbon e-Mountain Bike represents a pinnacle of innovation and engineering in the electric mountain bike segment. Constructed with a robust yet lightweight full carbon frame, it integrates a high-performance motor and a 600 Wh battery to provide sustained power and endurance on demanding trails. The advanced suspension system, featuring 170 mm travel at the front and 174 mm at the rear, ensures superior shock absorption and precise handling, allowing riders to confidently navigate technical descents and steep ascents alike.
Incorporating Merida’s renowned FAST kinematic suspension and Agilometer sizing technology, this e-mountain bike delivers a tailored fit and dynamic responsiveness for riders of varying statures. The innovative flexstay suspension design minimizes maintenance requirements while enhancing ride quality. Additionally, the flip chip mechanism offers versatility by enabling seamless transitions between a mixed wheel setup—29" front and 27.5" rear—and a full 29er configuration, all without compromising the bike’s geometry. Complementing these features is a travel-adjustable dropper post (30-230 mm), which allows riders to fine-tune their riding position for optimal stability and agility based on terrain and personal preference.
How long does the battery last on a single charge?
The integrated 600 Wh battery provides substantial range for typical trail rides, with the possibility to extend this range by adding a 360 Wh range extender for longer excursions.
Is it possible to switch between different wheel sizes?
Yes, the bike’s flip chip design facilitates easy switching between a mixed wheel configuration (29" front, 27.5" rear) and a full 29er setup, maintaining optimal geometry and ride quality.
| Frameset | Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
|---|---|
| Fork | FOX 38 Factory eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6" |
| Brakes | SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor |
| Tyres | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra |
| Rear mech | SRAM XX Eagle Transmission AXS |
| Wheelset | Part of wheelset - DT Swiss HXC 1501; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included) |
| Headset | Acros ICR Merida integrated neck with Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
| Shifters | Limotech RM10 (For SRAM MMX) dropper lever and SRAM AXS Pod Controller |
| Cassette | SRAM XX Eagle - Flattop |
| Chain | SRAM XX Eagle Transmission; 10-52; 12 Speed |
| Chainset | SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM900 crank; 165mm all sizes; with Merida chain guide |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Proxim Nembo Triox; V-mount adapter; including Merida minitool |
| Seat post | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Motor | Trendpower TPS-C15-58SD; 600Wh integrated, Shimano EP801; 85Nm |
| Battery | 600Wh |
| Rear shock | FOX Factory Float X2; 2 Pos Lever |
| Tape grips | Merida Expert EC |
