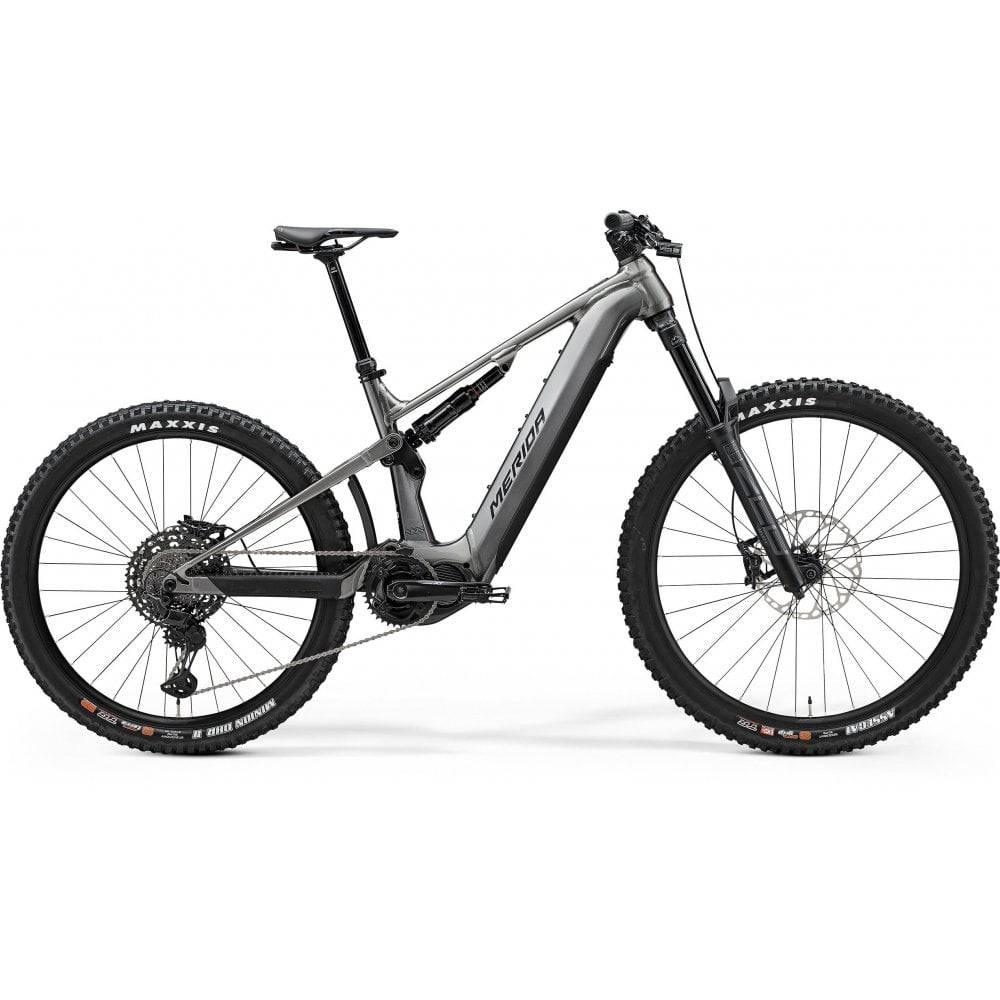

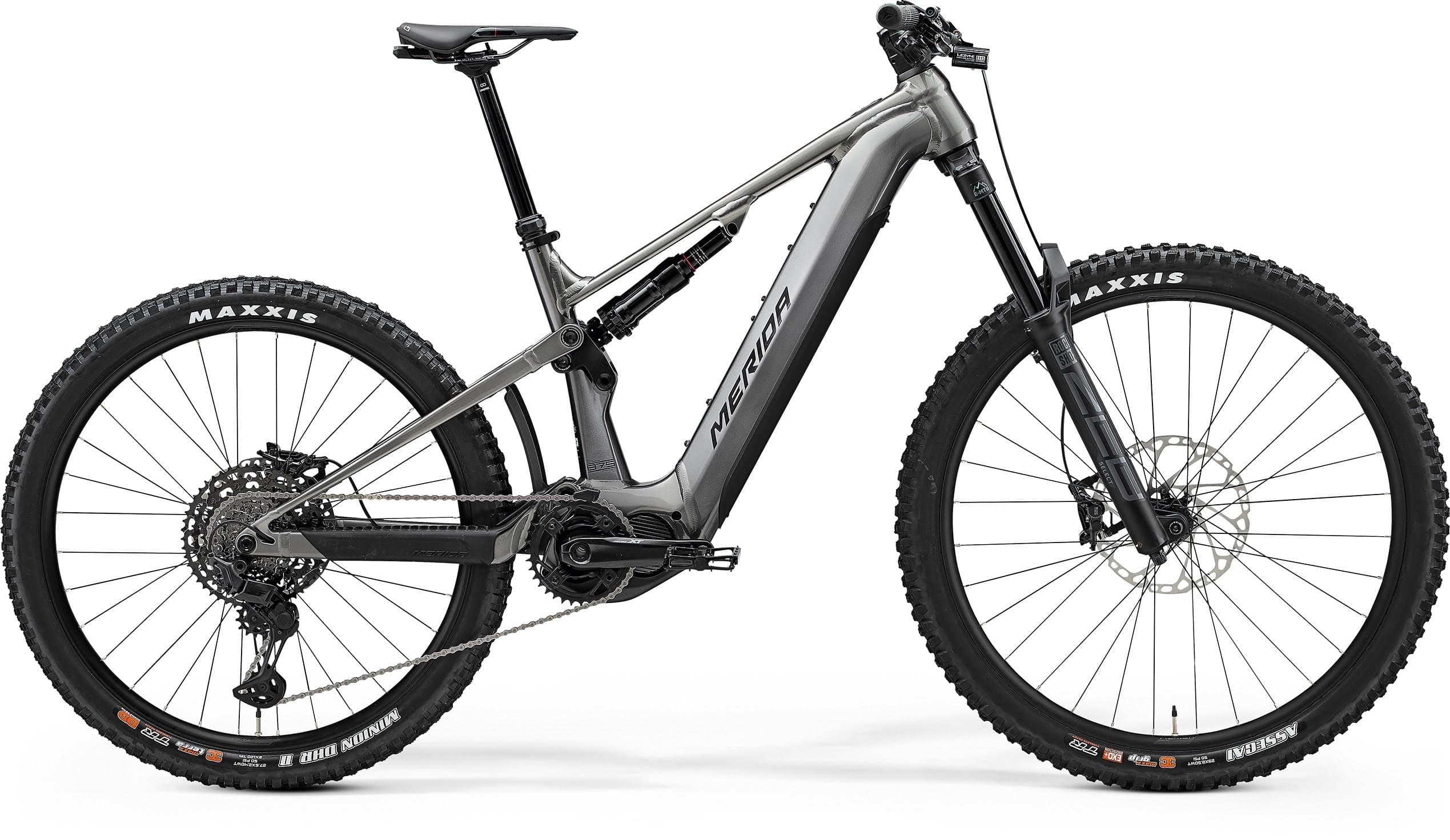

The Merida eOne-Sixty 675 Electric Mountain Bike represents a pinnacle of innovation and engineering in the realm of e-mountain biking. Equipped with a powerful Shimano EP801 motor and a removable 750 Wh battery, this bike ensures that riders experience extended, reliable power delivery for demanding trail adventures. Its aluminium frame is meticulously designed to balance strength and weight, providing a durable yet responsive platform for all types of terrain.
Incorporating advanced suspension technology, the eOne-Sixty 675 features the FAST kinematic suspension system and flexstay suspension with size-tuned progression, which together offer superior adaptability and control. The geometry, inspired by Merida’s acclaimed eOne-Sixty and One-Sixty models, enhances handling precision, allowing riders to confidently tackle steep climbs and technical descents. Additionally, the innovative flip chip design provides flexibility in wheel configuration, enabling users to optimize their bike setup for varied trail conditions without compromising stability or performance.
Customization is a core aspect of the eOne-Sixty 675, with a travel-adjustable dropper post that allows riders to select between a longer frame for stable handling or a shorter frame for increased agility. This versatility makes the bike suitable for a wide range of riders and trail challenges. For those seeking to extend their ride duration, the option to add a 360 Wh range extender further enhances the bike’s endurance capabilities, making it a dependable companion for long-distance and technical mountain biking excursions.
How far can I ride on a single battery charge?
The removable 750 Wh battery provides ample range for extended rides, and you can extend your journey further with an optional 360 Wh range extender.
Can I switch between wheel sizes easily?
Yes, the flip chip design allows you to switch between mixed 29" front/27.5" rear wheels or a full 29er setup without affecting the bike's geometry or handling.
| Frameset | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
|---|---|
| Fork | Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6" |
| Brakes | Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
| Tyres | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra |
| Rear mech | Shimano XT RDM5130 LinkGlide 10 |
| Wheelset | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Headset | Acros ICR Merida external neck with Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
| Shifters | Shimano SL-MT500-L dropper lever with Shimano XT M5130-10 shifter |
| Cassette | Shimano LG500 |
| Chain | Shimano LG400; 11-43 teeth; 10 Speed |
| Chainset | FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Merida Comp SL; 28% recycled material; V-mount; including Merida minitool |
| Seat post | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel |
| Motor | Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm |
| Battery | 750Wh |
| Rear shock | Marzocchi Bomber Air; platform |
| Tape grips | Merida Expert EC |
