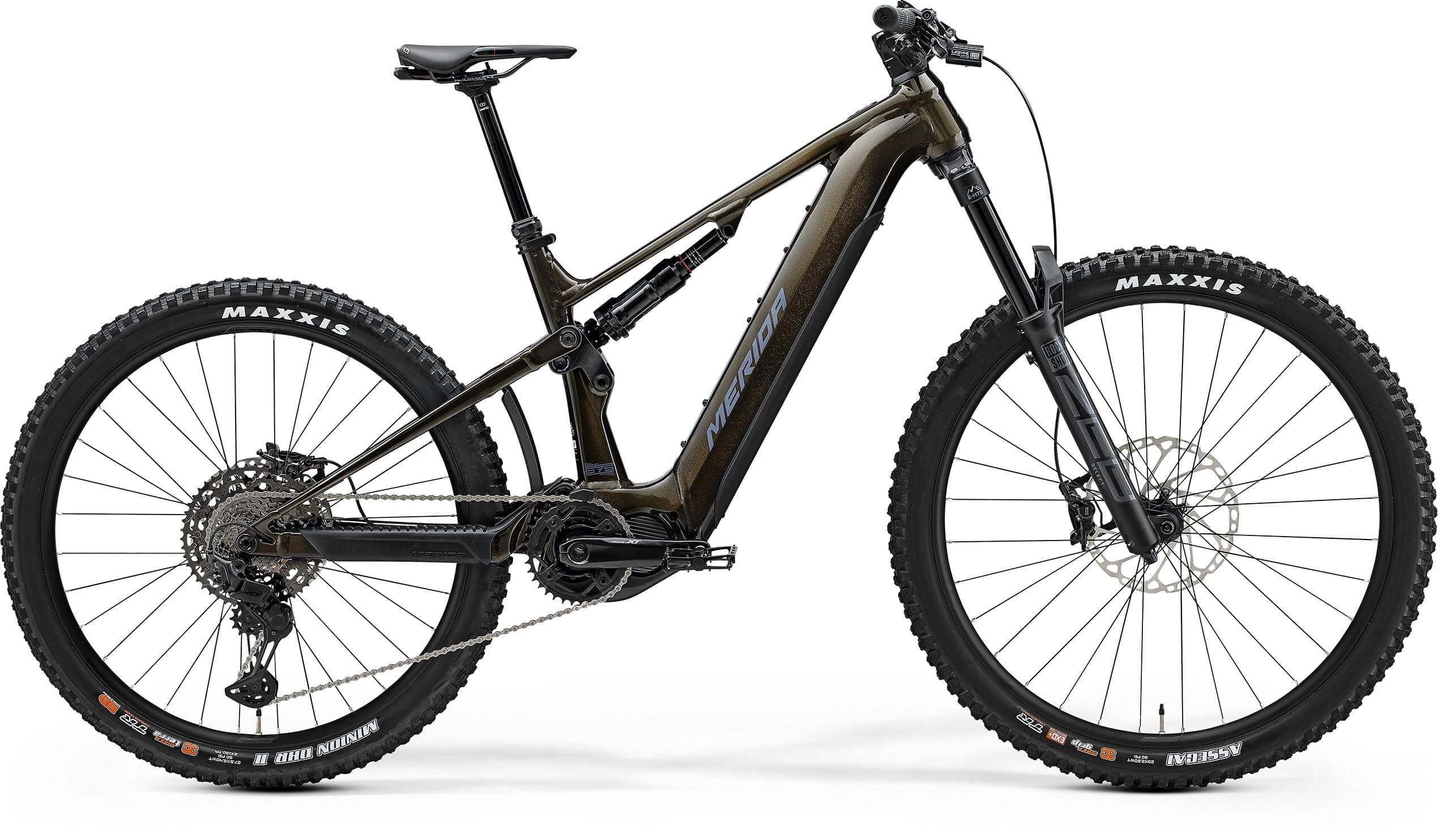

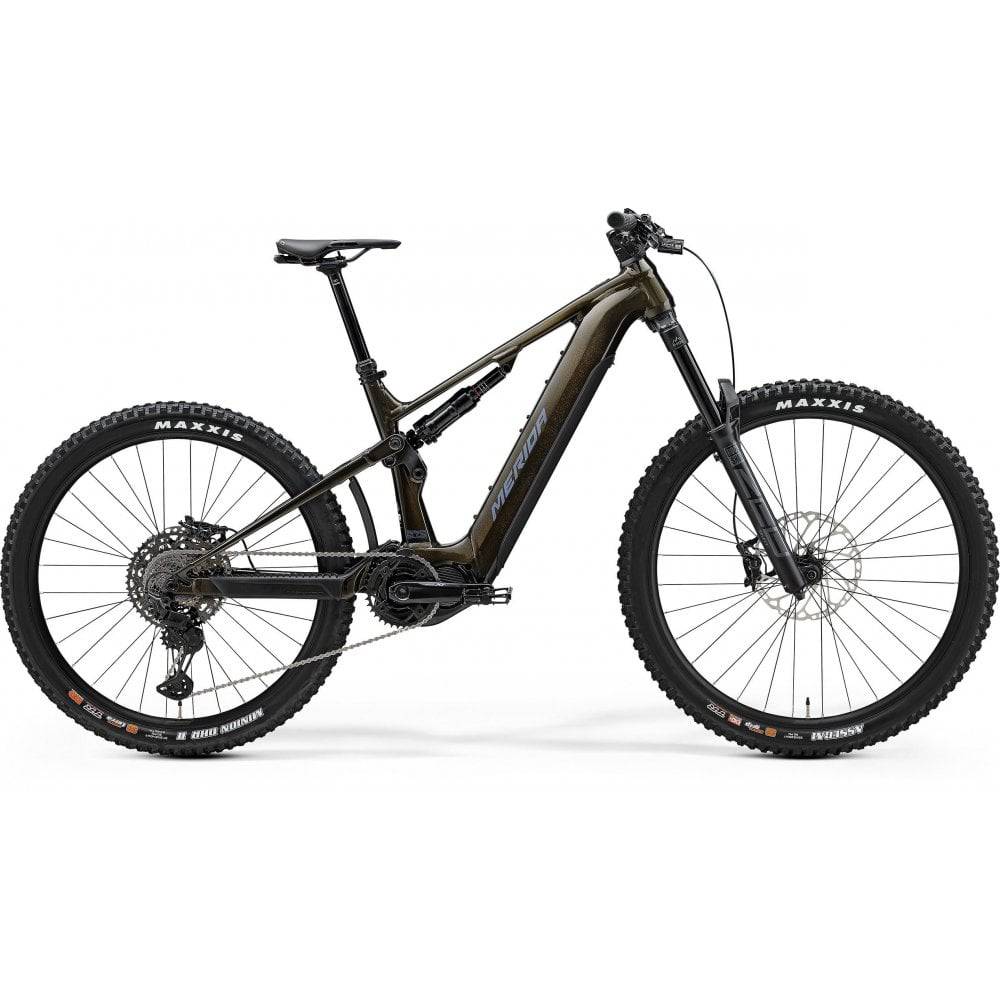

The Merida eOne-Sixty 875 e-Mountain Bike embodies the pinnacle of electric mountain biking technology, combining robust construction with advanced components to deliver a reliable and high-performance ride. Crafted from a durable aluminium frame, this model integrates the powerful Shimano EP801 drive unit with a removable 750 Wh battery, ensuring sustained energy and efficiency for extended trail adventures. Its design philosophy is rooted in the acclaimed One-Sixty series, offering a blend of aggressive geometry and precise handling that excels in both challenging ascents and rapid descents.
Featuring Merida’s proprietary FAST kinematic suspension system alongside a flexstay setup optimized for riders of varying sizes, the eOne-Sixty 875 guarantees responsive and smooth trail navigation. The adjustable flip chip mechanism provides the flexibility to configure the bike with mixed 29" front and 27.5" rear wheels or a full 29er setup, preserving optimal geometry for demanding enduro conditions. Additionally, the travel-adjustable dropper post enhances rider control and comfort, allowing seamless transitions between stable and nimble handling tailored to individual preferences.
How long does the battery last on a single charge?
The removable 750 Wh battery provides an extensive range, which can be further extended with the optional 360 Wh range extender for longer rides.
Can I switch between wheel sizes easily?
Yes, the flip chip design allows you to run mixed-size wheels or switch to a full 29er setup without compromising the bike’s geometry or handling.
| Frameset | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
|---|---|
| Fork | Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8" |
| Brakes | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
| Tyres | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra |
| Rear mech | Shimano XT RDM8130 LinkGlide 11 |
| Wheelset | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Headset | Acros ICR Merida external neck with Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
| Shifters | Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter |
| Cassette | Shimano LG500 |
| Chain | Shimano LG700; 10-50 teeth; 11 Speed |
| Chainset | FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide |
| Bottom bracket | Part of Shimano Steps motor |
| Saddle | Proxim Nembo Steel; V-mount adapter; including Merida minitool |
| Seat post | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Motor | Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm |
| Battery | 750Wh |
| Rear shock | Rock Shox Super Deluxe Select |
| Tape grips | Merida Expert EC |
