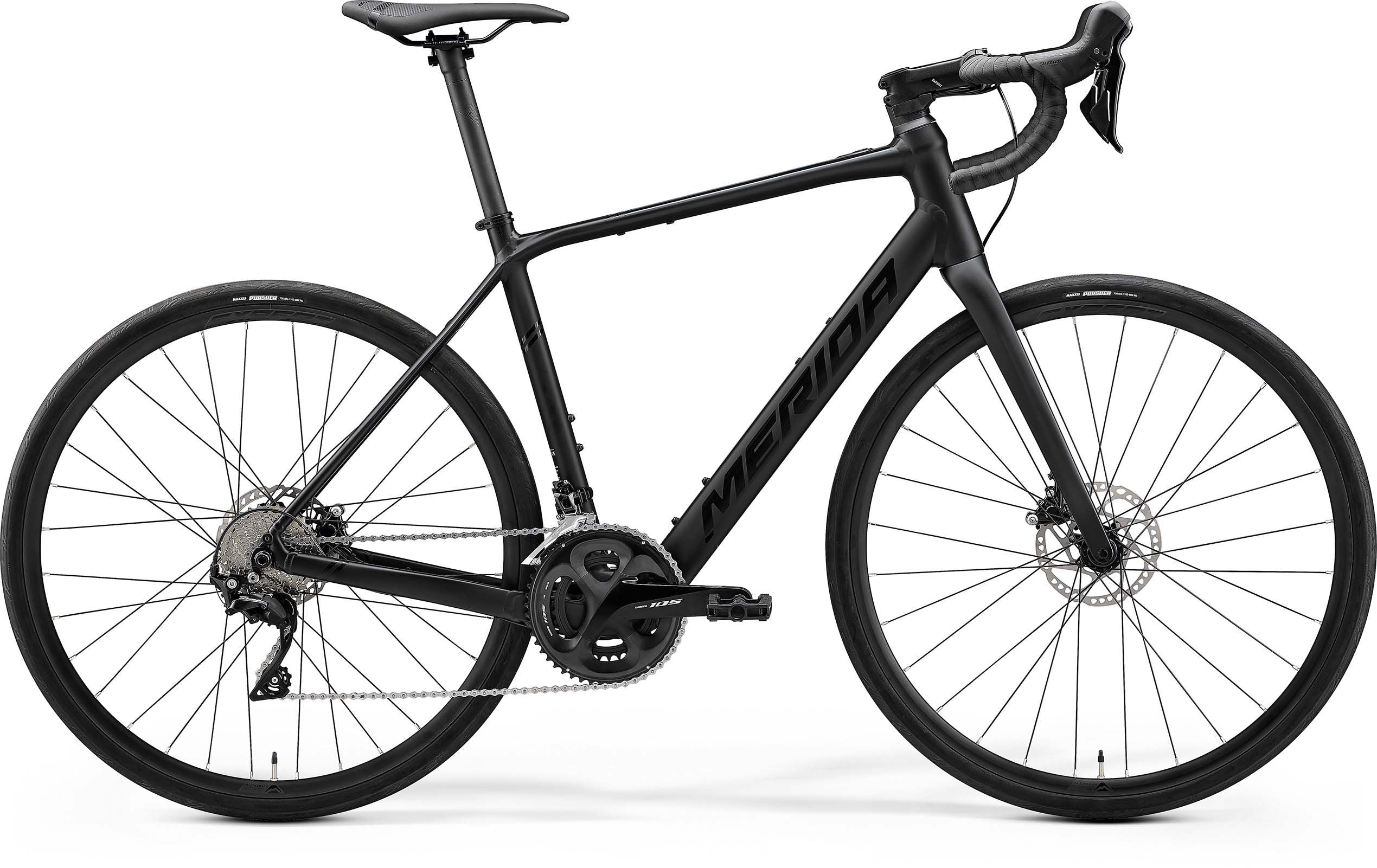

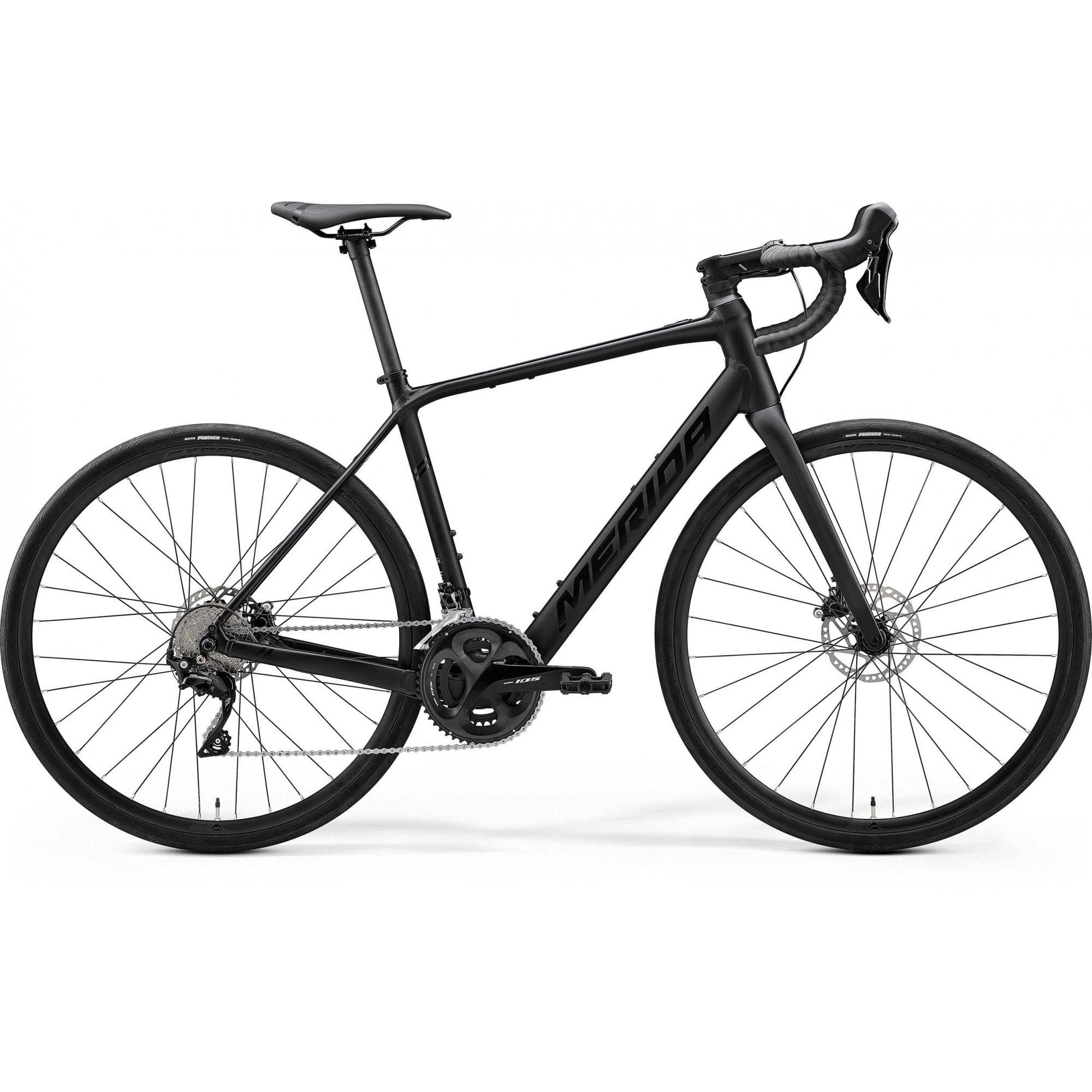

The Merida eScultura 400 Electric Road Bike represents a sophisticated fusion of traditional road cycling aesthetics with cutting-edge electric technology. Crafted to maintain the sleek profile of a classic road bike, it incorporates the Mahle ebikemotion system to deliver a seamless pedal-assist experience. This integration allows riders to enjoy enhanced power and endurance, particularly beneficial when tackling challenging inclines or extended rides, all while preserving the bike's lightweight and responsive nature.
Equipped with the renowned Shimano 105 R7000 groupset and hydraulic disc brakes, the eScultura 400 ensures precise gear changes and dependable braking performance under diverse weather and terrain conditions. The lightweight aluminium frame combined with a carbon fork enhances agility and responsiveness, providing a ride quality comparable to non-assisted bikes. The discreetly housed 250Wh battery and 40Nm rear hub motor contribute to an aerodynamic design without compromising functionality.
Riders benefit from intuitive control via the iWoc button, allowing on-the-fly adjustments to assistance levels, complemented by a dedicated app that offers customization and detailed ride analytics. Practicality is further enhanced through mounts for mudguards, racks, and a subtle kickstand, while the clean cable routing preserves the bike’s streamlined appearance. This combination of features makes the eScultura 400 a versatile choice for both commuting and recreational cycling.
How long does the battery last on a single charge?
The integrated 250Wh battery typically provides assistance for up to 60-80 kilometers depending on riding conditions and level of support used.
Can I ride the bike without the electric assist?
Yes, the eScultura 400 is fully functional as a regular road bike and offers minimal drag when the motor is not engaged.
| Frameset | Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
|---|---|
| Fork | Mission CX CF3; carbon. Max. tyre size: 700 x 42c |
| Brakes | Hydraulic disc |
| Tyres | Maxxis Pursuer 700 x 32c; Kevlar bead, folding - Maxxis Pursuer 700 x 32c; Kevlar bead, folding |
| Rear mech | Shimano 105; GS |
| Wheelset | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Headset | VP-MH-P16 |
| Stem | Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
| Handlebar | Merida Expert CW; aluminium; Width: 400mm (XS/S), 420mm (M/L), 440mm (XL) |
| Shifters | Shimano 105 |
| Cassette | KMC e11s |
| Chain | KMC e11s |
| Chainset | Shimano 105; 50-34 tooth chainset with 170mm - XS/S/SM/ML, 175mm - L/XL length crank |
| Bottom bracket | Shimano BSA |
| Saddle | Merida Comp SL; V-mount |
| Seat post | Merida Expert CC; carbon; 30.9mm diameter; in-line |
| Motor | 250 Wh |
| Tape grips | Merida Expert |
| Front mech | Shimano 105 |
