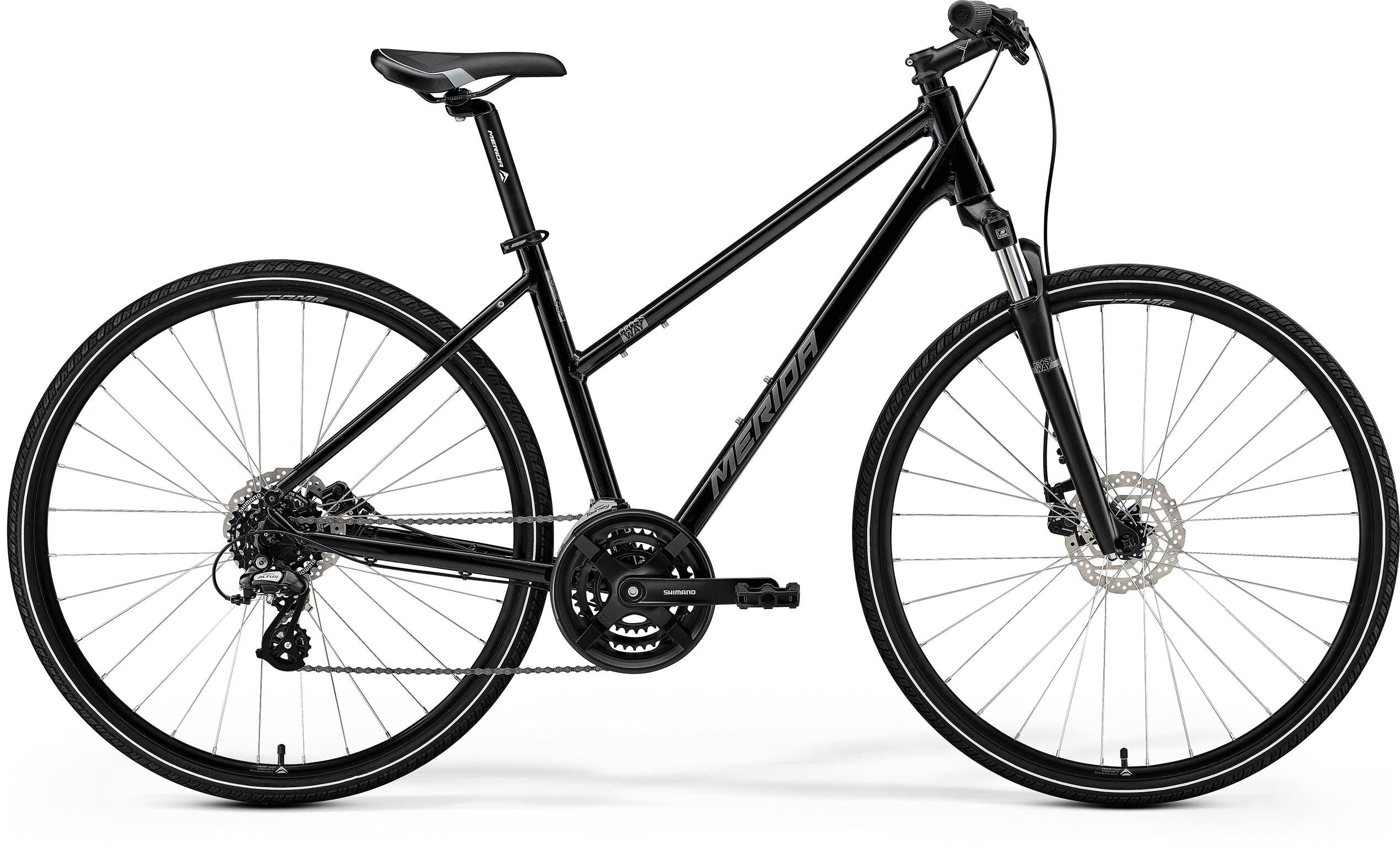

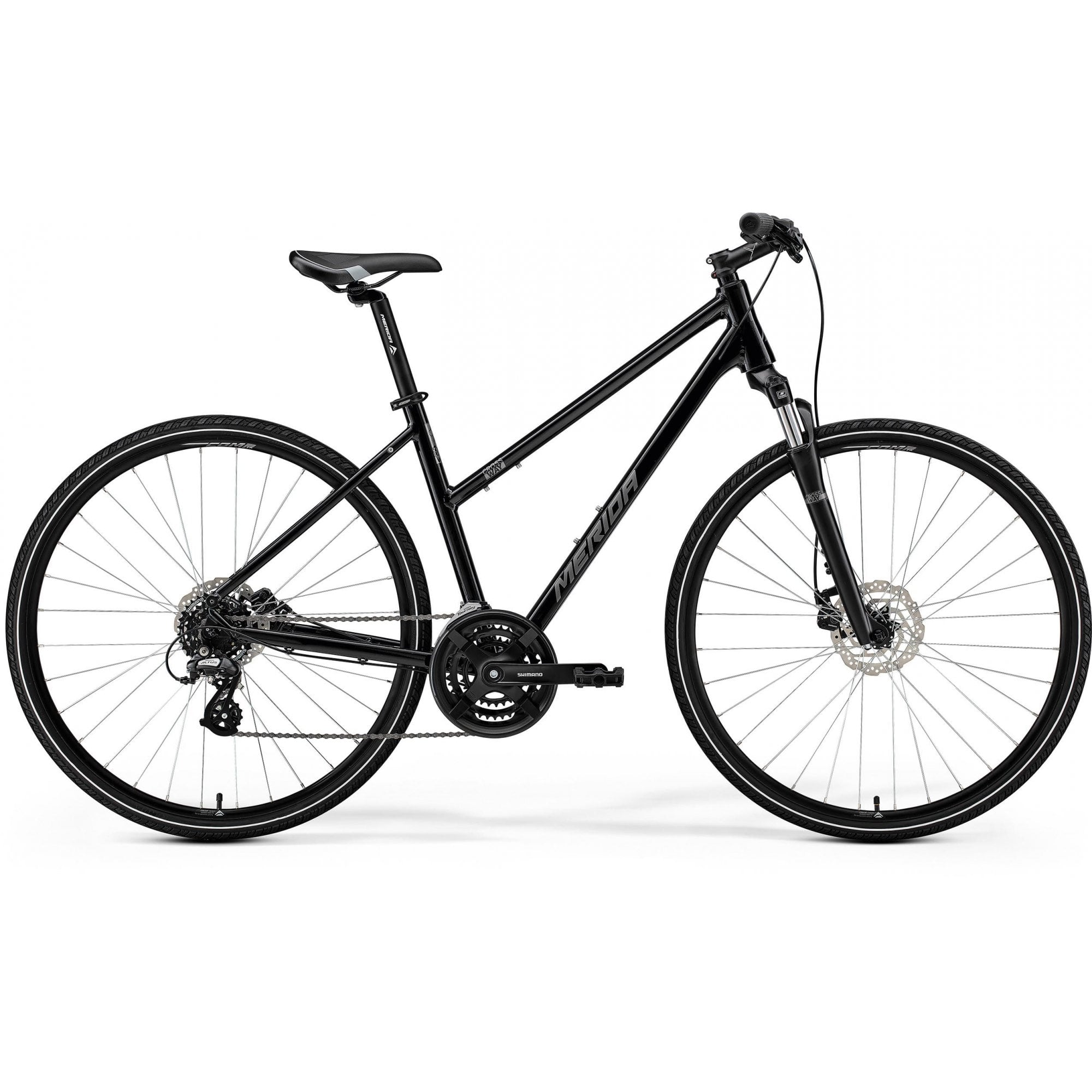

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Frameset | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
---|---|
Fork | SR Suntour NEX DS; Coil; 63mm travel; Max tyre size: 700x50C |
Brakes | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
Tyres | Merida K1171; 700 x 40C; wire bead - Merida K1171; 700 x 40C; wire bead |
Rear mech | Shimano RD-M310-7 |
Wheelset | Merida CC; 17mm inner rim width; aluminium |
Headset | Merida M2345 |
Stem | Merida Comp TK; aluminium; 25.4mm diameter; 7 degree rise - Length - 100mm (all sizes) |
Handlebar | Merida CC; steel; 620mm wide; 30mm rise |
Shifters | Shimano ST-EF500 |
Cassette | Sunrace CNM84 |
Chain | Shimano CS-HG200-7; 12-32 teeth; 7 speed |
Chainset | Shimano TY301; 48-38-28 tooth chainset; Aluminium; Crank length - 170mm (2XS/SM), 175mm (ML and up) |
Bottom bracket | Shimano BB-UN101 73-123 |
Saddle | Merida Cross Sport |
Seat post | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
Tape grips | Merida EC |
Front mech | Shimano FD-TY510-3 |
