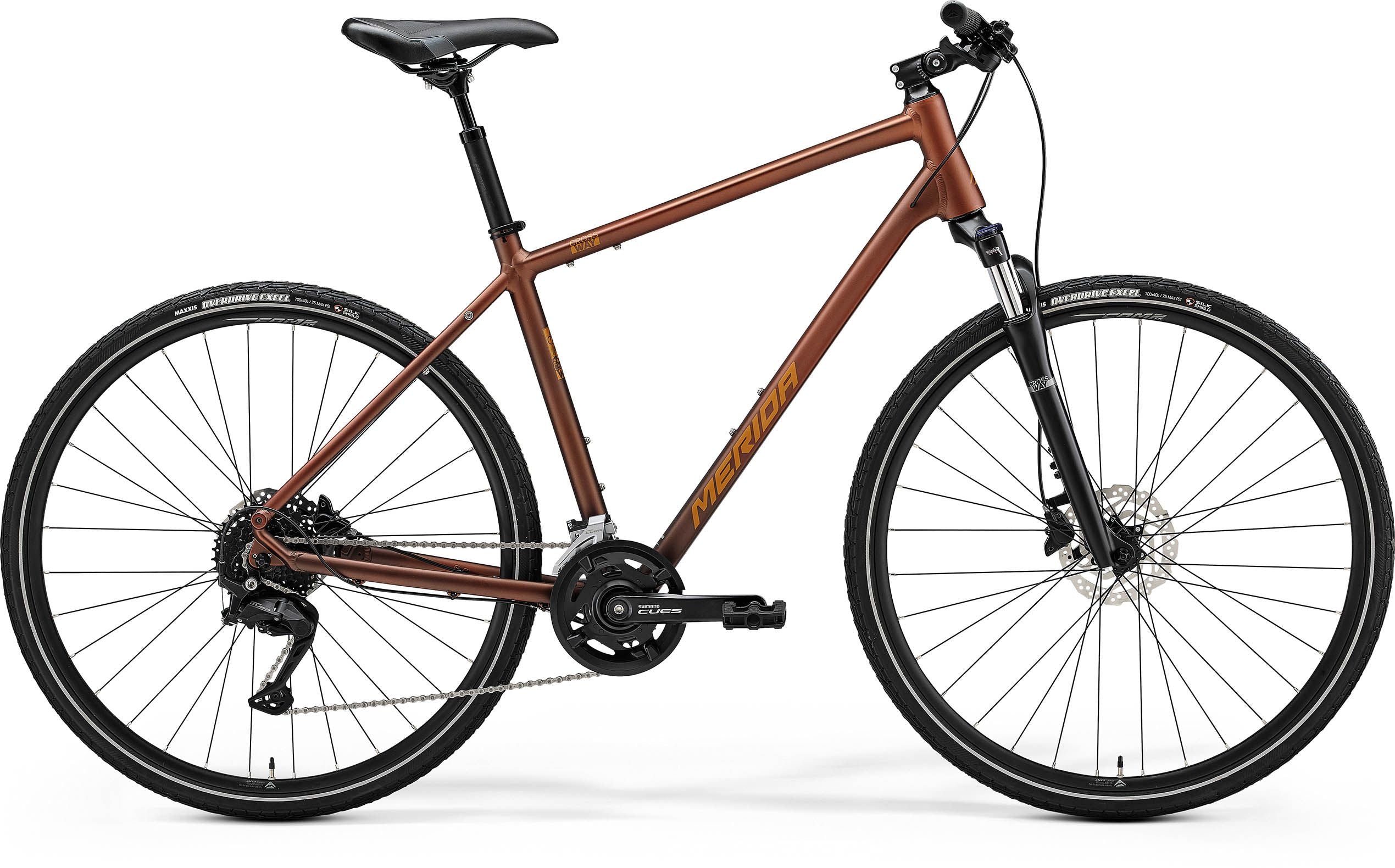

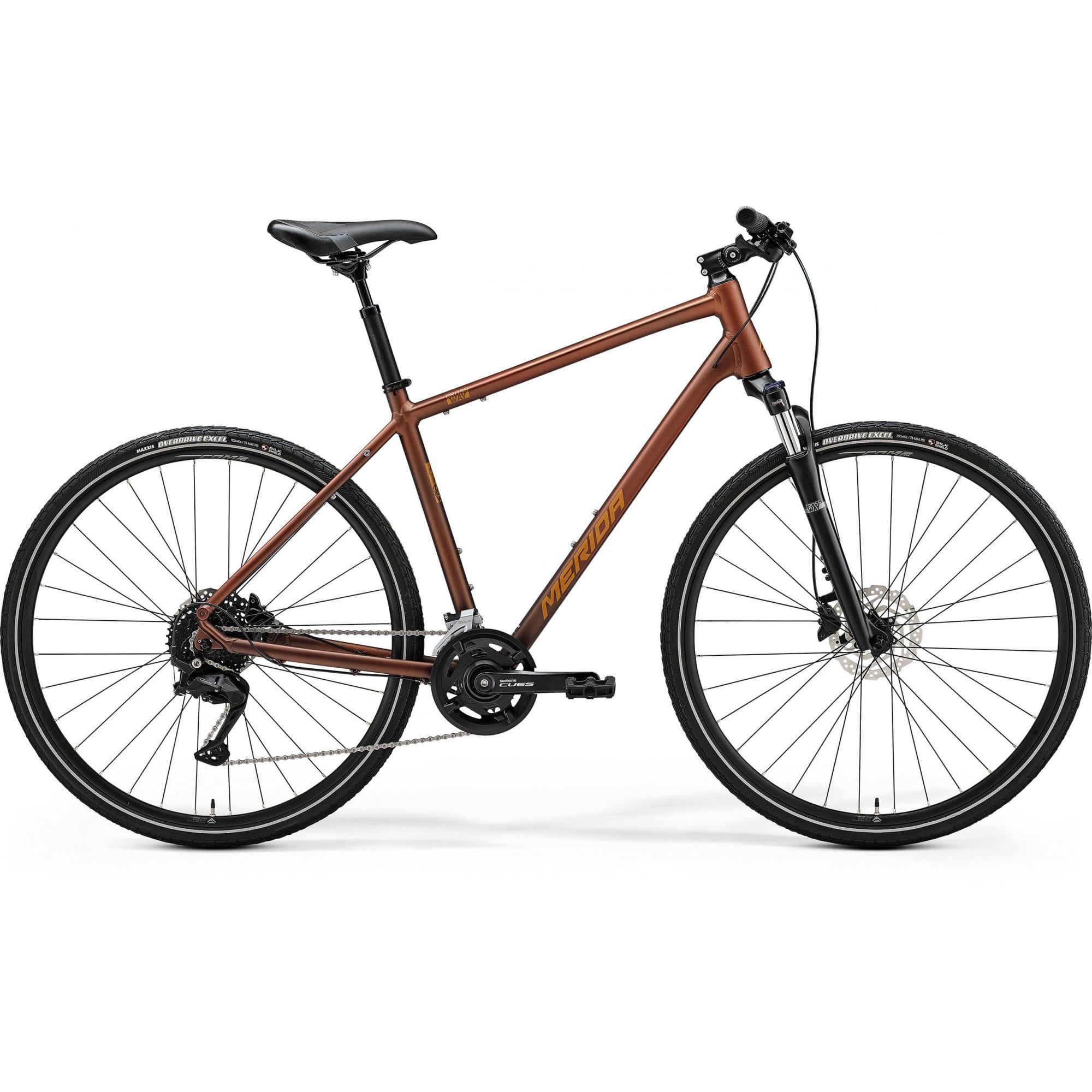

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
| Frameset | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
|---|---|
| Fork | Suntour NEX HLO; Coil; 63mm ; Lockout; Max tyre size: 700 x 48C |
| Brakes | Merida Comp TK; aluminium; 31.8mm diameter; adjustable. Length 95mm (XS,S,M), 110mm (L,XL) |
| Tyres | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Rear mech | Shimano CUES U3020 |
| Wheelset | Merida Comp TK; 20mm inner rim width; 17mm rim depth; aluminium |
| Headset | Merida M2346 Neck |
| Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable. Length 95mm (XS,S,M), 110mm (L,XL) |
| Handlebar | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Shifters | Shimano CUES U4000 |
| Cassette | Shimano LG500 |
| Chain | Shimano LG300; 11-36 teeth; 9 speed |
| Chainset | Shimano CUES U4000; 40-26 tooth chainset. Crank length: 170mm (XS,S), 175mm (M,L,XL) |
| Bottom bracket | Shimano BB-UN101; 73mm |
| Saddle | Merida Cross Sport |
| Seat post | Merida TK; 30.9mm diameter; 10mm lay back; 45mm travel |
| Tape grips | Merida Expert EC |
| Front mech | Shimano CUES U4000 |
