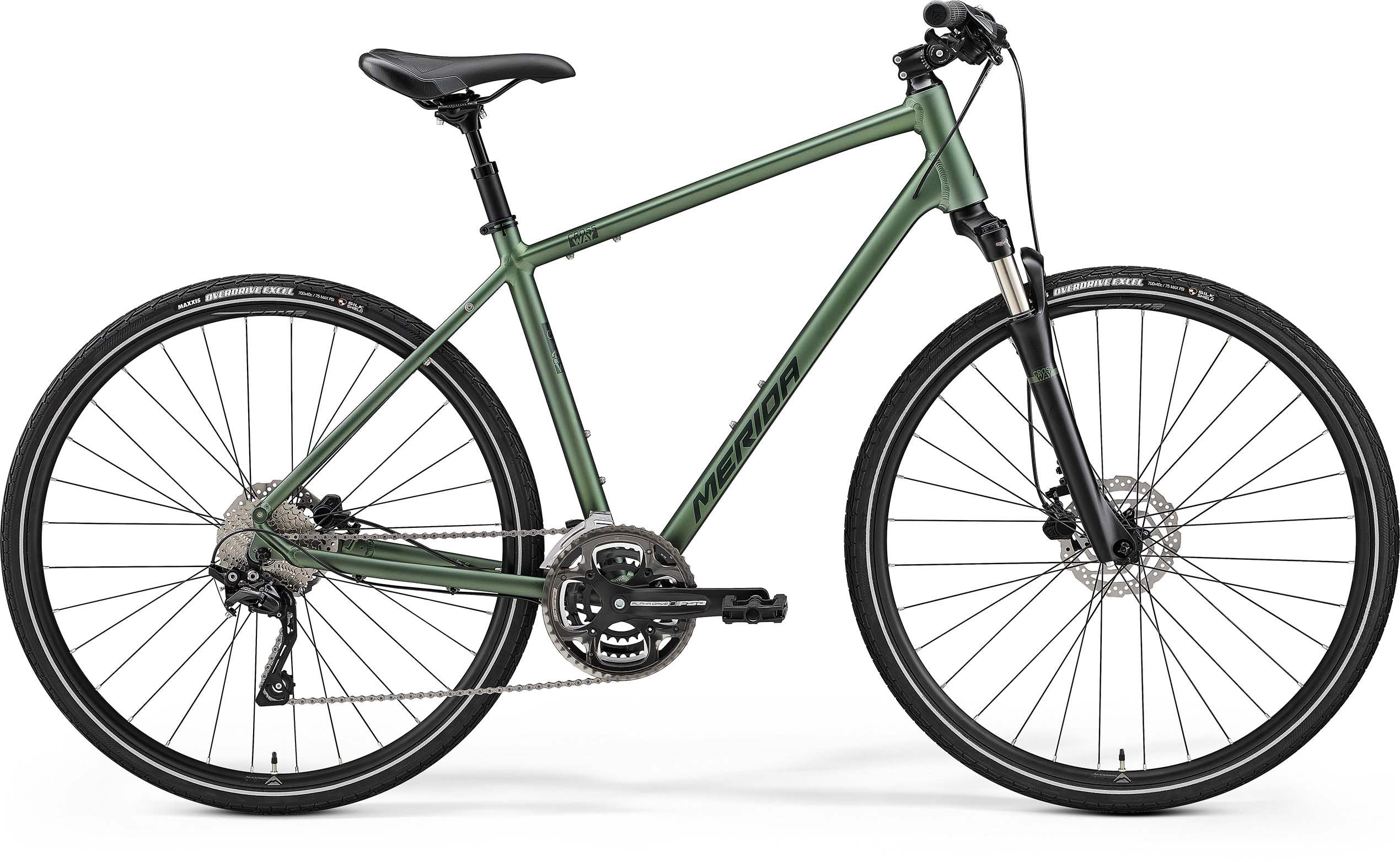

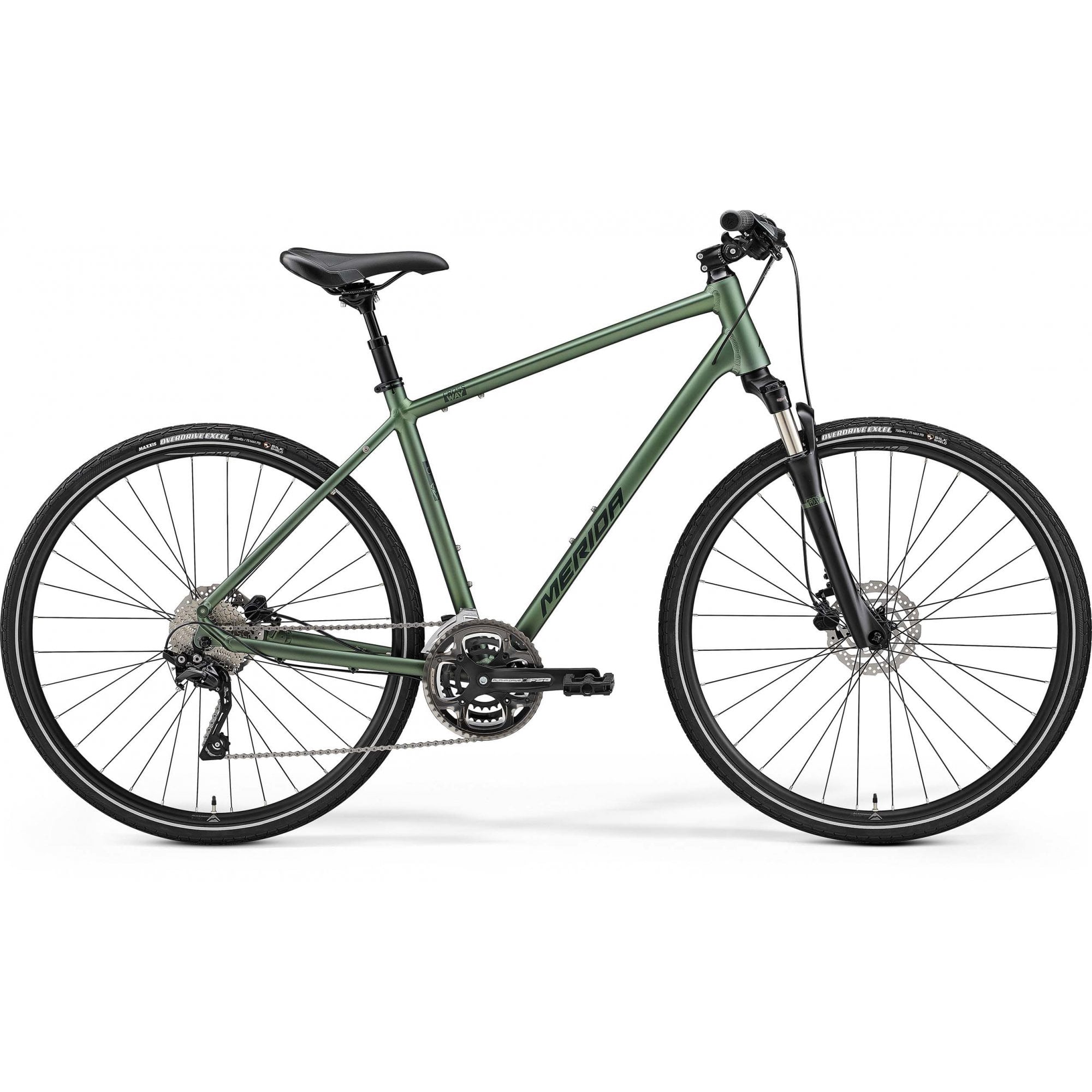

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
| Frameset | TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max. tyre size 700 x 50c |
|---|---|
| Fork | Suntour NX1-DS-LO; Coil; 63mm travel, Lockout. Max. tyre size: 700 x 50c |
| Brakes | Hydraulic disc |
| Tyres | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield - Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
| Rear mech | Shimano Deore |
| Wheelset | Merida Comp TK; 20mm inner rim width; 17mm depth; Aluminium |
| Headset | Merida M2346 Neck |
| Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Stem length: 80mm (XXS/XS/S), 90mm (M/L), 100mm (XL) |
| Handlebar | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Shifters | Shimano Deore |
| Cassette | KMC X10 |
| Chain | KMC X10 |
| Chainset | FSA Alfa Drive; 48-36-26 tooth chainset. Crank length: 170mm (S), 175mm (M,L) |
| Bottom bracket | FSA TH-7420ST Cartridge Bearing |
| Saddle | Merida Cross Sport |
| Seat post | Merida TK; 30.9mm diameter; 10mm lay back; 40mm suspension travel |
| Tape grips | Merida Expert EC |
| Front mech | Shimano Deore |
