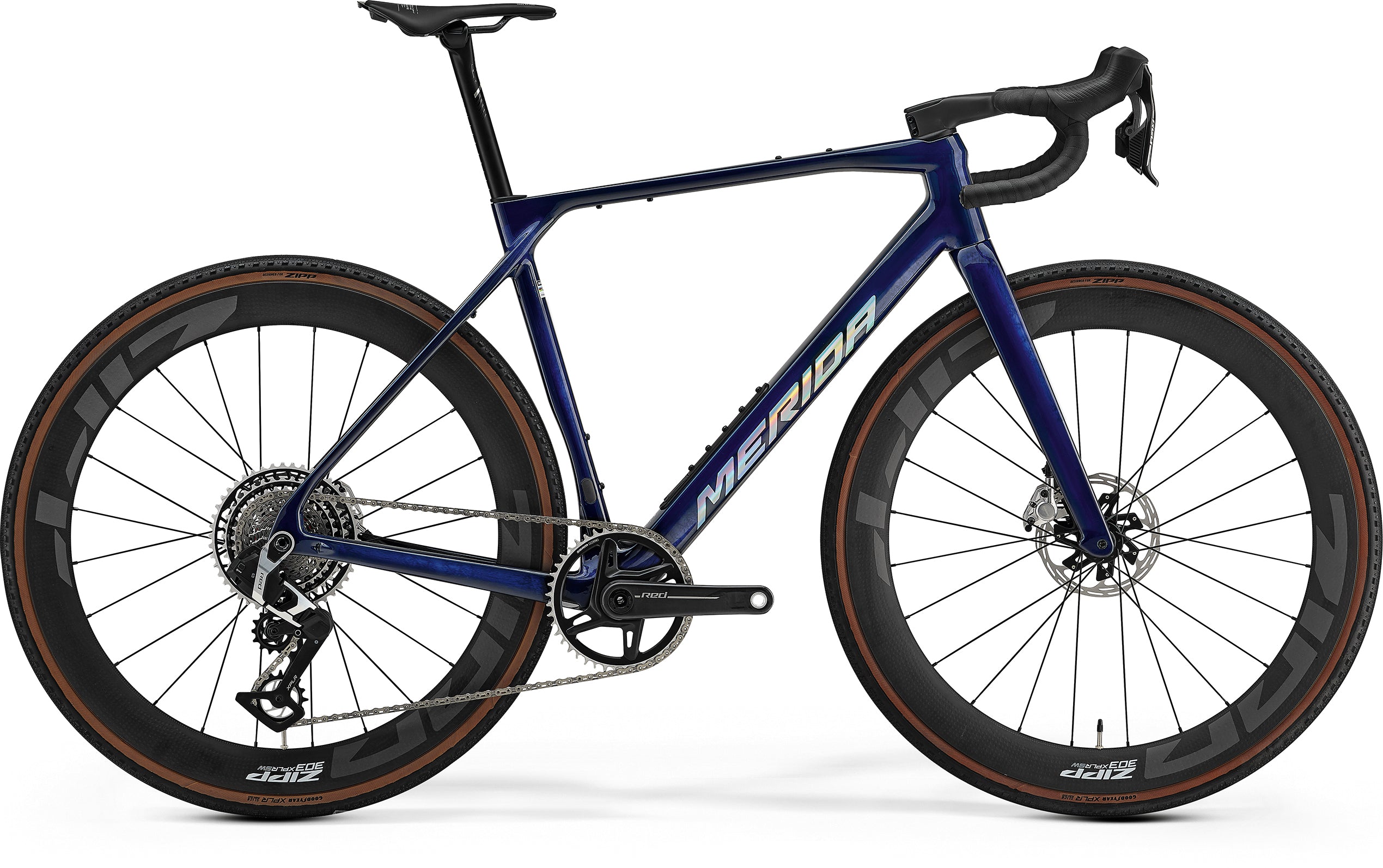

Gravel racing is your game! Look no further - a new sheriff is in town. Welcome to the top-of-the-range Mission 10K. Our new carbon race frame is loaded with the latest gravel racing gear, including a 13-speed SRAM Red XPLR groupset, a one-piece Merida carbon bar and stem and new extra-wide Zipp 303 XPLR SW carbon wheels. All of this is designed to help you and your Mission reach the podium at your next gravel race or gain the edge on your next multi-surface outing.
| Frameset | CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C |
|---|---|
| Fork | Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size |
| Brakes | SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm |
| Tyres | Goodyear XPLR Slick designed for Zipp; 40-622; TLR; Goodyear XPLR Slick designed for Zipp; 40-622; TLR; |
| Rear mech | SRAM Red XPLR; AXS wireless; 1x13; T-Type |
| Wheelset | Zipp 303 XPLR SW; 100x12mm; 142x12mm; 32mm inner rim width; 54mm rim depth; Centerlock; material: carbon; (tubeless tape and valves included) |
| Headset | Merida Team SL (SE-301 neck) |
| Stem | Merida Team One-Piece GR Integrated; material: carbon; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Handlebar | Merida Team SL 1P GR 1 Integrated; material: carbon; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Shifters | Front: SRAM Red AXS; Hydraulic disc, Rear: SRAM Red AXS; Hydraulic disc |
| Cassette | SRAM Red XPLR; XG-1391; 10-46 teeth; 13speed |
| Chain | SRAM Red; Flattop |
| Chainset | SRAM Red XPLR; 44 tooth chainset; material:Carbon; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom bracket | SRAM DUB BSA Road Wide; 68mm |
| Saddle | Prologo Nago R4 PAS; Nack |
| Seat post | Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon |
| Tape grips | Merida Road Expert |
