Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.
The UK version of the Big Nine and Big Seven 15 have been upgraded to use a sophisticated TFS frame featuring the latest technology:
full internal cable routing for a clean, neat set up,
tapered headtube offering the potential for future upgrades
inboard disc brake mounts protect the brake and maximise stopping power
As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.

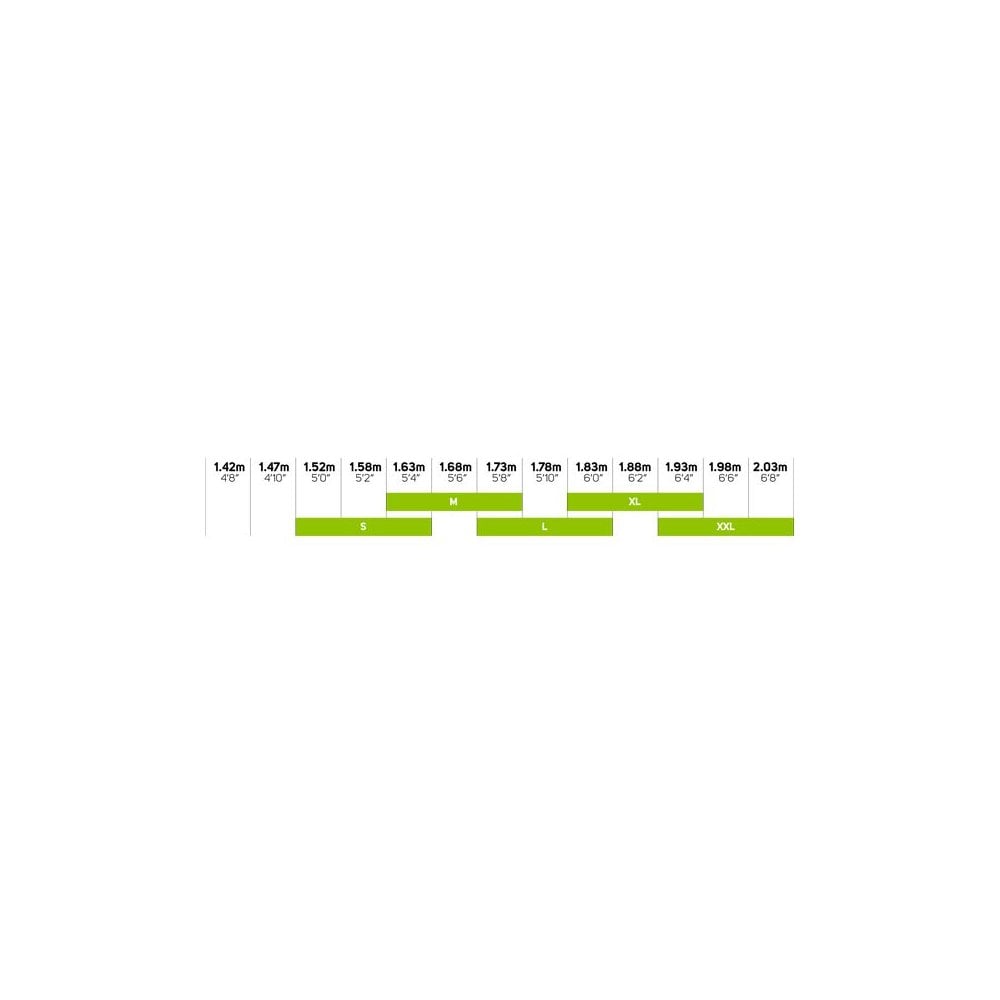

There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two.
For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility chose a Big Seven.
Frameset | TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25" |
---|---|
Fork | Suntour XCT30; Coil; 100mm travel. Max. tyre size: 29" x 2.25" |
Brakes | Hydraulic disc |
Tyres | Merida K1080; 29" x 2.2"; wire bead - Merida K1080; 29" x 2.2"; wire bead |
Rear mech | Shimano RD-M310 |
Wheelset | Merida CC; 17mm inner rim width; Aluminium |
Headset | Merida M2345 |
Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL) |
Handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
Shifters | Shimano ST-EF505 |
Cassette | Sunrace M84 |
Chain | Sunrace M84 |
Chainset | Shimano TY301; 42-34-24 tooth chainset. Crank length: 175mm (M,L,XL) |
Bottom bracket | FSA TH-7420ST-W, Cartridge Bearing |
Saddle | Merida Sport comfort |
Seat post | Merida CC; aluminium; 30.9mm diameter; 15mm lay back |
Tape grips | Merida EC |
Front mech | Shimano FD-TY700 |
