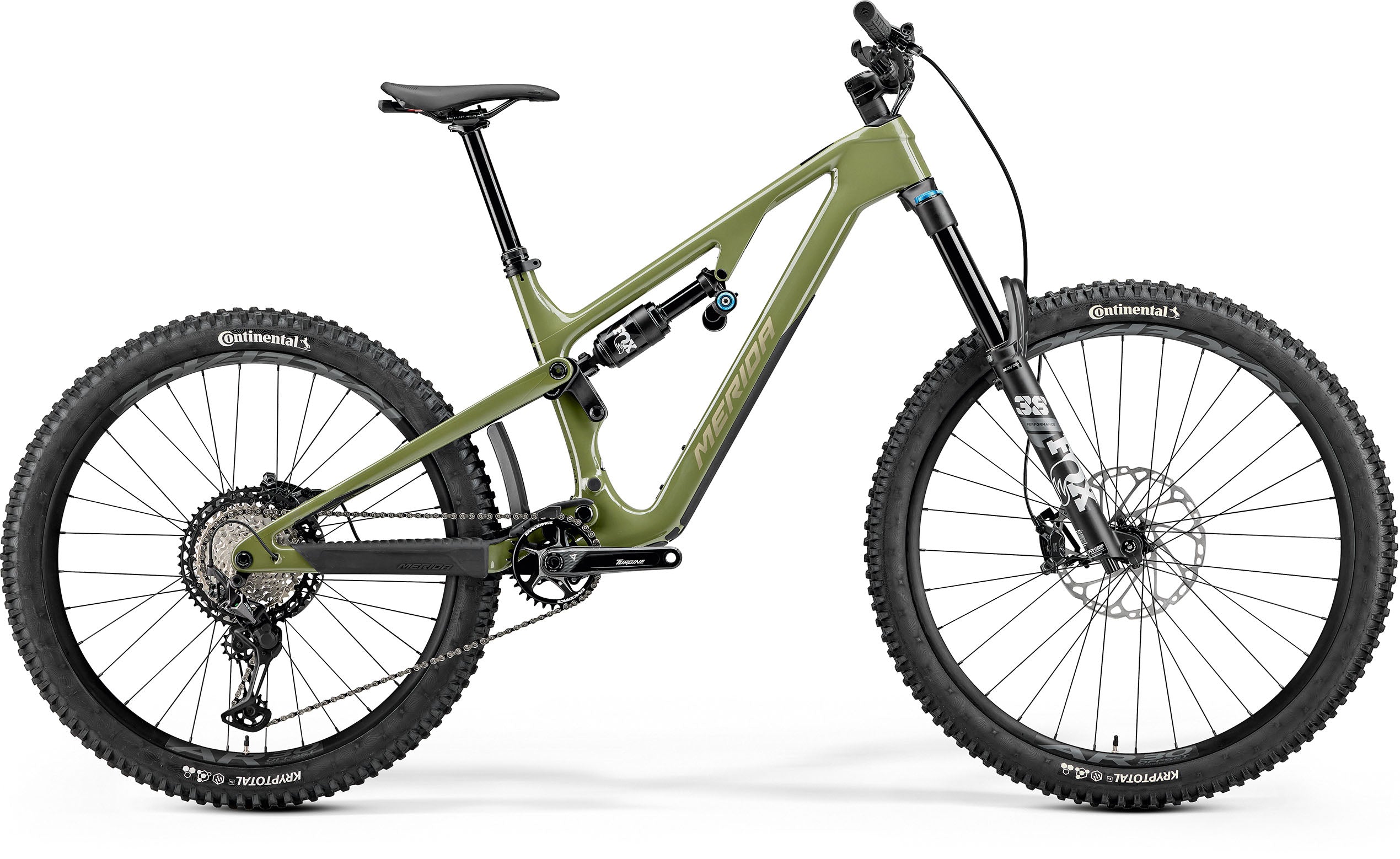

Taking the tested and award-winning full carbon frame that won Bikeradar's Enduro Bike of the Year 2023 and pairing it with Fox's benchmark 38 fork and X2 shock brings top level performance to any enduro track. Add to this the ability to run 29" or mixed 29"/27.5" wheels, our proven FAST kinematics plus the perfect mix of Components from Shimano and Race Face and you have a race winning combination.
Frameset | CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5" |
---|---|
Fork | Fox 38 Performance; Air; 170 mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size |
Brakes | Hydraulic Disc Shimano XT M8220; 4 piston with Shimano RT64; 220mm & Shimano XT M8220; 4 piston with Shimano RT64; 203mm |
Tyres | Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Super soft compund & Continental Kryptotal-R; (XShort-Mid) - 27.5x2.4", (Long-XLong) - 29x2.4"; kevlar bead; Enduro casing, soft compound |
Rear mech | Shimano XT M8100; SGS |
Wheelset | 29" / 27.5" - Race Face AR30; 30mm inner rim width; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); rear 27.5" up to Size M / L & XL rear 29" Double Butted Black stainless w/black nipples Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Shimano TC600-MS-B; 148x12mm; 32 Spoke; Centerlock |
Headset | Acros ICR Merida Integrated neck; Upper and lower IPS sealing |
Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
Handlebar | Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise |
Shifters | Front: Shimano SL-MT500-IL, Rear: Shimano XT M8100; Multi Release |
Cassette | Shimano XT M8100; 10-51 teeth; 12 speed |
Chain | KMC X12 |
Chainset | Race Face Turbine; 32 tooth chainset; Crank length: 165mm |
Bottom bracket | Race Face BB BSA; 30mm |
Saddle | Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool |
Seat post | Merida Expert TR III; 34.9mm diameter; in-line; 25mm travel adjustability; Xshort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm seat post travel |
Rear shock | Fox Float X2 Performance; platform |
Tape grips | Merida Expert TR; recycled material |
