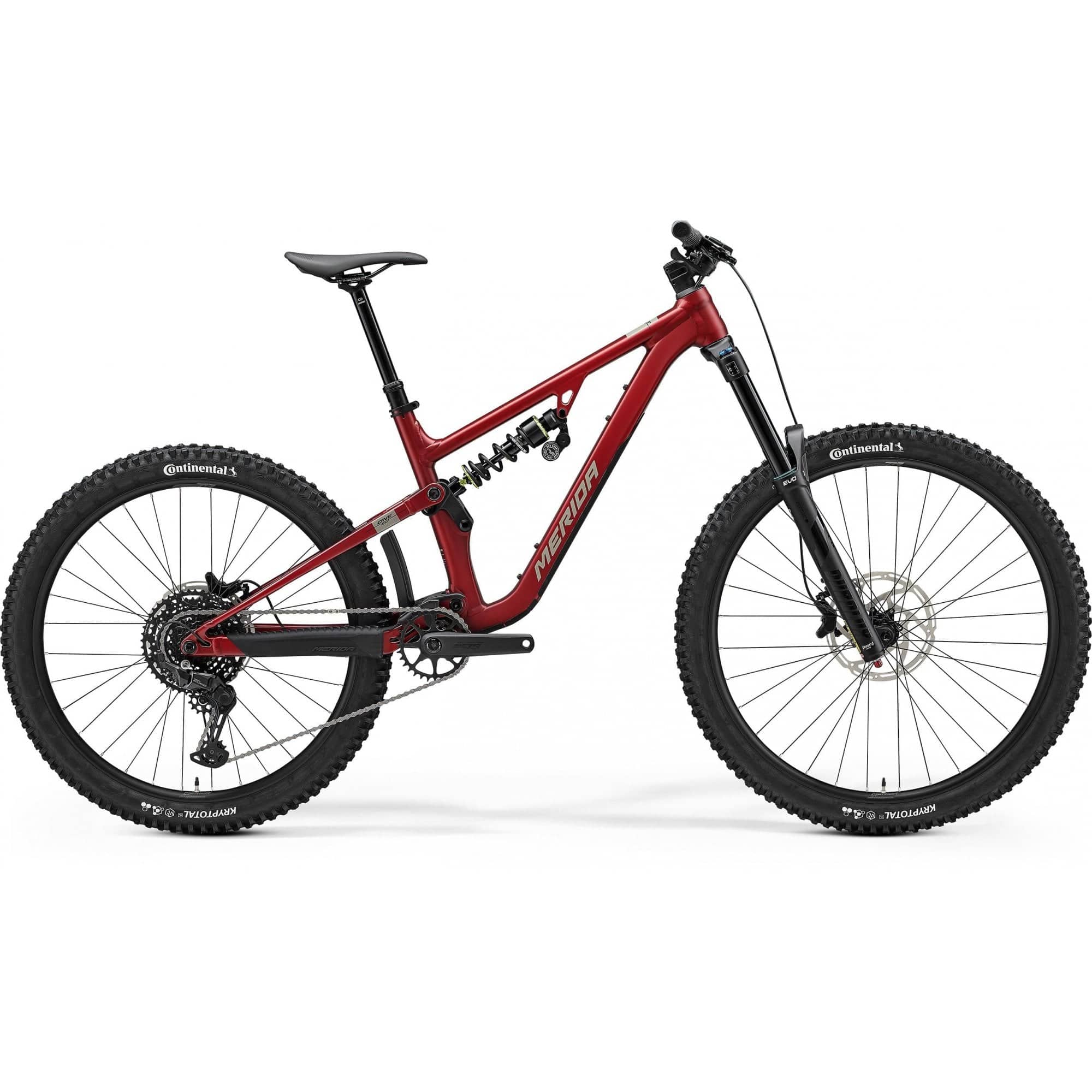

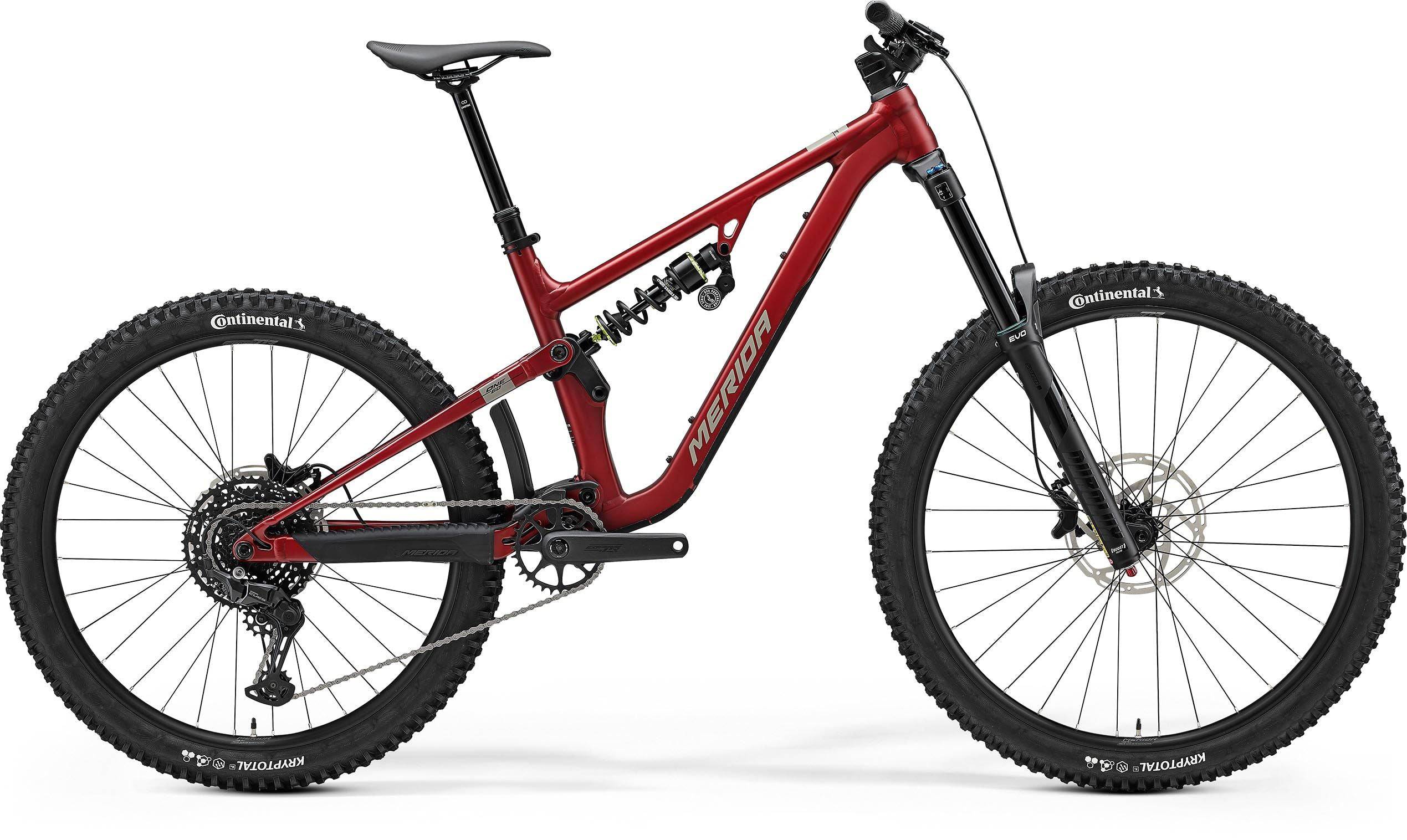

The Merida One-Sixty FR 400 mountain bike represents a significant advancement in trail performance and rider adaptability. Engineered with a robust aluminum frame, this model is designed to endure the rigors of aggressive mountain biking while maintaining a balance between strength and agility. Its innovative mullet wheel configuration—combining a 29-inch front wheel with a smaller rear—enhances maneuverability and stability across varied terrain, making it a versatile choice for riders seeking both control and speed.
Equipped with the Shimano CUES U6000 drivetrain, the One-Sixty FR 400 delivers precise and reliable shifting, ensuring smooth transitions even under demanding conditions. The bike’s suspension system features 180mm travel at the front and 171mm coil-sprung travel at the rear, providing exceptional shock absorption and responsiveness. This setup, combined with the Agilometer sizing system, allows riders to customize reach and suspension progression to their riding style, resulting in a tailored and confident ride. Additional technical features such as wire port cable routing and a threaded bottom bracket reflect Merida’s dedication to thoughtful engineering and durability.
Built to meet Category 5 standards, the One-Sixty FR 400 is engineered for the most challenging mountain biking scenarios, from technical descents to rugged bike park sessions. Its powerful disc brakes offer dependable stopping power, enhancing rider safety and control. Backed by a comprehensive 5-year frame warranty, this bike assures long-term reliability and peace of mind for serious enthusiasts. The Merida One-Sixty FR 400 is an excellent investment for riders who demand performance, durability, and adaptability in a single package.
Is the Merida One-Sixty FR 400 suitable for beginners?
While designed for serious trail riders, its durable frame and adjustable sizing make it accessible for confident beginners looking to progress quickly.
Can I use this bike for long-distance rides?
Yes, but it’s primarily built for aggressive trail and park riding rather than endurance cycling, so comfort on very long rides may vary.
| Frameset | Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
|---|---|
| Fork | SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6" |
| Brakes | Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor |
| Tyres | Continental Kryptotal-F; 29" x 2.4"; Kevlar bead; TR; Enduro casing; Soft Compound - Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead; TR; Enduro Casing; Soft Compound |
| Rear mech | Shimano CUES U6000; GS |
| Wheelset | Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes) |
| Handlebar | Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Shifters | Shimano CUES U6000 |
| Cassette | KMC xGlide |
| Chain | Shimano LG300; 11-48 teeth; 10 speed |
| Chainset | Merida Expert TR II; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 165mm (all sizes) |
| Bottom bracket | Samox BSA 24mm EB2401 |
| Saddle | Merida Comp SL; V-mount - made with 25% recycled material |
| Seat post | Merida Expert TR II; 34.9mm diameter; 0mm layback; XShort/Short: 150 mm seat post travel - Mid: 170 mm seat post travel - Long: 200 mm seat post travel - XLong: 230 mm seat post travel |
| Rear shock | DVO Jade X D3; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450 |
| Tape grips | Merida Comp EC |
