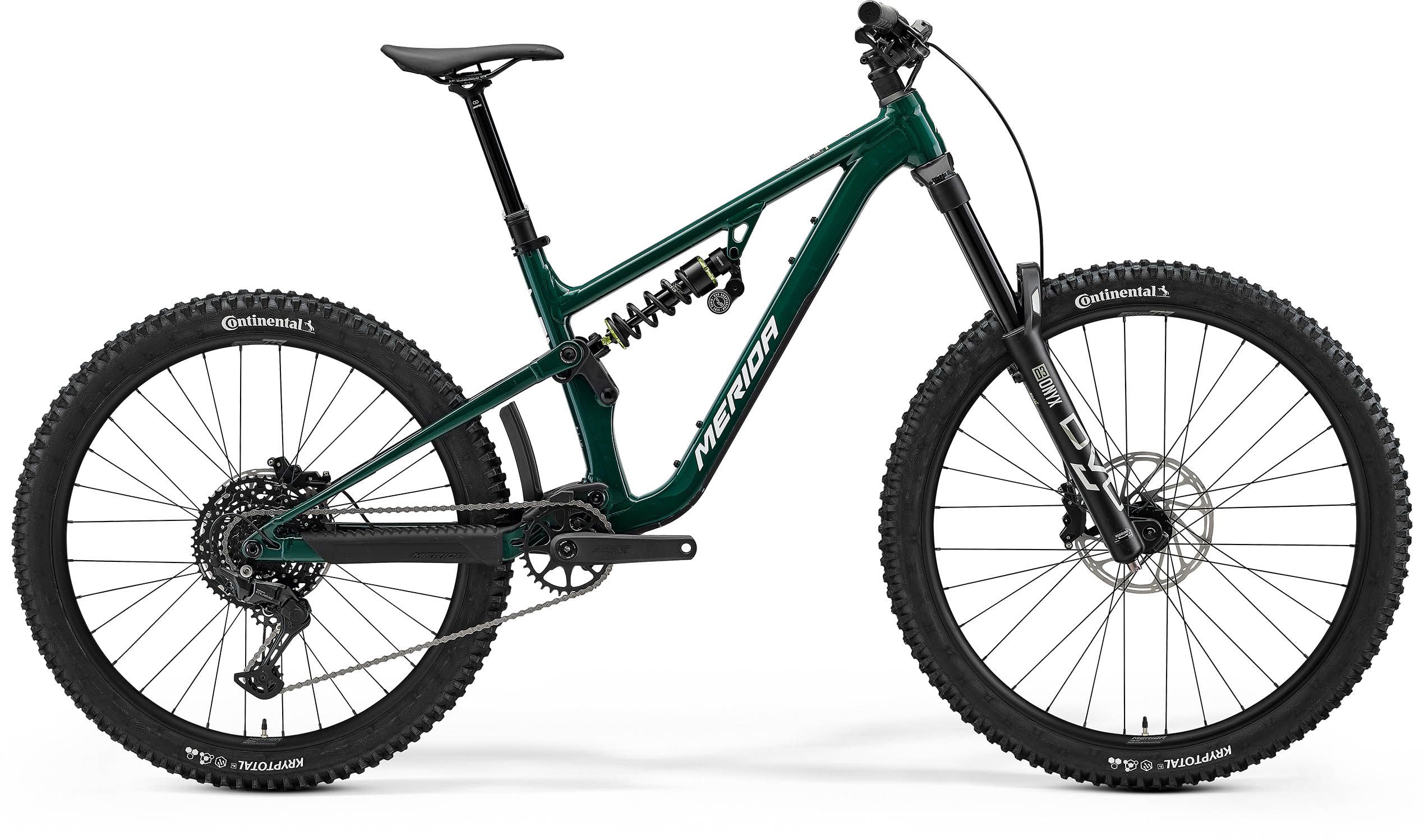

The Merida One-Sixty FR 400 MY26 is a full suspension mountain bike engineered to meet the demands of serious trail riders seeking durability and performance. Constructed with a robust aluminium frame, this model is designed to endure challenging terrains while providing a smooth and controlled ride. The integration of Shimano CUES U6000 GS components ensures precise gear shifting and responsive braking, enhancing rider confidence in diverse conditions.
Incorporating Merida’s innovative Agilometer sizing concept, the One-Sixty FR 400 allows riders to fine-tune the reach independently of height, enabling a personalized fit that optimizes comfort and handling. Its progressive suspension system adapts dynamically to rider input and trail conditions, supported by long-travel dropper posts and a reliable threaded bottom bracket. These features collectively contribute to a bike that balances modern technology with rugged dependability.
Certified to Category 5 standards and backed by a comprehensive 5-year frame warranty, the One-Sixty FR 400 is built for longevity and high performance. Whether navigating technical descents or enduring extended enduro rides, this mountain bike offers a reliable and engaging experience for riders committed to exploring demanding trails.
What does Category 5 rating mean?
The Category 5 rating indicates the bike is designed for the most extreme trail conditions, including steep descents and technical terrain.
Can I adjust the frame size to fit my riding style?
Yes, the Agilometer sizing concept allows independent adjustment of reach, so you can choose a longer or shorter frame based on your preference, not just height.
| Frameset | Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
|---|---|
| Fork | DVO Onyx 38 D3; Air; 180 mm travel; Tapered; 44 mm fork offset; 29x2.60" max. tyre size |
| Brakes | Hydraulic Disc SRAM DB4; 4 piston with SRAM CenterLine; 203mm & SRAM DB4; 4 piston with SRAM CenterLine; 200mm |
| Tyres | Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft Compund & Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Enduro Casing; Soft Compound |
| Rear mech | Shimano CUES U6000; GS |
| Wheelset | 29" / 27.5" - Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5" Double Butted Black stainless w/black nipples Novatec SL-TEAM D041SB-B15; 110x15mm; 32 Spoke; 6 bolt Novatec SL-TEAM D442SB-B12-A4A-HG; 148x12mm; 32 Spoke; 6 bolt |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Stem | Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebar | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
| Shifters | Rear: Shimano CUES U6000 |
| Cassette | Shimano LG300; 11-48 teeth; 10 speed |
| Chain | KMC xGlide |
| Chainset | Merida Expert TR II; 32 tooth chainset; Crank length: 165mm |
| Bottom bracket | Samox BSA 24mm EB2401 |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seat post | Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel |
| Rear shock | DVO Jade X core; coil; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs |
| Tape grips | Merida Comp TR |
