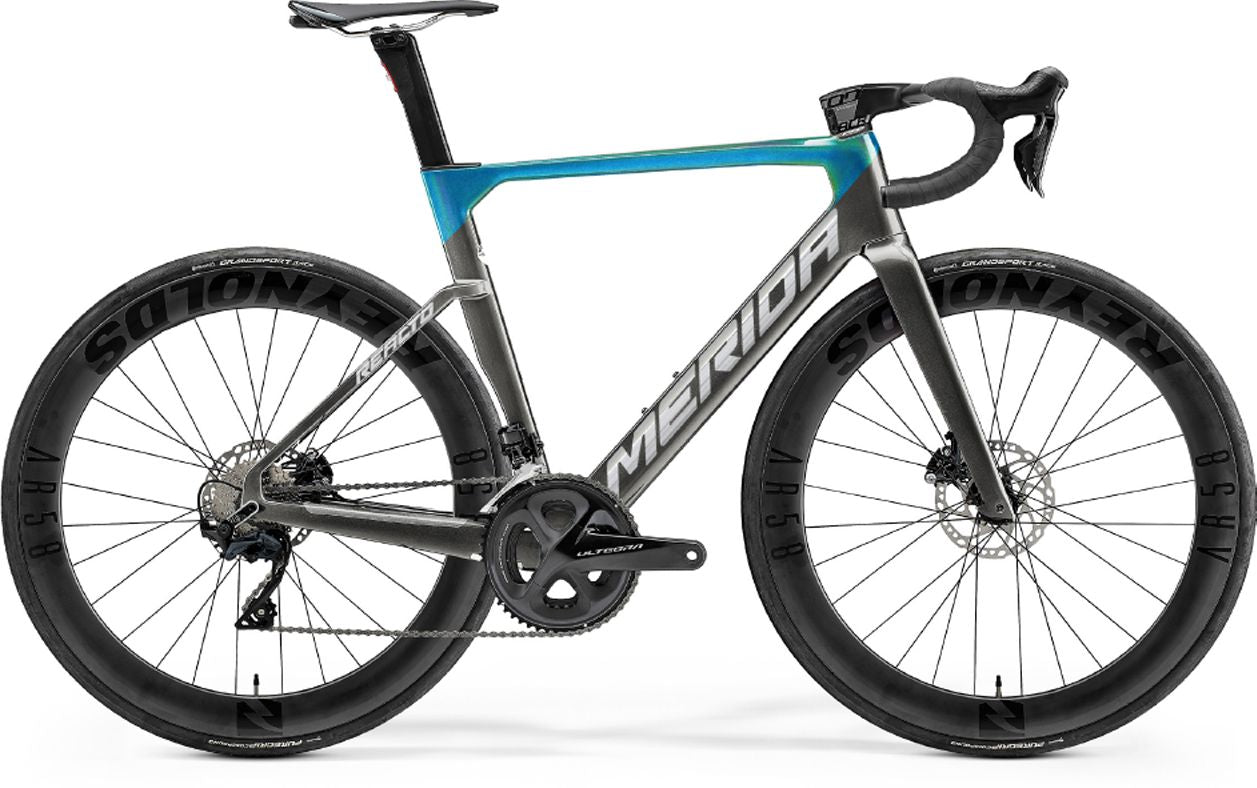

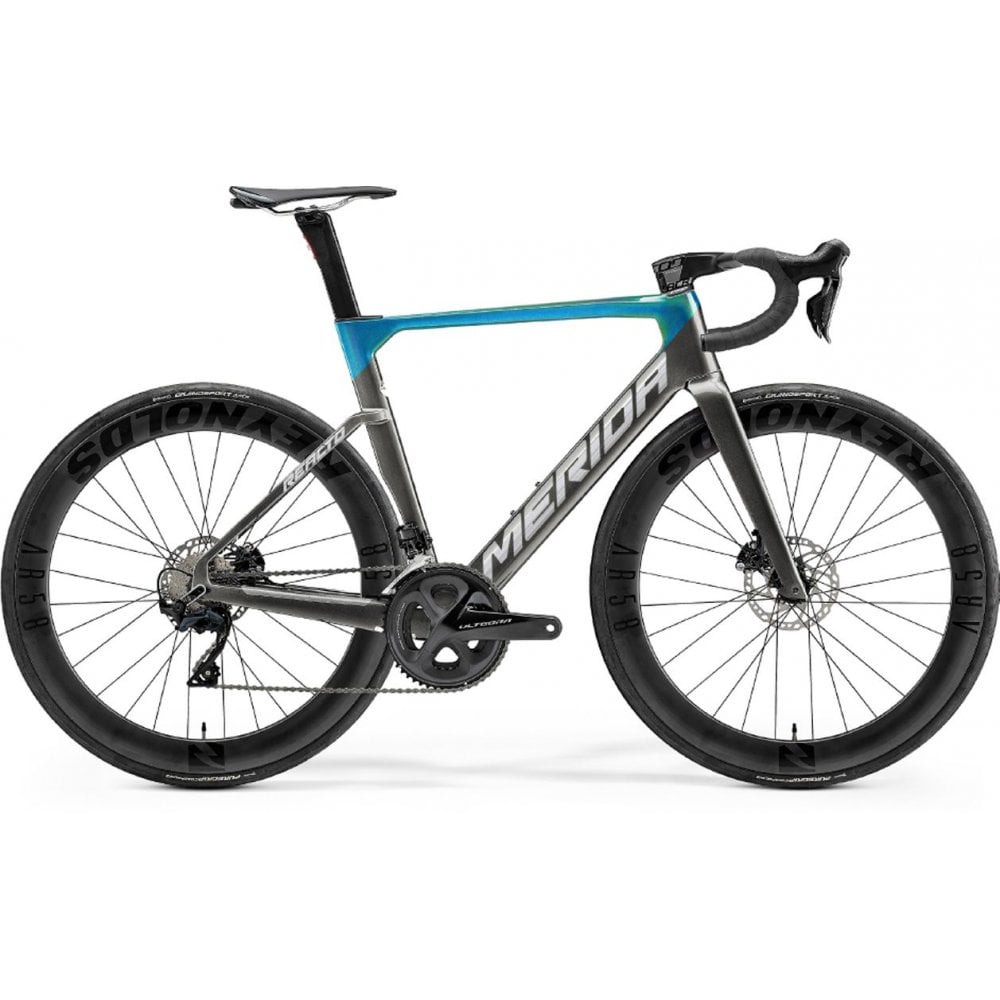

The Merida Reacto has always been a class leading aero bike, combining state of the art aerodynamics with rider comfort. The 4th generation model is more slippery and beautiful than ever, incorporating wider tyres, much neater cockpit cable integration and a series of incremental improvements to boost performance. In the world of Pro-Tour racing no area can be ignored. Computational Fluid Dynamics (CFD) calculations were used to model performance in a virtual wind tunnel, guiding the changes which offered the most aerodynamic benefit: Prototypes were wind tunnel tested following the German TOUR magazine standard, including the ‘moving leg dummy’ test. The Reacto CF5 needs just 209 watts effort for 45 km/h speed, 1 watt faster than its predecessor so it's in the leading group of aero road bikes ever tested by TOUR magazine. Small details such as integrating the front disc cooler behind the fork and the rear disc caliper in the rear triangle and creating new bolt through axles with the thread integrated into the fork dropout minimise drag and improve aerodynamic performance. A myriad of small improvements over-compensate for the aerodynamic compromises made to give the Reacto bigger tyres, resulting in the perfect package of comfort, aerodynamic, lightweight and style. A long string of test wins, perfect scores and awards confirm the successful evolution of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly described it as 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'. All Reacto come with powerful hydraulic disc brakes. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Frameset | CF5 IV - The highest quality fibres for minimum weight, aggressive Pro-Tour geometry and extensive aerodynamic profiling. BB86 BB standard, 142 x 12mm axle standard. Maximum tyre clearance 700 x 30c |
---|---|
Fork | Reacto CF5 IV Disc; full carbon, tapered steerer. Max. tyre size: 700 x 30c. Disc cooler technology |
Brakes | Hydraulic disc |
Tyres | Continental Grand Prix 5000S TR; 700 x 25c; Kevlar bead, folding; tubeless ready - Continental Grand Prix 5000S TR; 700 x 25c; Kevlar bead, folding; tubeless ready |
Rear mech | Shimano Ultegra Di2 |
Wheelset | Part of wheelset - Reynolds AERO 65 DB, 21mm inner rim width; 65mm depth; carbon; Tubeless ready (tubeless tape and valves included) |
Headset | FSA ACR |
Stem | Vision Metron 5D ACR integrated; carbon. Stem length: 100mm (XXS/XS/S), 110mm (M), 120mm (L/XL) |
Handlebar | Vision Metron 5D ACR integrated; carbon; Width: 400mm (XXS-XS-S), 420mm (M-L-XL), |
Shifters | Shimano Ultegra disc Di2 |
Cassette | Shimano CN-M8100-12 |
Chain | Shimano CN-M8100-12 |
Chainset | Shimano Ultegra; 52-36 tooth chainset. Crank length: 170mm (XXS,XS,S), 172.5mm (M), 175mm (L,XL) |
Bottom bracket | Shimano BB72-41B, Pressfit 86.5 |
Saddle | Prologo Scratch M5 |
Seat post | Merida Team CW; Aero shape; 15mm lay back; Carbon with intergrated rear light and battery |
Tape grips | Merida Road Expert |
Front mech | Shimano Ultegra Di2 |
