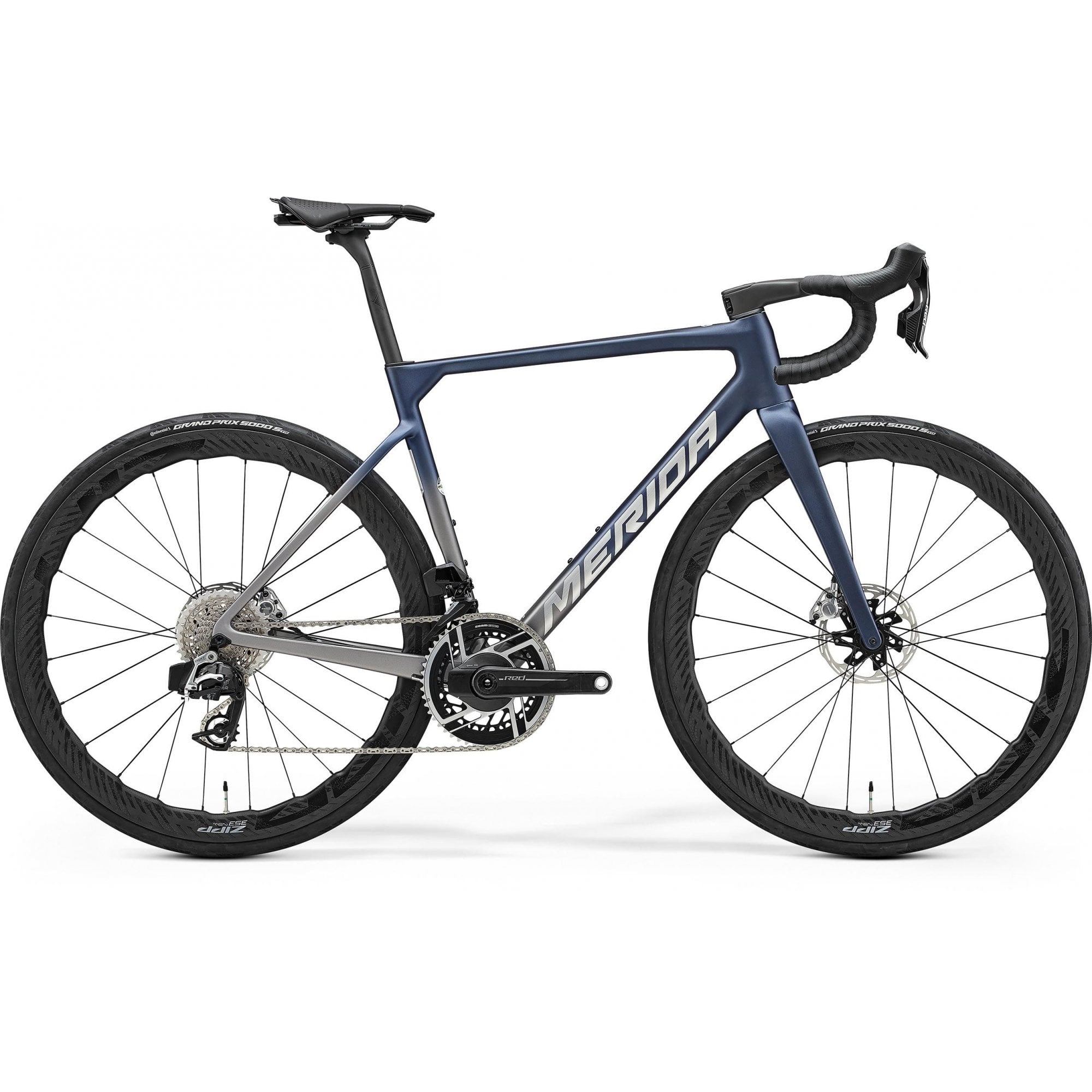

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched.
Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.
The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry.
Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made.
The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!
Frameset | CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c |
---|---|
Fork | Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology |
Brakes | SRAM RED AXS; Hydraulic disc brake caliper with SRAM DB Paceline X Centrelock; 160mm rotor |
Tyres | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead; tubeless ready - Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready |
Rear mech | SRAM RED AXS |
Wheelset | Part of wheelset -Zipp WH-353-NSW Tubeless; 25mm inner rim width; Carbon |
Headset | Merida Team SL (OP-203 neck) |
Stem | Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL) |
Handlebar | Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL) |
Shifters | SRAM RED AXS |
Cassette | Sram Red E1 |
Chain | SRAM CS XG 1290 E1; 10-36 teeth; 12 speed |
Chainset | SRAM RED AXS; 50-37 tooth chainset; Power Meter; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL) |
Bottom bracket | BB DUB PF ROAD; 86.5 |
Saddle | Scratch M5 with V-mount adapter; includes Merida minitool |
Seat post | Merida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex |
Tape grips | Merida Expert |
Front mech | SRAM RED AXS |
