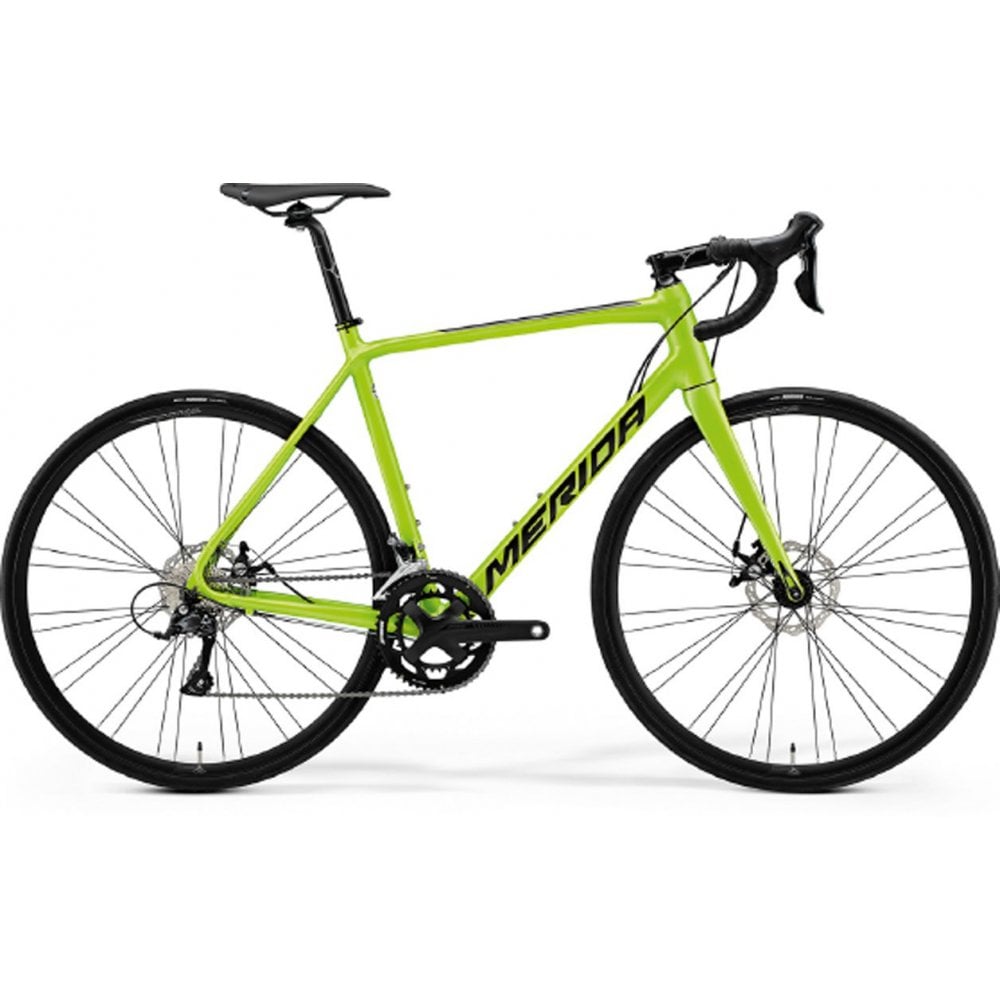

The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories.
The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.

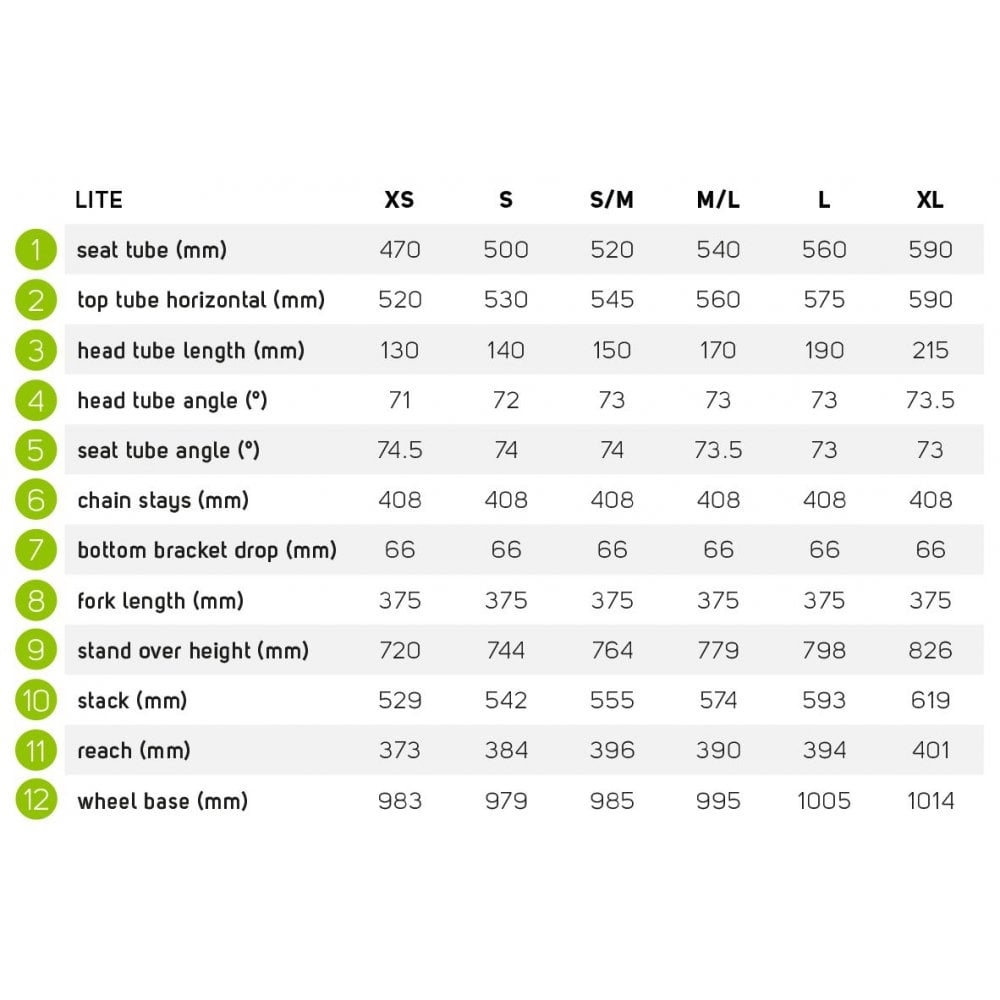

Frameset | Lite - Hydroformed triple butted 6066 aluminium with smooth welding. Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max. tyre size 700 x 28c |
---|---|
Fork | Scultura CF2 Disc; Full carbon; tapered steerer. Max. tyre size: 700 x 28c |
Brakes | Mechanical disc |
Tyres | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding - Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
Rear mech | Shimano Sora; GS |
Wheelset | Merida Comp SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
Headset | Merida M2339 Neck |
Stem | Merida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
Handlebar | Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL) |
Shifters | Shimano Sora |
Cassette | KMC M99 |
Chain | KMC M99 |
Chainset | FSA Omega; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL) |
Bottom bracket | FSA BB-AL86/ ˜19 |
Saddle | Merida Comp SL; V-mount |
Seat post | Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back |
Tape grips | Merida Road Comp |
Front mech | Shimano Sora |
