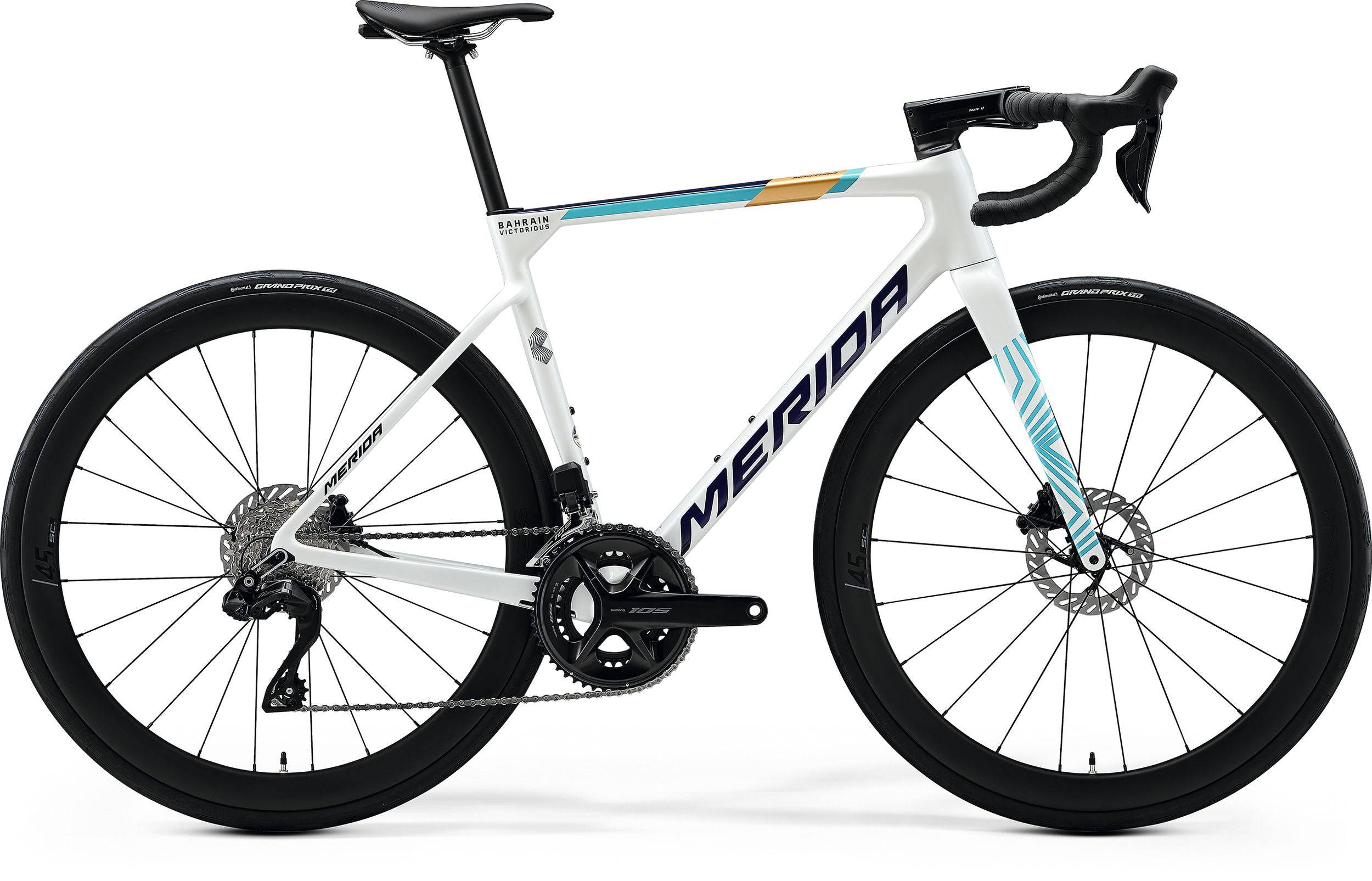

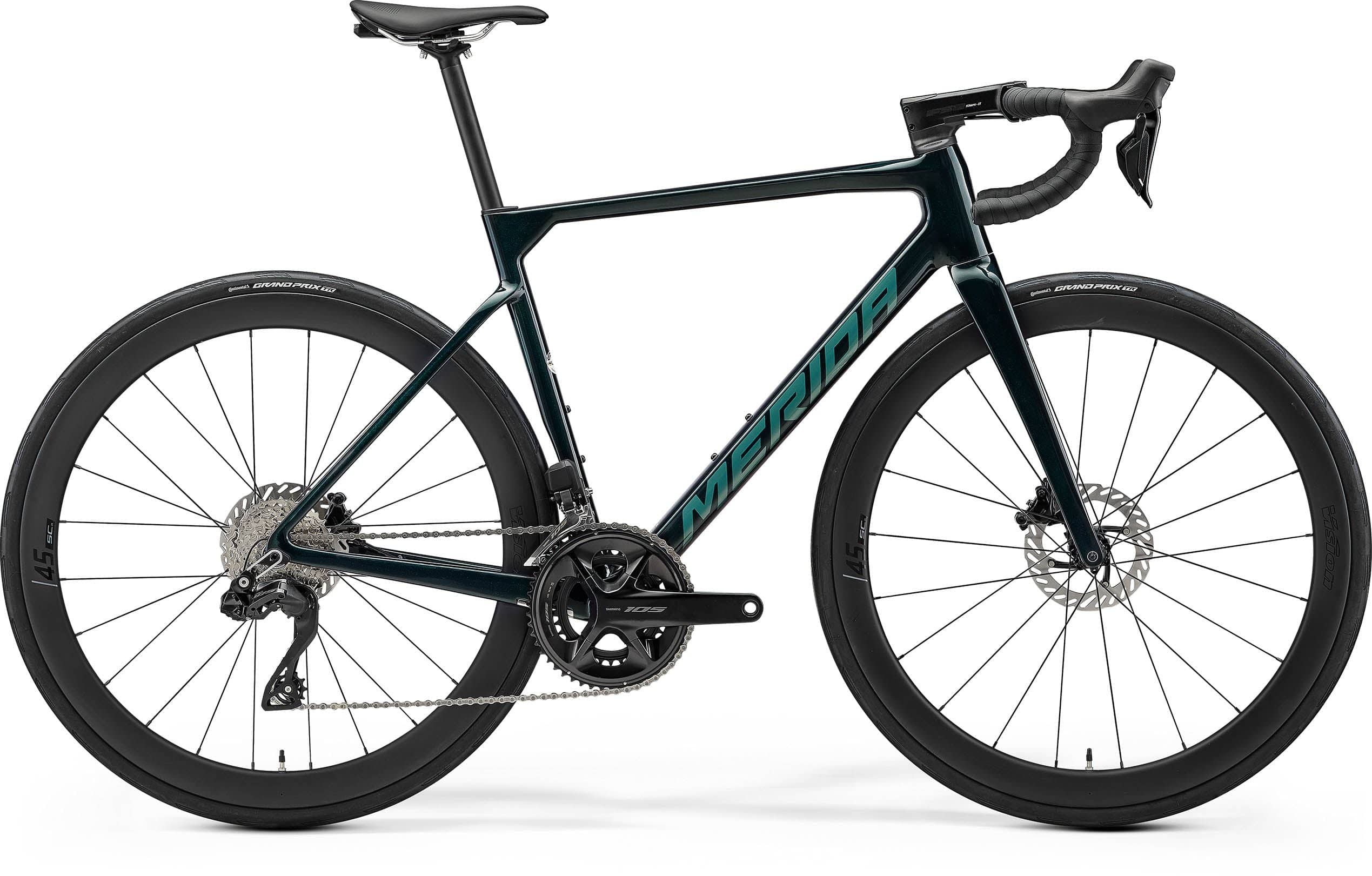

The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike. Yet, it remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree.
Frameset | CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
---|---|
Fork | Scultura CF3 Disc; material: carbon; 700x30C max. tyre size |
Brakes | Hydraulic Disc Shimano 105; Hydraulic disc with Shimano CL700; 160mm & Shimano 105; Hydraulic disc with Shimano CL700; 160mm |
Tyres | Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready & Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready |
Rear mech | Shimano 105 Di2 |
Wheelset | 700c - Vision SC 45 Disc; 100x12mm; 142x12mm; 23mm inner rim width; 45mm rim depth; Centerlock; material: carbon; Tubeless tape ready Part of wheelset - Vision SC 45 Disc Part of wheelset - Vision SC 45 Disc Part of wheelest - Vision SC 45 Disc |
Headset | FSA ACR |
Stem | FSA SMR-II; material: aluminium; -10 ; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm |
Handlebar | Merida Expert SLII; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
Shifters | Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2 |
Cassette | Shimano 105 R7101; 11-34 teeth; 12 speed |
Chain | Shimano M6100-12 |
Chainset | Shimano 105 R7100; 50-34 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
Bottom bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
Saddle | Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool |
Seat post | Merida Expert SL; 27.2mm diameter; in-line; material: carbon |
Tape grips | Merida Road Expert |
Front mech | Shimano 105 Di2 |
