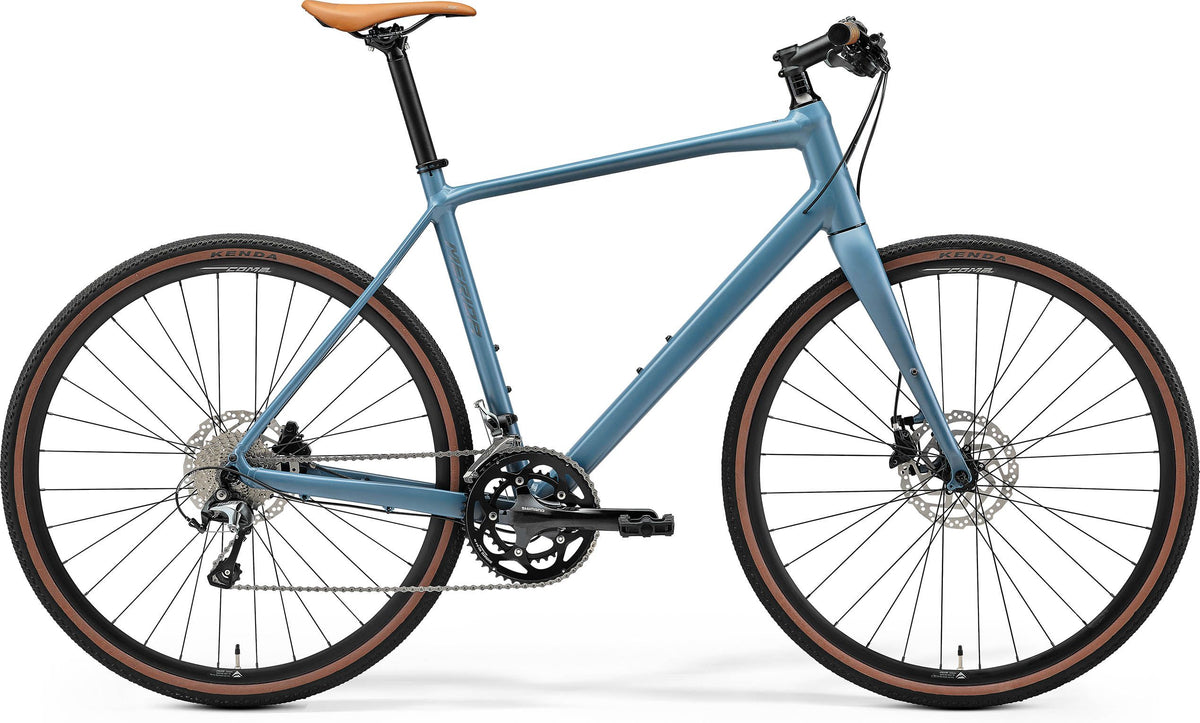

Merida use triple butted 6066 series aluminium which is hydroformed to tune the frame for a comfortable, responsive ride. The addition of a full carbon fork with a tapered steerer delivers precise steering and a smooth ride.
The upright position, flat bars and powerful hydraulic disc brakes are ideal for commuting, providing greater control and an enhanced field of vision when riding through traffic.
For versatility, the frame can accommodate wider tyres up to 35mm, or 32mm with mudguards.
Road.cc called it an 'excellent fast flat-bar road bike with awesome performance' and certified it to be a 'lovely bike – great fun, versatile, practical'.
Frameset | Lite III - 6066 triple butted hydroformed aluminium. Internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 135 x 9mm QR axle. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 35c (700 x 32c with mudguard) |
---|---|
Fork | Merida Speeder CF2; Tapered; material: carbon ; 700x35C max. tyre size |
Brakes | Hydraulic Disc Shimano MT200; 2 piston; hydraulic brake with Shimano RT10; 180mm & Shimano MT200 / UR300 ; 2 piston with Shimano RT10; 180mm |
Tyres | Kenda Piedmond Tanwall, 700x35C & Kenda Piedmond Tanwall, 700x35C |
Rear mech | Shimano Tiagra; GS |
Wheelset | 700c - Merida Comp SL; 17mm inner rim width; 22mm rim depth; material: aluminium; Tubeless ready (tubeless tape and valves not included) Black stainless Shimano HB-QC300; 100x9mm; 32 Spoke; centerlock Shimano FH-QC300-HM; 135x9mm; 32 Spoke; centerlock |
Headset | Merida M2331 Neck |
Stem | Merida Expert CC; material: aluminium; 31.8 mm diameter; 7 degree rise; Length: (XXS-XS) - 80mm, S - 90mm, M - 100mm, (L-XL) - 110mm |
Handlebar | Merida Expert CC; material: aluminium; 600mm wide; Flat |
Shifters | Front: Shimano Tiagra , Rear: Shimano Tiagra |
Cassette | Shimano HG500; 11-32 teeth; 10 speed |
Chain | KMC X10 |
Chainset | Shimano RS400; 50-34 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 175mm |
Bottom bracket | Shimano BB-RS501 BSA |
Saddle | Merida Comp SL; 22% recycled material; V-mount |
Seat post | Merida Comp CC; 30.9mm diameter; 5mm layback; material: aluminium |
Tape grips | Merida Comp CT |
Front mech | Shimano Tiagra |
