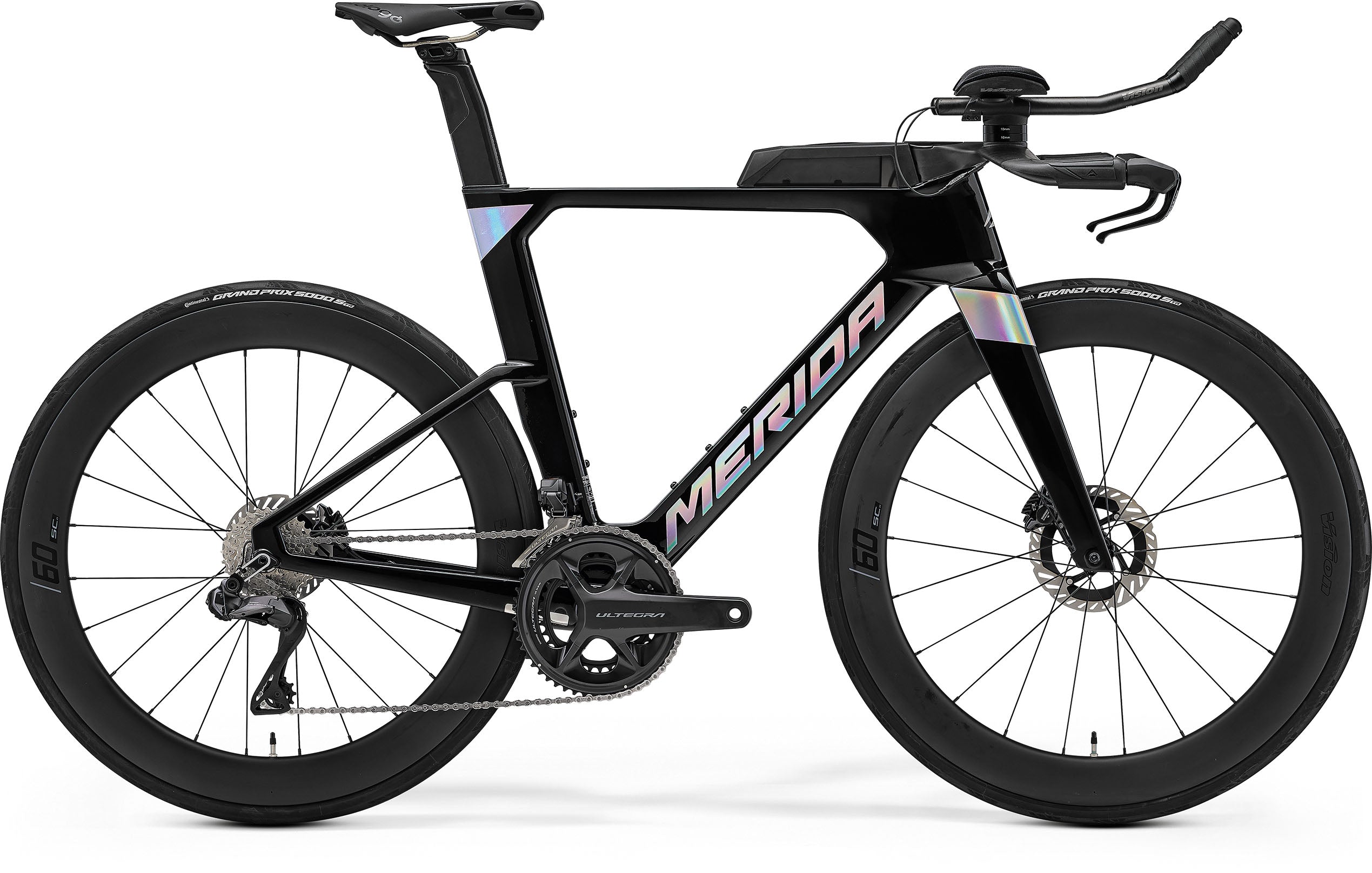

Developed as a dedicated project by our renowned R&D Chief Juergen Falke, the Time Warp Tri integrates advanced aero insights from the Pro Tour TT bike into a superlight CF5 frame designed for peak performance. Drawing from Juergen’s extensive Ironman experience, it balances comfort and efficiency to meet the varied challenges of different courses and distances. Equipped with the Vision Metron S-Bend cockpit, it offers multiple position adjustments, ensuring an optimal fit and precise handling even on the most technically demanding stretches.
| Frameset | CF5 IV carbon - Premium fibres for lightweight and performance, Internal cable routing, 142 x12mm axle standard, flat mount rear brakes, Pressfit 86.5 BB Standard, Max tyre size - 30c |
|---|---|
| Fork | Time-Warp Tri CF5 IV Disc; material: carbon; 700x30C max. tyre size |
| Brakes | Hydraulic Disc Shimano Dura Ace; Hydraulic disc with Shimano CL900; 160mm & Shimano Dura Ace; Hydraulic disc with Shimano CL900; 140mm |
| Tyres | Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready & Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready |
| Rear mech | Shimano Ultegra Di2 |
| Wheelset | 700c - Vision SC 60 Disc brake; 100x12mm; 142x12mm; 23mm inner rim width; 60mm rim depth; Centerlock; material: carbon; Tubeless tape ready Part of wheelset - Vision SC 60 Disc brake Part of wheelset - Vision SC 60 Disc brake Part of wheelest - Vision SC 60 Disc brake |
| Headset | Meida Time Warp TT |
| Stem | Merida Metron TT; material: carbon; -17 degree rise |
| Handlebar | Merida Metron TT; material: carbon |
| Shifters | Front: Shimano ST-R9180, Rear: Shimano ST-R9180 |
| Cassette | Shimano Ultegra R8101; 11-30 teeth; 12 speed |
| Chain | Shimano M6100-12 |
| Chainset | Shimano Ultegra; 52-36 tooth chainset; Crank length: XS - 165mm, (S-M) - 170mm, L - 172.5mm |
| Bottom bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
| Saddle | Prologo Zero TRI PAS Tirox |
| Seat post | Merida Team TT II; Aero shape; material: carbon |
| Tape grips | Merida Road Expert |
| Front mech | Shimano Ultegra Di2 |
