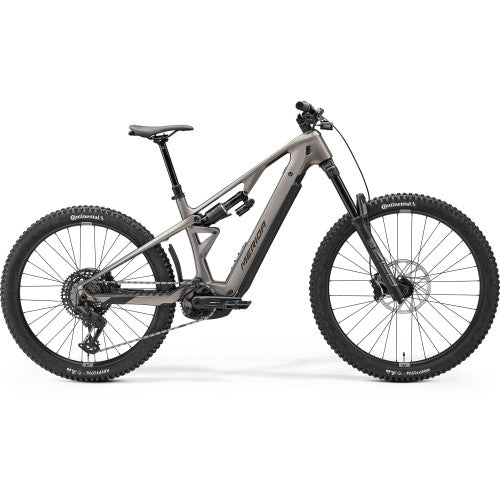

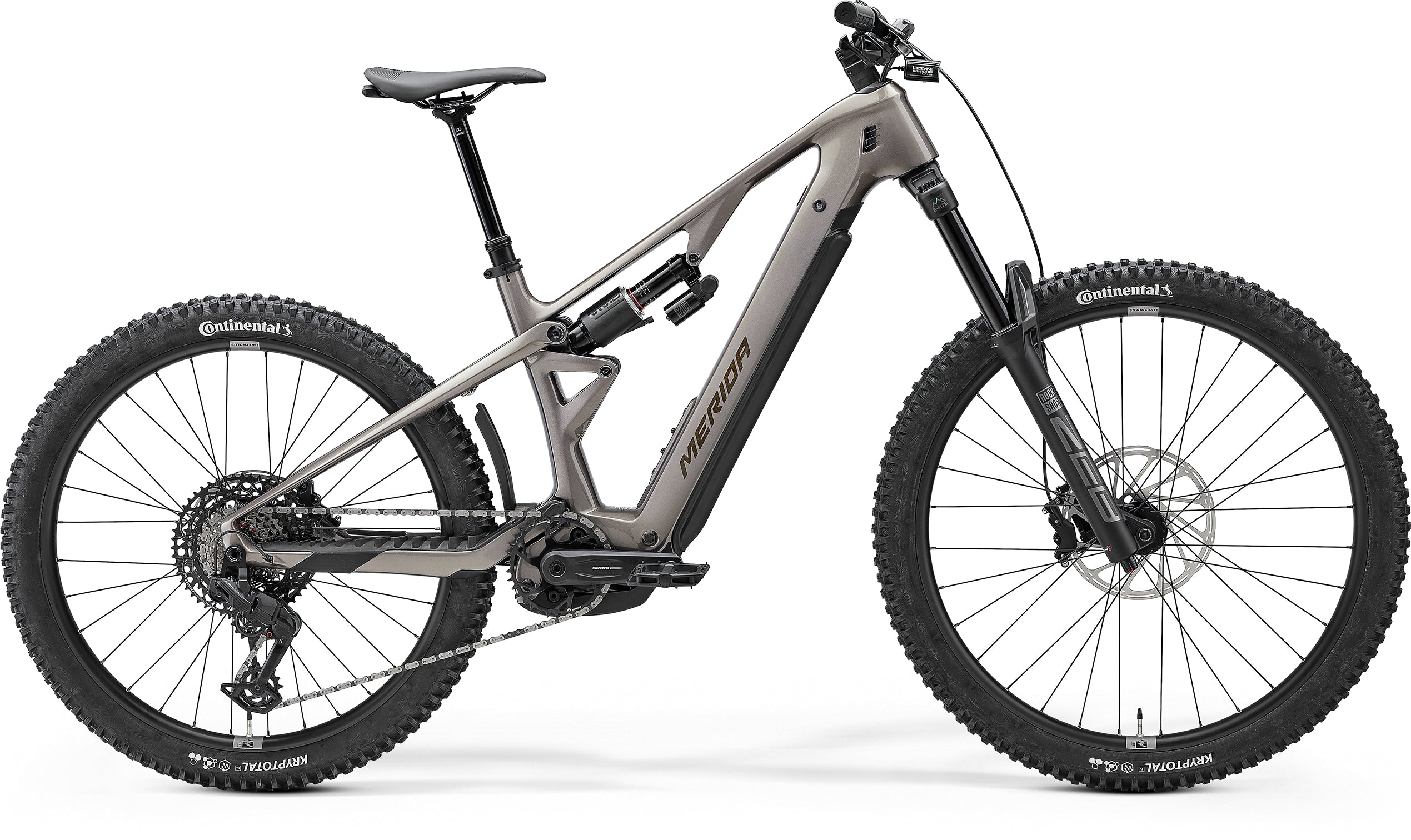

The Lithos 6000 delivers a huge dose of e-enduro performance and value for any rider or racer. The carbon fibre 170 mm travel frame is paired with the hugely strong Bosch CX drive unit and a removable 800 Wh battery, so it's ready to ride and rip, whatever turn the trail takes. Planted handling and sublime traction from the race-derived geometry and kinematics are paired with high-value, high-performance components.
With a full carbon frame and 170?mm of travel at either end, it’s built for the toughest tracks, pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed, no matter what the gradient or ground. The geometry is made to maximise traction on flat turns and confidence on steep sections with a longer chainstay and higher stack, while travel-adjustable dropper posts and our AGILOMETER sizing mean you can fine-tune fit and handling.
For versatility you can run a lightweight 600 Wh battery (available separetely) for agile handling or the standard high-capacity 800 Wh for big days. You have the choice of running a full 29” setup for flat-out speed or the standard mixed 29/27.5” setup to retain plenty of agility. The options don't end there, you can route cables cleanly through the WIRE PORT or semi-externally via headtube ports if you need rapid access.
| Frameset | Lithos CF I ; carbon; 160mm travel; 29" x 2,4" max. tyre size; 148x12mm axle standard, intube; |
|---|---|
| Fork | Rockshox Zeb Select eMTB; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6" max tyre size |
| Brakes | SRAM DB6 stealth - SRAM DB6 stealth; 4 piston caliper with SRAM CenterLine; 220mm rotor - SRAM DB6 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor |
| Tyres | Continental Kryptotal-F; 29x2.4"; folding; TR; Enduro casing; Soft Compound - Continental Kryptotal-R; 27.5x2.4" ; folding; Enduro casing, soft Compound |
| Rear mech | SRAM Eagle 70 Transmission |
| Wheelset | Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5" - - Shimano TC500-B; 15x100mm; 32 spokes; Centerlock - Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock |
| Headset | Acros ICR Merida Integrated neck w/ Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; |
| Shifters | SRAM dropper lever MMX and SRAM Eagle 70 Transmission Shifter |
| Cassette | SRAM CS XS 1270 T-TYPE 10-52 ; 12 speed |
| Chain | SRAM Eagle 70 Flattop Chain |
| Chainset | SRAM Eagle Transmission E-MTB for Bosch; 36 teeth; SRAM S1000 Eagle E-MTB Crank, 160mm all sizes |
| Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
| Seat post | Merida Expert TR II; 34.9mm diameter; 0mm layback; Travel: XS: 125mm - S: 150mm - M: 170mm - L: 200mm - XL: 230mm |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery | 800Wh |
| Rear shock | Rock Shox Vivid Base |
| Tape grips | Merida Comp TR |
