Modern MTB Design

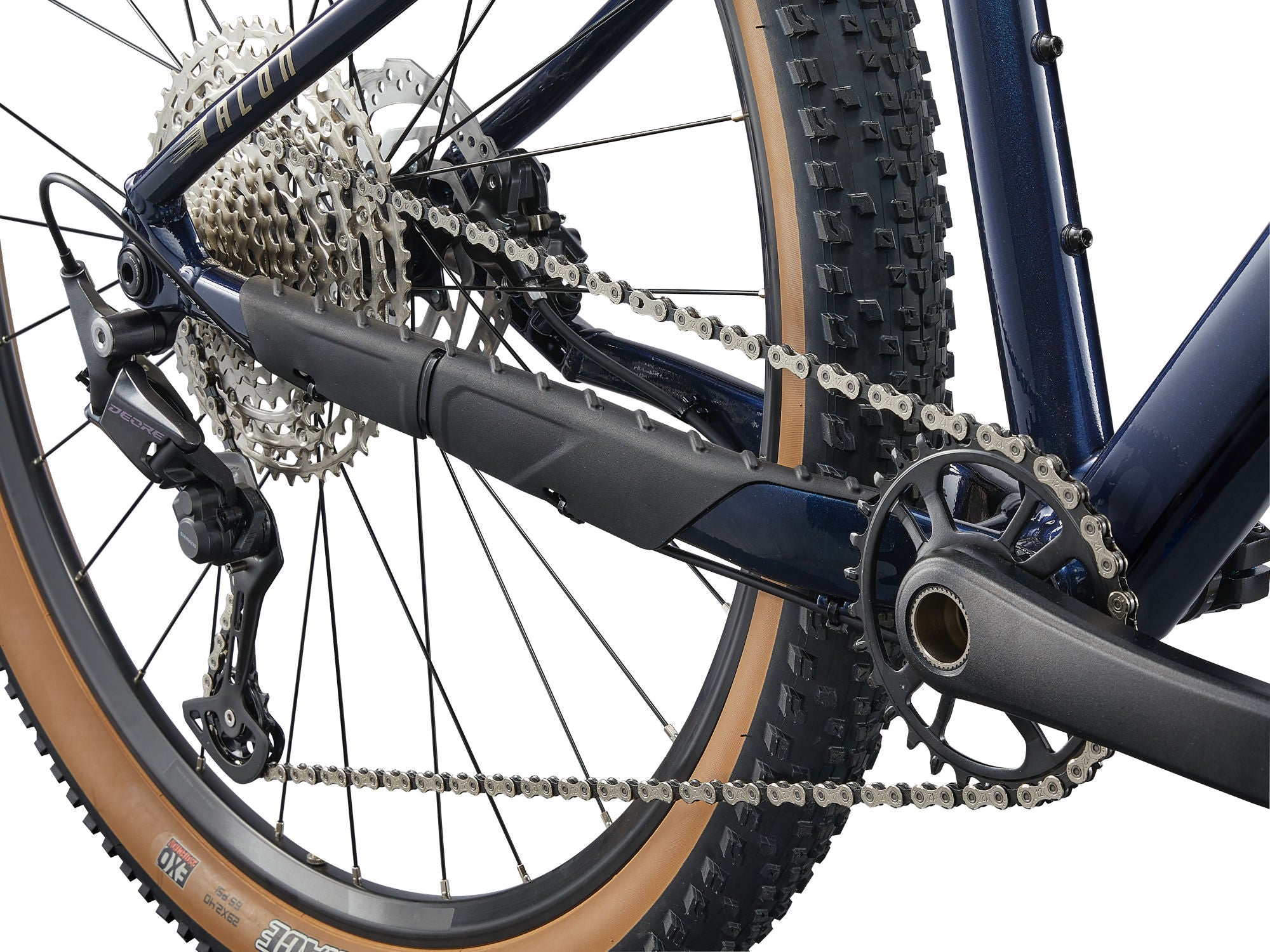

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Frameset | ALUXX-grade aluminium, disc |
---|---|

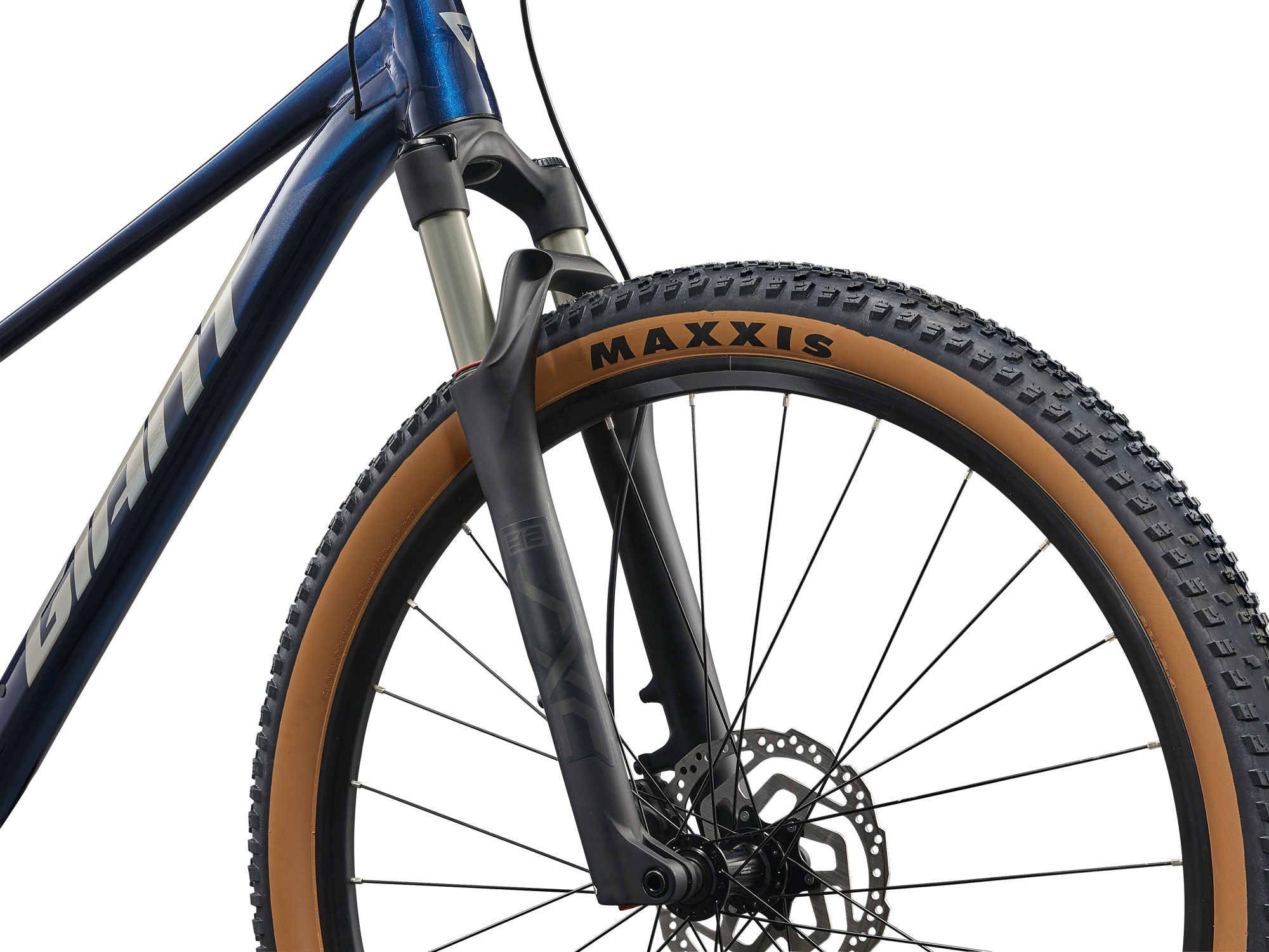

Fork | SXC32-2 RCL, air sprung, hydraulic lockout, tapered aluminium steerer, aluminium stanchions, 15x110 thru axle XS&S: 80mm travel (27.5) M-XXL:100mm travel (29) |
Brakes | Shimano Deore BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
Tyres | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead |
Rear mech | Shimano Deore M6100 |
Wheelset | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
Stem | Giant Sport, 7-degree rise |
Handlebar | Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29) |
Shifters | Shimano Deore M6100, 1x12 |
Cassette | Shimano Deore M6100, 10x51 |
Chain | KMC X12 |
Chainset | ProWheel MPX, 32t (27.5) or 30t (29) |
Bottom bracket | cartridge |
Saddle | Giant ErgoContact Trail |

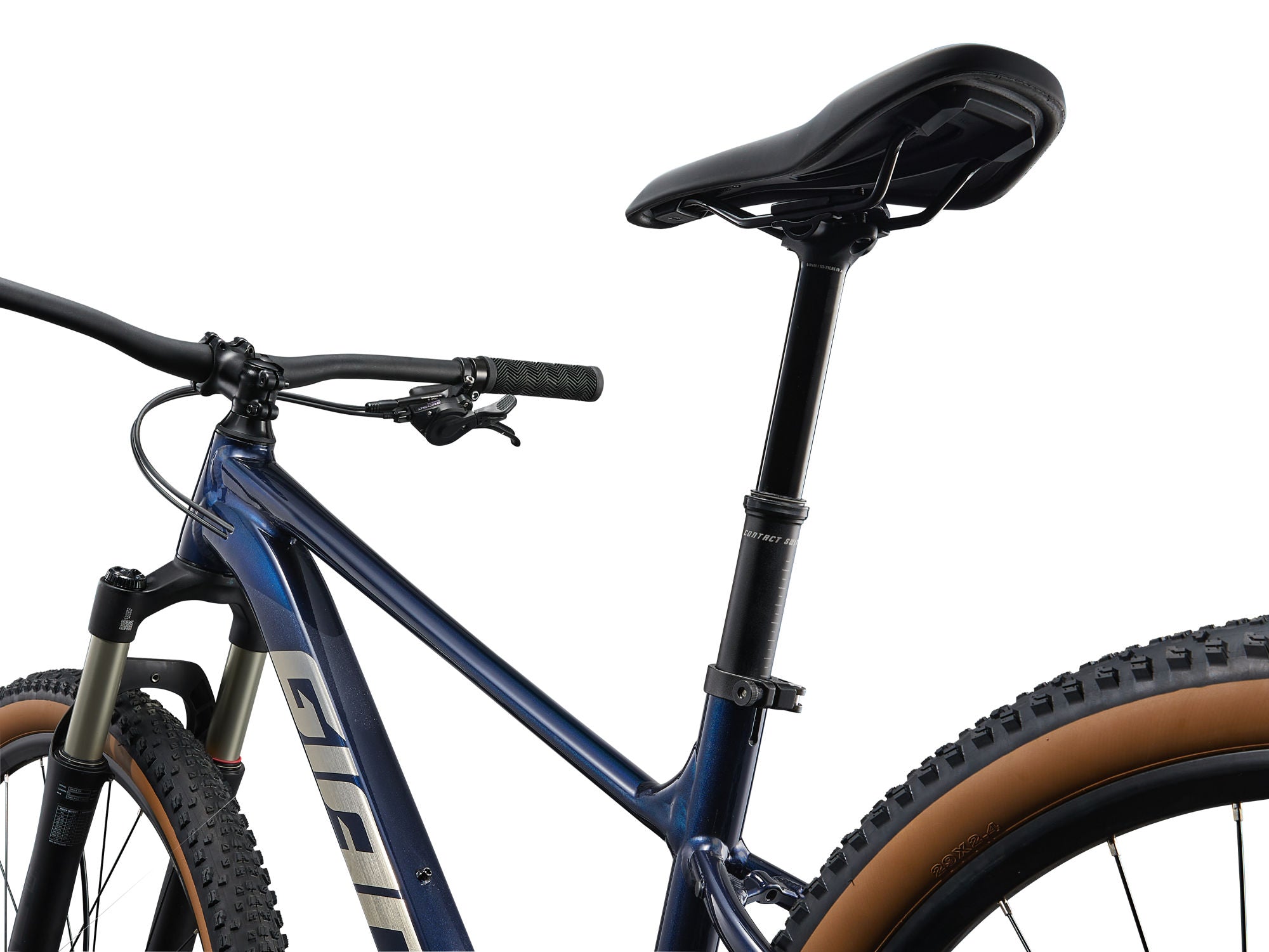

Seat post | Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm (27.5) M-XXL: 120mm drop x 400mm (29) |
