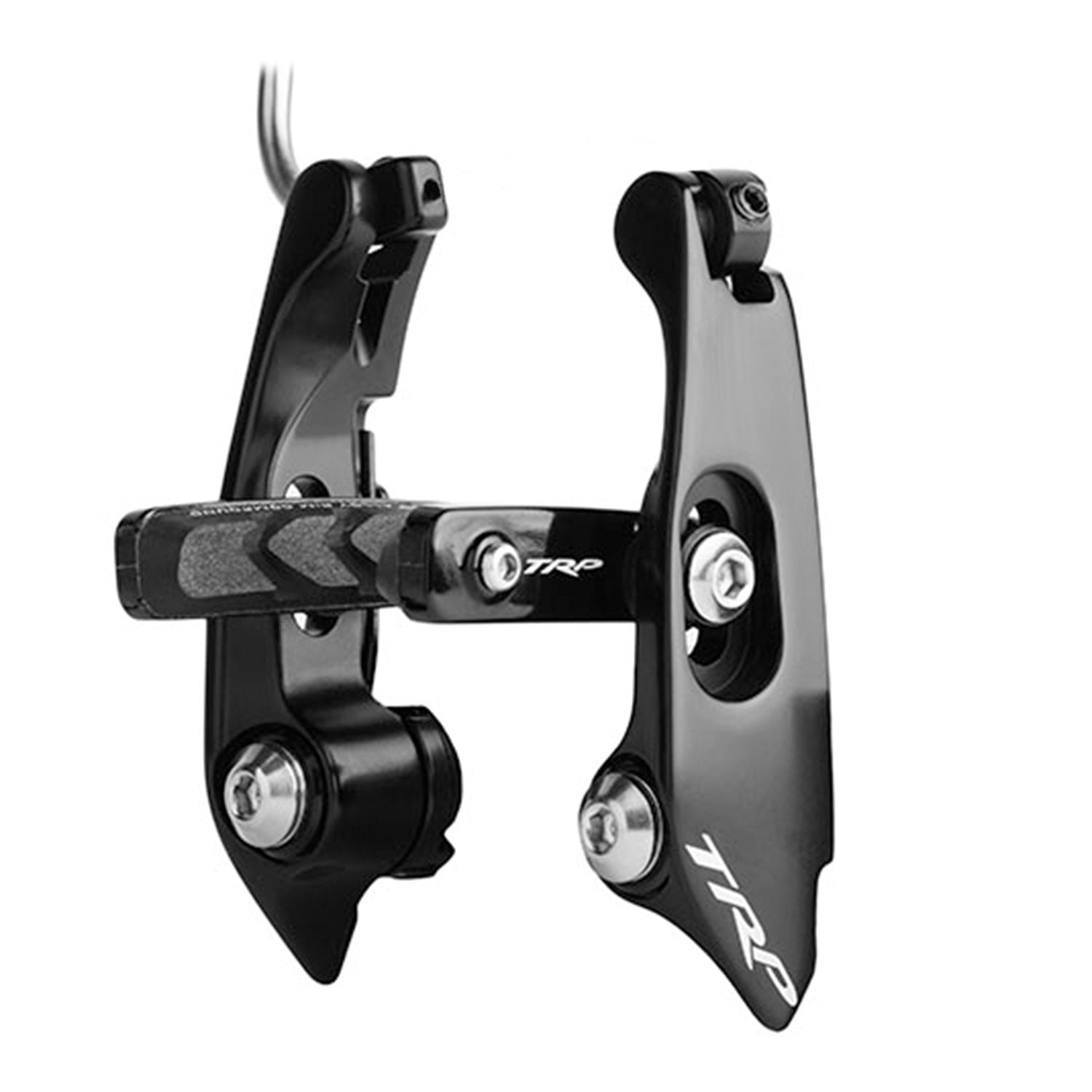

TRP-TTV06-F-K
TRP-TTV09-R-K
€¢ Pivot bolt to brake pad distance of 24.5mm +/-4.5mm.
€¢ Pivot bolt to cable fitting 65mm.
€¢ C-C width of pivot bolts 61mm +/- 1.5mm (for 19-25mm tyres).
€¢ Suited for an axle to centre of pivot bolt fork/frame of 284mm.
€¢ Leverage pull ratio of 2.6 (aero brakes with minimal cable pull).
TRP-TTV-ROAD-F
TRP-TTV-ROAD-R
€¢ Pivot bolt to brake pad distance of 44mm +/-7mm.
€¢ Pivot bolt to cable fitting 78mm.
€¢ C-C width of pivot bolts 58mm +/- 1.5mm (for 21-28mm tyres).
€¢ Suited for an axle to centre of pivot bolt fork/frame of 268mm.
€¢ Leverage pull ratio of 1.8 (standard road pull ratio).
€¢ Locating spring pin is to the top of the frame/fork mount).
€¢ Pivot bolt to brake pad distance of 42mm front and 43mm rear.
€¢ Pivot bolt to cable fitting 76mm.
€¢ C-C width of pivot bolts 55mm +/- 1mm front, 61mm +/- 1mm rear.
€¢ Suited for an axle to centre of pivot bolt fork/frame of 266mm.
€¢ Leverage pull ratio of 1.8 (standard road pull ratio).
